Q-Series
P
D
RODUCT
ESCRIPTION

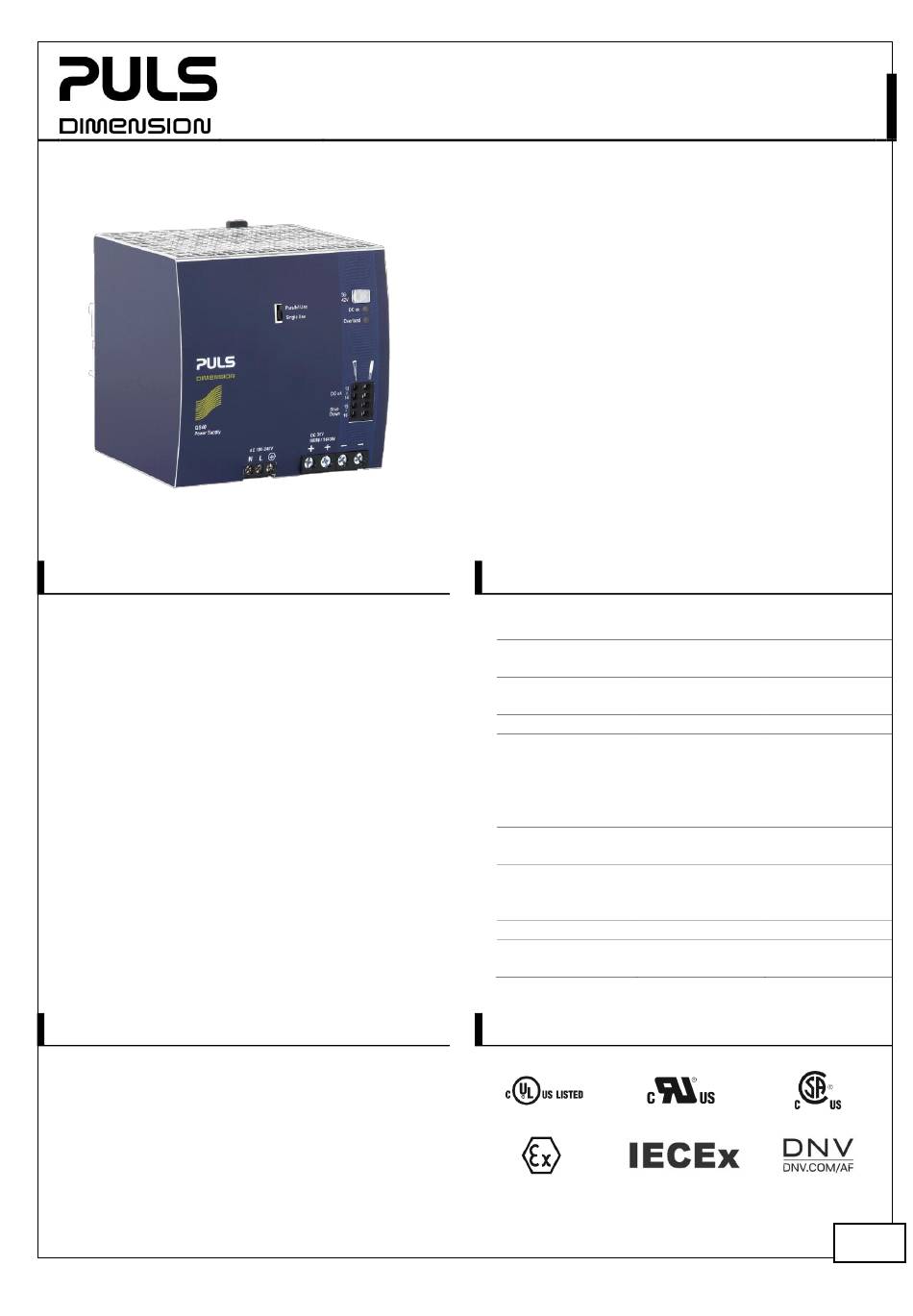

The most outstanding features of this Dimension QS40.361 DIN rail
power supply are the extremely high efficiency and the small size,
which are achieved by a synchronous rectification, a bridgeless PFC
circuit and additional unique design details.
Large power reserves of 150% and built-in large sized output
capacitors support the starting of heavy loads such as DC motors or
capacitive loads. In many cases this allows the use of a unit from a
lower wattage class which saves space and money.
High immunity to transients and power surges as well as low
electromagnetic
emissions
environment possible.
The integrated input fuse as well as the near zero input inrush
current make installation and usage simple. Diagnostics are easy
due to the DC-OK relay, a green DC-OK LED and the red overload
LED.
A large international approval package for a variety of applications
makes this unit suitable for nearly every application.
O
N
RDER
UMBERS
Power Supply
QS40.361
Accessory
ZM2.WALL
YR40.482
Jul. 2023 / Rev. 1.4 DS-QS40.361-EN
All parameters are specified at 36V, 26.7A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
makes
usage
in
nearly
36-42V Standard unit
Wall mount bracket
Redundancy module
www.pulspower.com Phone +49 89 9278 0 Germany
P
S
OWER
UPPLY
▪ AC 100-240V Wide-range Input
▪ Width only 125mm, Weight only 1.9kg
▪ 94.6% Full Load and Excellent Partial Load Efficiencies
▪ 50% BonusPower, 1440W for up to 4s
▪ 70A High Peak Current for 10ms for Easy Fuse Tripping
▪ Safe Hiccup
PLUS
▪ Active PFC (Power Factor Correction)
▪ Negligible Low Input Inrush Current Surge
▪ Full Power Between -25°C and +60°C
▪ Current Sharing Feature for Parallel Use
▪ Internal Data Logging for Troubleshooting Included.
▪ Remote Control of Output Voltage
▪ DC-OK Relay Contact
▪ Shut-down Input
▪ ATEX and IECEx Approved
▪ 3 Year Warranty
S
-
HORT
FORM
Output voltage
Adjustment range
Output current
Output power
Output ripple
Input voltage
Mains frequency
every
AC Input current
Power factor
AC Inrush current
Efficiency
Losses
Temperature range
Derating
Hold-up time
Dimensions
Weight
M
A
AIN
PPROVALS
For details and the complete approval list, see chapter 22.
UL 508
ATEX
QS40.361
36V, 26.7A, S
INGLE
Overload Mode
D
ATA
DC 36V
36 - 42Vdc
26.7 – 22.9A
40 – 34.4A
960W
1440W
< 130mVpp
AC 100-240V
50-60Hz
8.6 / 4.5A
0.99 / 0.99
17 / 11A peak
93.5 / 94.6%
66.7 / 54.8W
-25°C to +70°C
24W/°C
between 85-90Vac see chapter 18
27 / 27ms
125x124x127mm
1900g
UL 60950-1
IECEx
P
I
HASE
NPUT
nominal
continuous
short term (4s)
continuous
short term (4s)
20Hz to 20MHz
-15%/+10%
±6%
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
operational
+60 to +70°C
at 120 / 230Vac
WxHxD
Class I Div 2
Marine
1/30
Advertisement
Table of Contents
Related Manuals for Puls Dimension Q Series
Summary of Contents for Puls Dimension Q Series
- Page 1 QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT OWER UPPLY ▪ AC 100-240V Wide-range Input ▪ Width only 125mm, Weight only 1.9kg ▪ 94.6% Full Load and Excellent Partial Load Efficiencies ▪ 50% BonusPower, 1440W for up to 4s ▪ 70A High Peak Current for 10ms for Easy Fuse Tripping ▪...
-
Page 2: Table Of Contents
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT NDEX Page Page Intended Use ..............3 22. Approved, Fulfilled or Tested Standards ....20 Installation Instructions ..........3 23. Regulatory Product Compliance ........ 21 AC-Input ............... 5 24. Physical Dimensions and Weight ....... 22 Input Inrush Current ............. -
Page 3: Intended Use
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 1. I NTENDED This device is designed for installation in an enclosure and is intended for commercial use, such as in industrial control, process control, monitoring and measurement equipment or the like. Do not use this device in equipment, where malfunctioning may cause severe personal injury or threaten human life without additional appropriate safety devices, that are suited for the end application. - Page 4 QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT The device is designed, tested and approved for branch circuits up to 30A (UL) and 32A (IEC) without additional protection device. If an external fuse is utilized, do not use circuit breakers smaller than 16A B- or C-Characteristic to avoid a nuisance tripping of the circuit breaker.
-
Page 5: Ac-Input
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 3. AC-I NPUT AC input nom. AC 100-240V suitable for TN, TT and IT mains networks AC input range 90-264Vac 85-90Vac < 55°C ambient temperature continuously allowed > 55°C ambient temperature short term or with output derating according Fig. -
Page 6: Input Inrush Current
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 4. I NPUT NRUSH URRENT The power supply is equipped with an active inrush current limitation circuit, which limits the input inrush current after turn-on to a negligible low value. The input current is usually smaller than the steady state input current. AC 100V AC 120V AC 230V... -
Page 7: Output
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 6. O UTPUT Output voltage nom. DC 36V Adjustment range 36-42Vdc guaranteed ****) max. 43Vdc at clockwise end position of potentiometer Factory setting typ. 36.0Vdc ±0.2%, at full load, cold unit, in “single use” mode typ. - Page 8 QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT Fig. 6-1 Output voltage vs. output current in “single use” Fig. 6-2 Output voltage vs. output current in “parallel mode, typ. use” mode, typ. Output Voltage Adjus tment R ange C ontinuous ly available Hiccup S hort-term (4s )
-
Page 9: Hold-Up Time
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 7. H AC 100V AC 120V AC 230V Hold-up Time typ. 54ms 54ms 54ms at 36V, 13.3A, see Fig. 7-1 min. 45ms 45ms 45ms at 36V, 13.3A, see Fig. 7-1 typ. 27ms 27ms 27ms at 36V, 26.7A, see Fig. -
Page 10: Dc-Ok Relay Contact
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 8. DC-OK R ELAY ONTACT This feature monitors the output voltage, which is produced by the power supply itself. It is independent of a back-fed voltage from a unit connected in parallel to the power supply output. Contact closes As soon as the output voltage reaches 90% of the adjusted output voltage. -
Page 11: Remote Control Of Output Voltage
A protected microcontroller inside the power supply acquires and stores operating data during the life of the unit. The data can be downloaded with a small tool and special software by the PULS service and repair personnel, even when the unit is defect. The data allows for better troubleshooting. -
Page 12: Efficiency And Power Losses
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 12. E FFICIENCY AND OWER OSSES AC 100V AC 120V AC 230V Efficiency typ. 93.1% 93.5% 94.6% at 36V, 26.7A Average efficiency typ. 92.6% 92.9% 93.6% 25% at 6.7A, 25% at 13.3A, 25% at 20A. -
Page 13: Lifetime Expectancy And Mtbf
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 13. L MTBF IFETIME XPECTANCY AND AC 100V AC 120V AC 230V Calculated lifetime expectancy 293 000h 303 000h 334 000h at 36V, 13.3A and 25°C 104 000h 107 000h 118 000h at 36V, 13.3A and 40°C 153 000h 156 000h... -
Page 14: Terminals And Wiring
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 15. T ERMINALS AND IRING The terminals are IP20 Finger safe constructed and suitable for field and factory wiring. Input Output DC-OK, Shut-down Type screw terminal screw terminal spring-clamp terminal Solid wire 0.5-6mm 0.5-16mm 0.15-1.5mm... -
Page 15: Front Side And User Elements
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 16. F RONT IDE AND LEMENTS Fig. 16-1 Front side Input Terminals (Screw terminals) N, L Line input ...PE (Protective Earth) input Output Terminals (Screw terminals, two pins per pole) Positive output –... -
Page 16: 17. Emc
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 17. EMC The power supply is suitable for applications in industrial environment as well as in residential, commercial and light industry environment without any restrictions. A detailed EMC report is available on request. EMC Immunity According generic standards: EN 61000-6-1 and EN 61000-6-2 Electrostatic discharge... -
Page 17: Environment
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT Switching Frequencies The power supply has four converters with four different switching frequencies included. One is nearly constant. The others are input voltage and load dependent. Switching frequency 1 105kHz Resonant converter, nearly constant Switching frequency 2 1kHz to 150kHz Boost converter, input voltage and load dependent... -
Page 18: Protection Features
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 19. P ROTECTION EATURES Output protection Electronically protected against overload, no-load and short-circuits Output over-voltage protection typ. 45.5Vdc In case of an internal power supply defect, a redundant circuit max. 48Vdc limits the maximum output voltage. The output shuts down and automatically attempts to restart. -
Page 19: Dielectric Strength
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 21. D IELECTRIC TRENGTH The output voltage is floating and has no ohmic connection to the ground. Type and factory tests are conducted by the manufacturer. Field tests may be conducted in the field using the appropriate test equipment which applies the voltage with a slow ramp (2s up and 2s down). -
Page 20: Approved, Fulfilled Or Tested Standards
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 22. A PPROVED ULFILLED OR ESTED TANDARDS UL 508 UL Certificate Listed equipment for category NMTR - Industrial Control Equipment Applicable for US and Canada E-File: E198865 IEC 61010-2-201 Manufacturer's Declaration Electrical Equipment for Measurement, Control and Laboratory Use - Particular requirements for control equipment IEC 60950-1 CB Scheme Certificate... -
Page 21: Regulatory Product Compliance
The UKCA mark indicates conformity with the UK Statutory Instruments 2016 No.1107, 2016 No.1091, 2012 No.3032 CCC Certificate China Compulsory Certification (CNCA-C23-01:2019) Certificate for devices made in Suzhou/China (PULS Electronics): 2021122303114740 Certificate for devices made in Chomutov/Czech Republic (PULS investiční): 2021122303114741 CCC-Ex Jul. 2023 / Rev. 1.4 DS-QS40.361-EN 21/30 All parameters are specified at 36V, 26.7A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted. -
Page 22: Physical Dimensions And Weight
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 24. P HYSICAL IMENSIONS AND EIGHT Width 125mm Height 124mm Depth 127mm The DIN rail depth must be added to the unit depth to calculate the total required installation depth. Weight 1900g DIN rail Use 35mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm. -
Page 23: Accessories
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 25. A CCESSORIES 25.1. ZM2.WALL - W ALL MOUNTING BRACKET This bracket is used to mount specific DIMENSION units onto a flat surface without utilizing a DIN rail. 25.2. YR40.482 - R EDUNDANCY ODULE The YR40.482 is equipped with two input channels (20A each), which are individually decoupled by utilizing... -
Page 24: Application Notes
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 26. A PPLICATION OTES 26.1. R EPETITIVE ULSE OADING Typically, a load current is not constant and varies over time. This power supply is designed to support loads with a higher short-term power demand (=BonusPower). -
Page 25: Peak Current Capability
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 26.2. P URRENT APABILITY The power supply can deliver peak currents (up to several milliseconds) which are higher than the specified short term currents. This helps to start current demanding loads. Solenoids, contactors and pneumatic modules often have a steady state coil and a pick-up coil. -
Page 26: Charging Of Batteries
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 26.4. C HARGING OF ATTERIES The power supply can be used to charge lead-acid or maintenance free batteries. (Three 12V batteries in series) Instructions for charging batteries: Set output voltage (measured at no load and at the battery end of the cable) very precisely to the end-of-charge voltage. End-of-charge voltage 41.7V 41.25V... -
Page 27: Parallel Use To Increase Output Power
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 26.6. P ARALLEL SE TO NCREASE UTPUT OWER Power supplies from the same series (Q-Series) can be paralleled to increase the output Unit A power. The output voltage shall be adjusted to the same value (±100mV) in “Single use” mode with the same load conditions on all units, or the units can be left with the factory settings. -
Page 28: Series Operation
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 26.8. S ERIES PERATION Unit A Power supplies of the same type can be connected in series for higher output voltages. It is possible to connect as many units in series as needed, providing the sum of the output voltage does not exceed 150Vdc. -
Page 29: Operation On Two Phases
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 26.11. O PERATION ON HASES P ower S upply The power supply can also be used on two-phases of a three-phase-system. Such a internal fus e +10% phase to phase connection is allowed as long as the supplying voltage is below 240V 26.12. -
Page 30: Mounting Orientations
QS40.361 36V, 26.7A, S Q-Series INGLE HASE NPUT 26.13. M OUNTING RIENTATIONS Mounting orientations other than all terminals on the bottom require a reduction in continuous output power or a limitation in the maximum allowed ambient temperature. The amount of reduction influences the lifetime expectancy of the power supply. Therefore, two different derating curves for continuous operation can be found below: Curve A1 Recommended output current.
