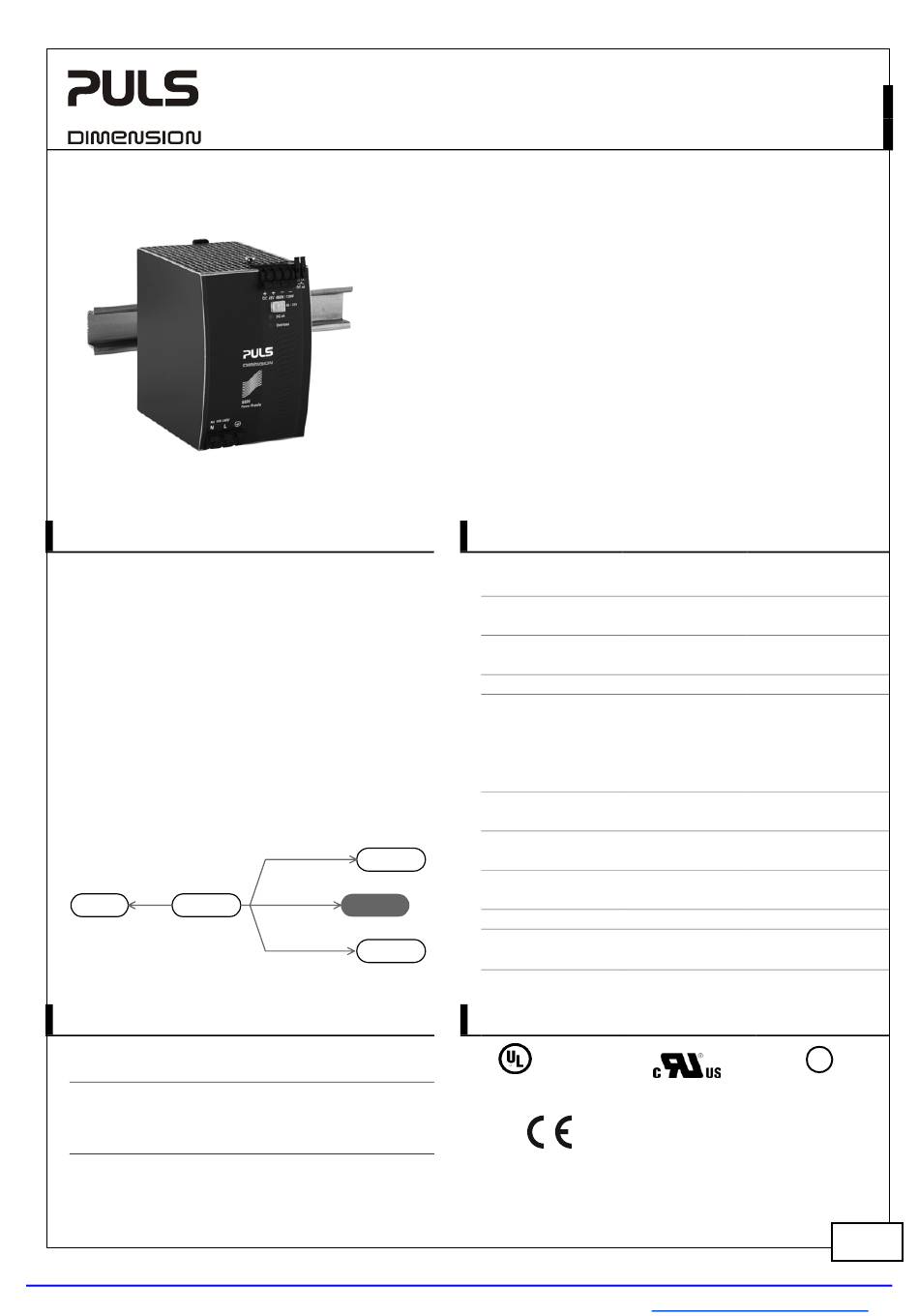

Puls DIMENSION Q-Series Manual

48v, 10a, single phase input
Hide thumbs Also See for DIMENSION Q-Series:
Table of Contents

Advertisement

Quick Links

1. G
D
ENERAL

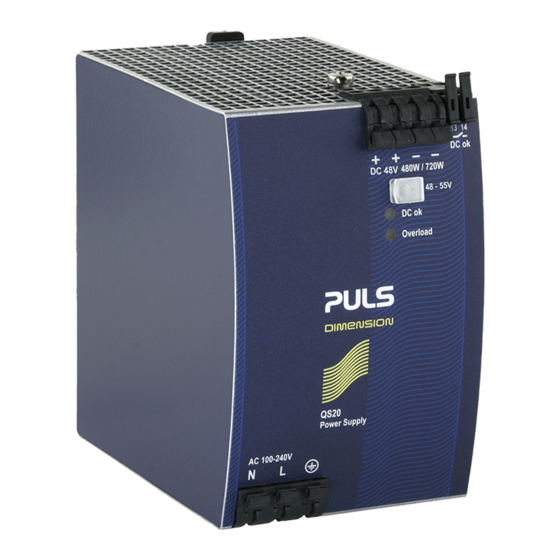

The most outstanding features of this Dimension Q-
Series power supply are the high efficiency and the
small size, which are achieved by a synchronous
rectification and further novel design details.
With short-term power capability of 150% and built-
in large sized output capacitors, these features help
start motors, charge capacitors and absorb reverse
energy. A wide range input voltage design and a
negligible low input inrush current make installation
and usage simple. Diagnostics are easy due to the
DC-ok relay, a green DC-ok and a red overload LED.
Unique quick-connect spring-clamp terminals allow a
safe and fast installation. Many global approvals
make this unit suitable for nearly every situation.
QS20-Series
Related products
Less
QS10.241
QS20.241
Power
3. O
N
RDER
UMBERS
Power Supply
QS20.481
Accessory
ZM1.WALL
ZM15.SIDE
YR2.DIODE
May 2007 / Rev. 1.2 DS-QS20.481-EN
All parameters are specified at 48V, 10A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Snaptec Australia
Q-Series
ESCRIPTION
36V Output
QS20.361
48V Output
QS20.481
only 200-240V
Input, no PFC
QS20.244
48-55V unit
Wall mount bracket
Side mount bracket
Decoupling module
48V, 10A, S
P
S
OWER
UPPLY
■
AC 100-240V Wide-range Input
■
Efficiency up to 94.3%
■
Width only 82mm
■
150% Peak Load Capability
■
Active Power Factor Correction, PFC
■
DC Input from 88 to 375Vdc
■
Short-term Operation from 60Vac to 300Vac
■
Full Power Between -25°C and +60°C
■
Negligibly Low Inrush Current
■
DC-OK Relay Contact
■
Quick-connect Spring-clamp Terminals
2. S
-
HORT
FORM
Output voltage
DC 48V
Adjustment range
48-55V
Output current
10A
15A
Output power
480W
720W
Output ripple
< 100mVpp
Input voltage
AC 100-240V
Mains frequency
50-60Hz
AC Input current
4.56 / 2.48A
Power factor
0.95 / 0.90
AC Inrush current
typ. 9 / 7A peak
DC Input voltage
DC 110-300V
DC Input current
4.7 / 1.7A
Efficiency
92.8 / 94.3%
Losses
37.2 / 29.0W
Temperature range -25°C to +70°C
Derating
12W/°C
Hold-up time
typ. 32 / 51ms
Dimensions
82x124x127mm
4. M
ARKINGS
18WM
LISTED
IND. CONT. EQ.
UL 60950-1
UL 508
EMC, LVD
sales@snaptec.com.au
QS20.481
P
I
INGLE
HASE
NPUT
D
ATA
continuous, 48V
for typ. 4s, 48V
continuous, 48V
for typ. 4s, 48V
20Hz to 20MHz
±15%
±6%
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
-
-20%/+25%
at 110 / 300Vdc
at 120 / 230Vac
at 120 / 230Vac
operational
+60 to +70°C
at 120 / 230Vac
WxHxD
GL
Marine, pending
1/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIMENSION Q-Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Puls DIMENSION Q-Series

Summary of Contents for Puls DIMENSION Q-Series

  • Page 1: General Description

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT OWER UPPLY ■ AC 100-240V Wide-range Input ■ Efficiency up to 94.3% ■ Width only 82mm ■ 150% Peak Load Capability ■ Active Power Factor Correction, PFC ■ DC Input from 88 to 375Vdc ■...

  • Page 2: Table Of Contents

    The information presented in this document is believed to be accurate and reliable and may change without notice. Some parts of this unit are patent by PULS (US patent No 091662,063, Des. 424,529, …). No part of this document may be reproduced or utilized in any form without permission in writing from the publisher.

  • Page 3: Ac-Input

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 5. AC-I NPUT AC input nom. AC 100-240V wide-range input, TN-, TT-, IT-Mains, see Fig. 5-1 AC input range min. 85-276Vac continuous operation min. 60-85Vac full power for 200ms, no damage between 0 and 85Vac min.

  • Page 4: Input Inrush Current

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 6. I NPUT NRUSH URRENT An active inrush limitation circuitry limits the input inrush current after turn-on of the input voltage. The charging current into EMI suppression capacitors is disregarded in the first millisecond after switch-on (EN 61204). AC 100V AC 120V AC 230V...

  • Page 5: Output

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 8. O UTPUT Output voltage nom. Adjustment range min. 48-55V guaranteed, multi turn potentiometer max. at clockwise end position of potentiometer Factory setting 48.0V ±0.2%, at full load, cold unit Line regulation max.
  • Page 6 QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT Fig. 8-1 Output voltage vs. output current, typ. Fig. 8-2 Bonus time vs. output power Output Voltage Short term <5s then auto switching to curve Continuously available Output Output Power Below 40Vdc hiccup mode Current 10 12.5 17.5...

  • Page 7: Hold-Up Time

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 9. H AC 100V AC 120V AC 230V Hold-up Time typ. 32ms 32ms 51ms 10A, 48V, see Fig. 9-1 typ. 64ms 64ms 99ms 5A, 48V, see Fig. 9-1 Fig. 9-1 Hold-up time vs. input voltage Fig.

  • Page 8: Efficiency And Power Losses

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 11. E FFICIENCY AND OWER OSSES AC 100V AC 120V AC 230V Efficiency typ. 92.0% 92.8% 94.3% 10A, 48V Power losses typ. 41.7W 37.2W 29.0W 10A, 48V typ. 9.0W 9.2W 10.0W Fig. 11-1 Efficiency vs. output current at 48V Fig.

  • Page 9: Functional Diagram

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 12. F UNCTIONAL IAGRAM Fig. 12-1 Functional diagram Output Voltage Regulator Input Fuse Input Filter Output Power Filter Converter Input Rectifier Converter Active Inrush Limiter Overload DC-ok Temper- Output Output Output ature Over- Power Voltage...

  • Page 10: Terminals And Wiring

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 14. T ERMINALS AND IRING Type Bi-stable, quick-connect spring clamp terminals. IP20 Finger safe construction. Suitable for field- and factory installation. Shipped in open position. Ferrules allowed, but not required Pull-out force 10AWG:80N, 12AWG:60N, 14AWG:50N, 16AWG:40N (according to UL486E) Power terminals DC-OK-Signal terminals...

  • Page 11: 16. Emc

    Voltage sags SEMI F47 0200 96Vac, 1000ms Criterion A 84Vac, 500ms Criterion A 60Vac, 200ms Criterion A Input voltage swells PULS internal standard 300Vac, 500ms Criterion A Powerful transients VDE 0160 over entire load range 750V, 1.3ms Criterion C Criterions: A: Power supply shows normal operation behavior within the defined limits.

  • Page 12: Environment

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 17. E NVIRONMENT Operational temperature -25°C to +70°C (-13°F to 158°F) reduce output power above +60°C Output de-rating 12W/°C 60-70°C (140°F to 158°F), see Fig. 17-1 Storage temperature -40 to +85°C (-40°F to 185°F) storage and transportation Humidity 5 to 95% r.H.

  • Page 13: Protection Features

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 18. P ROTECTION EATURES Output protection Electronically protected against overload, no-load and short-circuits Output over-current protection Electronically limited See Fig. 8-1 Degree of protection IP 20 EN/IEC 60529 Penetration protection > 3.5mm / >5mm top side / bottom side, e.g.

  • Page 14: Approvals

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 21. A PPROVALS IECEE IEC 60950-1 CB Scheme, Information Technology Equipment CB SCHEME UL 508 LISTED E198865 18WM LISTED Industrial Control Equipment IND. CONT. EQ. UL 60950-1 RECOGNIZED E137006 recognized for the use in U.S.A. (UL 60950- 1) and Canada (C22.2 No.

  • Page 15: Physical Dimensions And Weight

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 24. P HYSICAL IMENSIONS AND EIGHT Weight 1200g / 2.65lb DIN-Rail Use 35mm DIN-rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm. The DIN-rail height must be added to the depth (127mm) to calculate the total required installation depth.

  • Page 16: Installation And Operation Instructions

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 25. I NSTALLATION AND PERATION NSTRUCTIONS Mounting and installation: Output terminal must be located on top and input terminal on the bottom. For other orientations see section 27.14. An appropriate electrical and fire end-product enclosure needs to be considered in the end use application. Cooling: Convection cooled, no forced cooling required.

  • Page 17: Accessory

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 26. A CCESSORY ZM1.WALL Wall mounting bracket This bracket is used to mount Dimension units onto a flat surface without utilizing a DIN-Rail. The two aluminum brackets and the black plastic slider of the unit have to be detached, so that the two steel brackets can be mounted. Fig.

  • Page 18: Application Notes

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 27. A PPLICATION OTES 27.1. R EPETITIVE ULSE OADING Typically, a load current is not constant. It varies over time. For pulse load compatibility, following rules must be met: The pulse power demand must be below 150% of the nominal power. The duration of the pulse power must be shorter than the allowed Bonus Time.

  • Page 19: Peak Current Capability

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 27.2. P URRENT APABILITY Solenoids, contactors and pneumatic modules often have a steady state coil and a pick-up coil. The inrush current demand of the pick-up coil is several times higher than the steady state current and usually exceeds the nominal output current (including the Bonus Power ®...

  • Page 20: Output Circuit Breakers

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 27.5. O UTPUT IRCUIT REAKERS Standard miniature circuit breakers (MCBs) can be used for branch protection. Ensure that the MCB is rated for DC voltage, too. The following tests show which circuit breakers the power supply typically trips. Circuit breakers have huge tolerances in their tripping behavior.

  • Page 21: External Input Protection

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 27.6. E XTERNAL NPUT ROTECTION The unit is tested and approved for branch circuits up to 20A. External protection is only required, if the supplying branch has an ampacity greater than this. In some countries local regulations might apply. Check also local codes and local requirements.

  • Page 22: Daisy-Chaining Of Outputs

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 27.9. D AISY HAINING OF UTPUTS Daisy chaining (jumping from one power supply output to the next) is allowed as long as the max. current through one terminal pin does not continuously exceed 20A. If the current is higher, use a separate distribution terminal. Fig.

  • Page 23: Operation On Two Phases

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 27.12. O PERATION ON HASES Fig. 27-11 Schematic for two phase operation Instructions for two phase operation: Power Supply A phase to phase connection is allowed as long as the +15% supplying voltage is below 240V internal fused Use a fuse or a circuit breaker to protect the N input.

  • Page 24: Mounting Orientations

    QS20.481 48V, 10A, S Q-Series INGLE HASE NPUT 27.14. M OUNTING RIENTATIONS Mounting orientations other than input terminals on the bottom and output on the top require a reduction in continuous output power or a limitation in the max. allowed ambient temperature. The amount of reduction influences the lifetime expectancy of the power supply.
