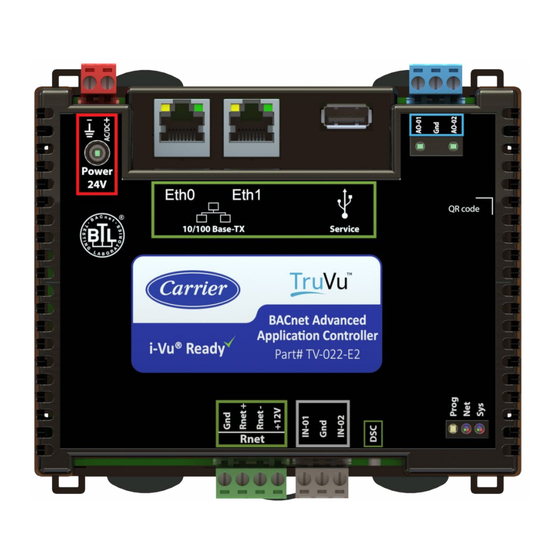

- Page 1 TruVu™ BACnet Advanced Application Controller (part no. TV-022-E2) Installation and Start-Up Guide 11-808-1080-01 ©2024 Carrier. All rights reserved. • Catalog No. 5/22/2024...
- Page 2 Verify that you have the most current version of this document from www.hvacpartners.com, the Carrier Partner Community website, or your local Carrier office. Important changes are listed in Document revision history at the end of this document. ©2024 Carrier. All rights reserved.
-
Page 3: Table Of Contents
Contents What is the TruVu™ BACnet Advanced Application Controller TV-022-E2? ............. 1 Specifications ..............................2 Zone sensors ..............................5 Touchscreen devices ............................. 5 To mount the TV-022-E2 ..........................7 Wiring for power ............................8 To wire for power ............................8 Addressing the TV-022-E2 through the Service port .................. - Page 4 Contents Troubleshooting ............................43 LEDs................................43 To configure custom Prog LED ........................45 To get a Module Status (ModStat) ......................46 Troubleshooting inputs and outputs ......................46 To get a Device Log ............................. 47 To get the TV-022-E2's serial number......................48 To replace the TV-022-E2's fuse .........................
-
Page 5: What Is The Truvu™ Bacnet Advanced Application Controller Tv-022-E2
Rnet port for connecting ZS sensors, an EQT1 or TruVu™ EQT3 Equipment Touch. • USB Service port for connecting locally to controller setup pages, the TruVu™ EQT3 Equipment Touch, or the Carrier wireless service adapter Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. -
Page 6: Specifications
Service port USB 2.0 host port for setting up the controller and troubleshooting through a local connection to a computer, connecting to the TruVu™ interface, or the Carrier wireless service adapter. Universal inputs Inputs are configurable in the control program for 0–5 Vdc, 0–10 Vdc, thermistor, dry contact, or pulse counter. - Page 7 Fire-retardant plastic ABS, UL94-5VA Terminal blocks and Screw-type terminal blocks. connectors 0.2 in (5.08 mm) pitch connectors Mounting 35mm DIN rail mounting or screw mounting Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved.
- Page 8 EN50491-5-2:2009; Part 5-2: EMC requirements for HBES/BACS used in residential, commercial and light industrial environments RoHS Compliant: 2015/863/EU REACH Compliant Australia and New Zealand: C-Tick Mark, AS/NZS 61000-6-3 Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved.
-
Page 9: Zone Sensors
NOTES • This touchscreen device is not powered by the USB port. • The TruVu™ EQT3 requires a 24 Vdc external power source. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. - Page 10 CAUTION A touchscreen device can share a power supply with the Carrier controller if: • The power source shared by the controller and TruVu™ EQT3 Equipment Touch is AC power. • The power source shared by the controller and TruVu™ interface is DC power.
-
Page 11: To Mount The Tv-022-E2
5.88 in. (14.93 cm) dimensions 4.41 in (11.20 cm) Depth: 2.01 in. (5.11 cm) Screw 3.00 in. (7.62 cm) mounting 5.29 in. (13.44 cm) dimensions Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 12: Wiring For Power
The TV-022-E2 is powered by a Class 2 power source. Take appropriate isolation measures when mounting it in a control panel where non-Class 2 circuits are present. • Carrier controllers can share a power supply as long as you: • Maintain the same polarity. -
Page 13: Addressing The Tv-022-E2 Through The Service Port
Carrier i-Vu® XT or TruVu™ devices on a single network and configure them from that page. You can connect the TV-022-E2 to a computer using either the Carrier wireless service adapter or a USB cable. NOTE You cannot access the Service port by plugging an Ethernet cable into Eth0 or Eth1. - Page 14 Navigate to http://local.access or http://169.254.1.1 to see the controller setup pages. See To set up the controller through the Service Port (page 34) for detailed information. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide...
-
Page 15: To Set The Ip Address
On the controller setup Ports tab under IP Port, select Custom Static. Enter the IP Address, Subnet Mask, and Default Gateway addresses given to you by the network administrator. Click Save. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 16: Addressing A Network Of Controllers Using The Controller Setup Local Network Tab
Network tab You can use the controller setup Local Network tab to discover Carrier i-Vu® XT or TruVu™ devices on a single network. You can configure them and assign addresses to each one using one of the methods described below. -
Page 17: Method 2: To Address When You Do Not Know The Serial Numbers
This allows you to identify the device on the controller setup Local Network page. Connect to the Service Port of one Carrier i-Vu® XT or TruVu™ IP device on the network. For details, see Addressing the TV-022-E2 through the Service port (page 8). -
Page 18: Wiring For Communications
Do not exceed the minimum bend radius of the Cat5e or Cat6e Ethernet cable. Refer to Ethernet cable manufacturer specifications for minimum bend radius. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 19: To Connect The Tv-022-E2 To The Ethernet
BACnet Broadcast Management Device (BBMD). Do not configure more than one BBMD per subnet as this may cause circular routes. See "Setting up BACnet Broadcast Management Devices (BBMDs)" in SiteBuilder or i-Vu® Help. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 20: Wiring Devices To The Tv-022-E2'S Rnet Port
NOTES • ZS sensors and one Equipment Touch can share the same Rnet. • The Rnet communicates at a rate of 115.2 kbps. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 21: Wiring Inputs And Outputs
NOTE The PWM output signal is intended to directly control the speed of an ECM-type fan, eliminating the need for an external converter board. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 22: Wiring Specifications
Acceptable voltage drop in the wire from the controller to the controlled device • Resistance (Ohms) of the chosen wire gauge • Maximum current (Amps) the controlled device requires to operate Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 23: To Wire Inputs And Outputs
Connect analog output wiring to the screw terminals on the TV-022-E2 and to the controlled device. Connect the ground wire to the AO outputs' terminals. Turn on the TV-022-E2's power. See Troubleshooting inputs and outputs (page 45). Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 24: To Adjust Input And Output Properties
2–10 Volts Vdc (Min) and 10 Vdc (Max) Thermistor Thermistor Select your Thermistor type or set up and select a Non-Linear, Custom Table Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 25: Output Values
0–10 Vdc actuator so that when the PID signal is 100%, the TV-022-E2 output is 10 Vdc. Similarly, when the PID signal is 50%, the TV-022-E2 output is 5 Vdc. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide... -
Page 26: Resolution Values
When the control program's signal to the microblock is on, if Polarity is set to: normal—output is on reversed—output is off NOTE Regardless of Polarity, the output will be off if the TV-022-E2 loses power. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 27: Downloading The Tv-022-E2
Must be in iVu\drivers. NOTE To verify that you have the driver's latest version, go to the Carrier Partner Community website. Compare the latest version to the TV-022-E2's driver in SiteBuilder. Editable properties... -
Page 28: Adjusting The Tv-022-E2 Driver Properties
30 points in i-Vu®, you would see: Integration points capacity: 400 Integration points requested: 350 Integration points active: 320 Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. - Page 29 Disable Eth1 Port Disable Eth1 Port Check this box to disable the Eth1 port. Debug Enable Debug Messages Enable only if directed by Carrier Technical Support. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide...
-
Page 30: Device
Restore Displays time of the last restore. Click button to restore the most recent backup of the controller's control programs, properties, and schedules. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 31: Notification Classes
The first row in this list is the i-Vu® application. Do not delete this row. Click Add if you want other BACnet devices to receive alarms associated with this Notification Class. Recipient Description Name that appears in the Recipients table. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 32: Calendars
Control Program • Duplicate Address NOTE To set up alarm actions for controller generated alarms, see “Setting up alarm actions” in the i-Vu® Help. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 33: Specific Events
Clear these checkboxes to disable Alarm or Return to normal messages of this type from this controller. Notification Class Do not change this field. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 34: Custom Translation Tables
IP addresses that you define. These can be all private IP addresses and/or a list of IP addresses. Follow the instructions in the i-Vu® interface to set up the BACnet firewall. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide... -
Page 35: Network Diagnostics - Statistics
Whitelist Rejections (if BACnet Firewall (page 30) is enabled)—Messages blocked by the BACnet Firewall because the IP address that sent the message was not in the whitelist. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 36: Network Diagnostics - Packet Capture
Transmit Errors (total)—All errors related to transmitted packets such as aborted errors, carrier errors, dropped errors, FIFO errors, heartbeat errors, and window errors. Dropped Packets—Packets dropped by the TV-022-E2's Ethernet interface. -
Page 37: Communication Status
How the graph looks on the trend's Configure tab. • How you want trend samples to be collected on the Enable/Disable tab. See table below. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. - Page 38 System Options > System days Settings > General tab. Select the second option to set a value for this trend only. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved.
-
Page 39: To Set Up The Controller Through The Service Port
To set up the controller through the Service port You can communicate with the TV-022-E2 through a web browser by connecting a computer to the controller's Service Port using either the Carrier® wireless service adapter or a USB cable. NOTES •... -
Page 40: Device Tab
BACnet Object Device Instance Autogenerated—The Device Instance is automatically set to a number using the IP Address, Subnet information, and the Carrier® vendor ID 16. Assigned—Lets you enter a specific number that is unique on the BACnet network. Device Name Autogenerated—The Device Name is automatically set as the word... -
Page 41: Ports Tab
BACnet tab BACnet Network Number • Autogenerated – The Network Number is automatically set to a number using the Carrier vendor ID 16. • Assigned – Lets you enter a specific number that is unique on the BACnet network. Eth0/Eth1 Port NOTE The TV-022-E2 can be configured for only one BACnet communication type. -
Page 42: Security Tab
Settings tab > Local Network Configuration. Check Allow Local Network Configuration from other devices on the local network for 24 hours and click Accept. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. - Page 43 Serial# The discovered devices are in order by serial number. NOTE To change how the rows are sorted, click a different column heading. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved.
- Page 44 Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide...
- Page 45 The IP address, subnet mask, and default gateway fields are blank in the Ports and Local Network tabs. You can configure it in the Local Devices table. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide...
-
Page 46: To Communicate Through The Bacnet/Service Port Network
To communicate through the BACnet/USB Service port network You can communicate with the TV-022-E2 Service Port through Field Assistant using either the Carrier wireless service adapter or a USB cable. See Addressing the TV-022-E2 through the USB Service Port (page 8) to set up your connection to the web browser if you haven't already. -
Page 47: Troubleshooting
Controller is the only device on the No other devices 3 blink Blue cable is connected network detected on MSTP properly • Check that baud rate is correct Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. - Page 48 Download the controller Green Fast blink Installation of recently downloaded No action required Green driver is occurring Controller is starting up No action required Blue Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved.
-
Page 49: To Configure Custom Prog Led
2-second delay LED will blink the number of times given in the BAO with ON pulse 0.5 seconds and OFF pulse 0.5 seconds. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 50: To Get A Module Status (Modstat)
On the Details tab, scroll down to see the Reliability field under BACnet Configuration. Anything other than No Fault Detected indicates an error. See the table below to determine the error and possible actions to take. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 51: To Get A Device Log
To get a Device Log If Carrier Technical Support instructs you to get the controller's Device Log containing diagnostic information for troubleshooting: Select the TV-022-E2 in the i-Vu® Navigation tree. On the Properties page, click Device Log. -
Page 52: To Get The Tv-022-E2'S Serial Number
Remove the cover from its base. The fuse labeled F1 is located near the power connector. Use a fuse puller to remove the fuse. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 53: To Take The Tv-022-E2 Out Of Service
If needed for troubleshooting or start-up, you can stop communication between the i-Vu® application and the TV- 022-E2. Select the TV-022-E2 in the i-Vu® Navigation tree.. On the Properties page, check Out of Service. Click Accept. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 54: To Revert To Default Settings
Copy the newest driver and archive file to the root directory of a FAT32-formatted USB flash drive. NOTE To verify that you have the latest files, go to the Carrier Partner Community website. Compare the latest version to the TV-022-E2's driver in i-Vu®. -
Page 55: Compliance
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 56: Bacnet Compliance
Compliance of listed products to requirements of ASHRAE Standard 135 is the responsibility of BACnet International. BTL ® is a registered trademark of BACnet International. Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. -
Page 57: Appendix - Module Status Field Descriptions
If the watchdog firmware detects a problem, it restarts the application firmware. H/W Watchdog H/W Watchdog will restart the controller if it detects a severe problem with the timeouts controller's operating system Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. - Page 58 See NOTE below this table. Core and Base board hardware Gives the following information about the controller's boards: • Type and board numbers that are used internally by Carrier. • The manufacture date and serial number. Number of BACnet Objects The number of BACnet objects that were created in the device and the number of those objects that are network visible.
-
Page 59: Document Revision History
Important changes to this document are listed below. Minor changes such as typographical or formatting errors are not listed. Date Topic Change description Code* No changes yet * For internal use only Controller (part no. TV-022-E2) Carrier Proprietary and Confidential ©2024 Carrier. Installation and Start-Up Guide All rights reserved. - Page 60 Carrier ©2024 · Catalog No. 11-808-1080-01 · 5/22/2024...
