Power Fist 9032848 User Manual

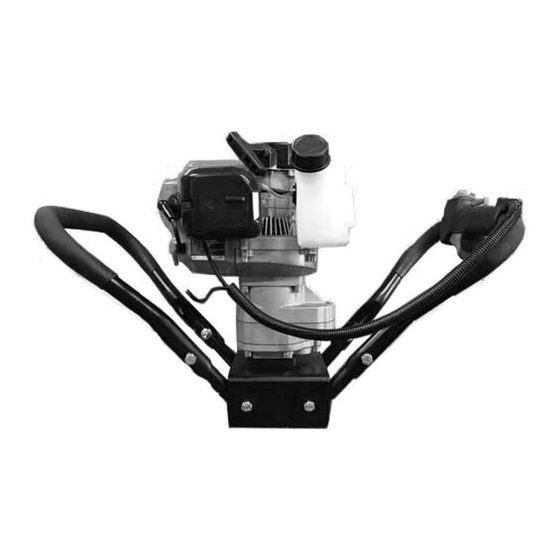

43cc earth auger with 8 in. bit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

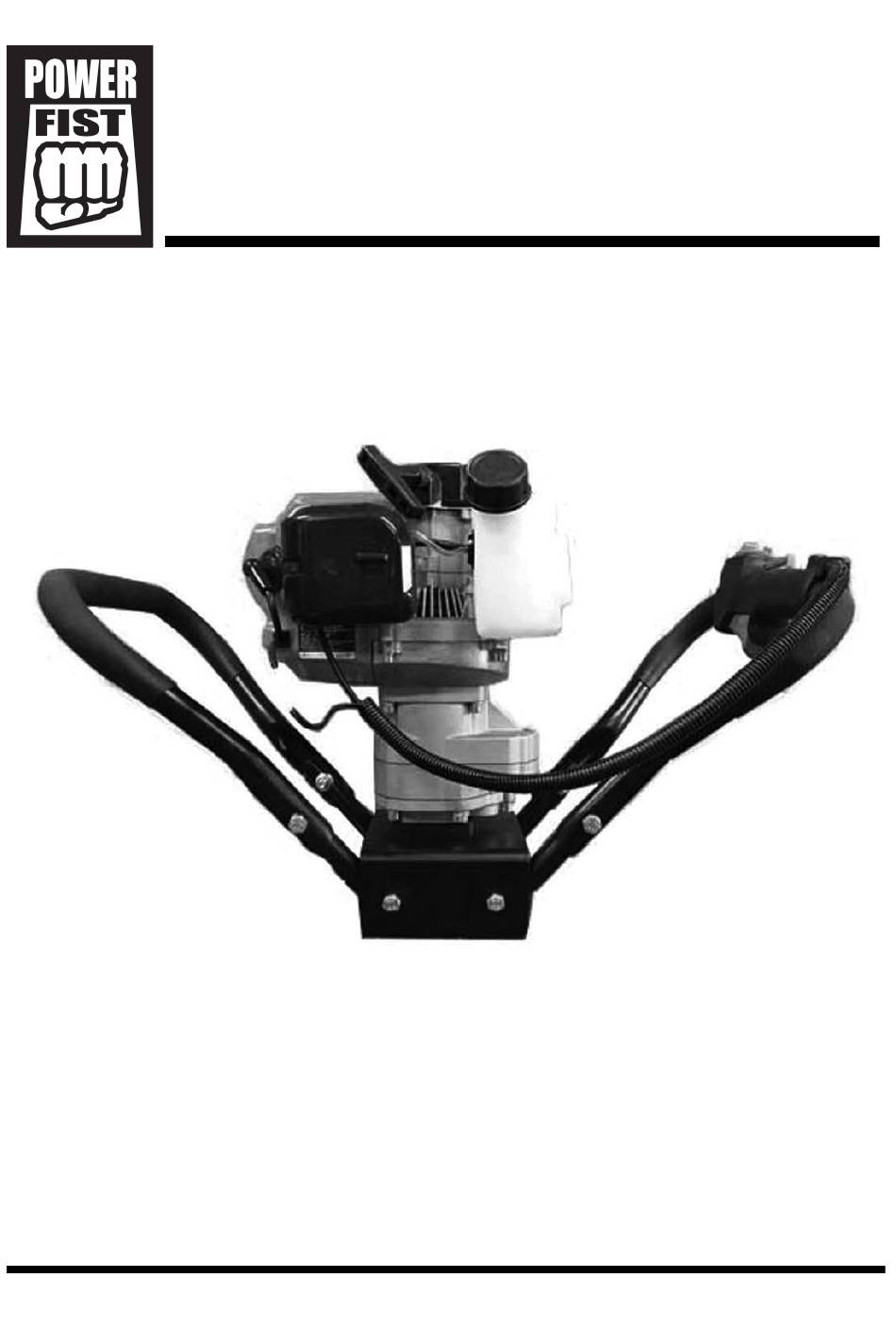

V4.1
43cc Earth Auger
with 8 in. Bit
Please read and understand all instructions before use. Retain this manual for
future reference.
User Manual
9032848

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9032848 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Power Fist 9032848

Summary of Contents for Power Fist 9032848

  • Page 1 V4.1 9032848 43cc Earth Auger with 8 in. Bit User Manual Please read and understand all instructions before use. Retain this manual for future reference.

  • Page 2: Specifications

    9032848 43cc Earth Auger with 8 in. Bit V4.1 43cc Earth Auger with 8 in. Bit SPECIFICATIONS Diameter 8 in. Length 29 in. Shank diameter 7/8 in. Rotation 7,500 RPM Engine type Single cylinder, air cooling, 2-stroke, gasoline Engine displacement 42.7cc...

  • Page 3: Hazard Definitions

    V4.1 43cc Earth Auger with 8 in. Bit 9032848 INTRODUCTION This auger is perfect for all your digging applications, such as fencing, tree planting, deck-building, post-hole digging projects and more. It features a powerful 43cc 2-cycle engine, an alloy gear with ball-bearing transmission, welded-steel handlebars, a breakaway clutch and shock-absorbing spring and includes a hardened blade and fishtail-point design.

  • Page 4: Work Area

    9032848 43cc Earth Auger with 8 in. Bit V4.1 WORK AREA Operate in a safe work environment. Keep your work area clean, well-lit and free of distractions. Place lights so you are not working in a shadow. Keep anyone not wearing the appropriate safety equipment away from the work area.
  • Page 5 V4.1 43cc Earth Auger with 8 in. Bit 9032848 Do not wear gloves when operating a tool that can snag the material and pull the hand into the tool. Wear protective clothing designed for the work environment and tool. Non-skid footwear is recommended to maintain footing and balance in the work environment.

  • Page 6: Specific Safety Precautions

    9032848 43cc Earth Auger with 8 in. Bit V4.1 SPECIFIC SAFETY PRECAUTIONS WARNING! DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to the tool safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.
  • Page 7 V4.1 43cc Earth Auger with 8 in. Bit 9032848 17. Never leave the tool running while unattended. 18. Never lift or operate the tool above your head. FUEL PRECAUTIONS WARNING! Gasoline is extremely flammable. Use extreme caution when handling gasoline or fuel mix. Do not smoke or bring any fire or flame near the fuel or the tool.
  • Page 8 9032848 43cc Earth Auger with 8 in. Bit V4.1 Take frequent breaks Monitor the condition of your hands and fingers frequently. The above precautions do not guarantee you will not experience white-finger disease or carpel tunnel Fig. 4 syndrome. If this occurs, seek medical attention immediately.

  • Page 9: Assembly And Installation

    V4.1 43cc Earth Auger with 8 in. Bit 9032848 ASSEMBLY & INSTALLATION Numbered references in parenthesis (#1) refer to the included Parts List. Letter references in parenthesis (A) refer to the included Identification Key. Dashed numbers in parenthesis (Fig. 1-1) refer to a specific point in an illustration or image.

  • Page 10: Care And Maintenance

    9032848 43cc Earth Auger with 8 in. Bit V4.1 Operation of the tool should be limited to no more than 1 hour continuously. Once operation is complete, place the accelerator control switch to the lowest position. 10. Turn off machine with the stop button.

  • Page 11: Spark Plug

    V4.1 43cc Earth Auger with 8 in. Bit 9032848 SPARK PLUG Scrape the carbon from the spark plug gap. The gap on this tool measures .023 x 0.28 in. (Fig. 6-1). Clean the cylinder exhaust port and muffler. Inspect carefully for any fuel, grease or oil leaks.

  • Page 12: Troubleshooting

    9032848 43cc Earth Auger with 8 in. Bit V4.1 TROUBLESHOOTING Visit a Princess Auto Ltd. location for a solution if the tool does not function properly or parts are missing. If unable to do so, have a qualified technician service the tool.
  • Page 13 V4.1 43cc Earth Auger with 8 in. Bit 9032848 Smoke is thin, 1. Muffler is dirty with oily 1. Clean muffler carburetor deposits spout backward Compress press 1. Malfunction of piston 1. Replace shorts out and/or piston ring Engine leak 1.

  • Page 14: Parts Breakdown

    9032848 43cc Earth Auger with 8 in. Bit V4.1 PARTS BREAKDOWN For technical questions call 1-800-665-8685...

  • Page 15: Parts List

    V4.1 43cc Earth Auger with 8 in. Bit 9032848 PARTS LIST DESCRIPTION PART ID Screw 1E36FE.9-3 Ratchet 1E36FE.9-4 Starter rope reel 1E36FE.9-1 Starter rope 1E36FE.9-5 Recoil spring 1E36FE.9-7 Starter cover assembly 1E36FE.9-8 Screw M5 x 20 GB9074.4 Starter handle 1E40FP-3Z.4-2 Ring 1E40FP-3Z.4-10...
  • Page 16 9032848 43cc Earth Auger with 8 in. Bit V4.1 Cord comp. 1E36F-2A.8-HP Bolt M5 x 20 GB70 + GB93 + GB97 Washer B 1E36F-3 Spring 1E36F-E.6B-1 Expander 1E36F-E.6B Washer 1E40F-5-11 Screw pin P40-18 Fan cover 1E404-5-9 Oil seal 1E40F-5.9 Screw M5 x 25...
  • Page 17 V4.1 43cc Earth Auger with 8 in. Bit 9032848 Admitting pipe HA46.9 Gasket 1E40-5A-1 Carburetor 1E40F-2E.1A 65-1 Thimble 65-2 Main needle 65-3 Screw 65-4 Screw M3 x 10 GB/T823 65-5 Swivel 65-6 Ring 3.5 GB896 65-7 Turn frame 65-8 Airproof ring...
  • Page 18 9032848 43cc Earth Auger with 8 in. Bit V4.1 Nut M4 GB/T6170 Cleaner inside cover 1E34F.1.1 Screw M5 x 20 GB70.1 + GB97 Choker 1E34F.1-3 Screw ST4. 2 x 12 GB/T845 Filter net 1E34F.1-1 Cleaner outside cover 1E36F-E.7-1 Screw 1E34F.1.2...
  • Page 19 V4.1 43cc Earth Auger with 8 in. Bit 9032848 DESCRIPTION PART ID Gear box 3WT-300.1 Clutch drum comp 3WT-300.1.1 Vent plug 3WT-300.1-4 Wheel box 3WT-300.1-1 Fuel cup M6 GB/T1152 Bearing 6002-2RS/P5 GB/T276 Bushing 6MF-30.1-14 Stop ring 32 GB/T893.1 Stop ring 15 GB/T894.1...
  • Page 20 9032848 43cc Earth Auger with 8 in. Bit V4.1 Gear 3WT-300.1-5 JB/T7757.2 Gear shaft 3WT-300.1-6 Gasket 3WT-300.1-9 Wheel box 3WT-300.1-2 Screw M6 x 30 GB/T70.1 +GB/T93 + GB/T97.1 Bearing 6004-2RS/P5 GB/T276 Gear 3WT-300.1-7 JB/T7757.2 Shaft 3WT-300.1-8 Gasket 3WT-300.1-10 Bearing 6000-2RS/P5...
  • Page 21 V4.1 43cc Earth Auger with 8 in. Bit 9032848 Cable comp. SG230.1.1 Throttle lever SG230.1-6 Spring SG230.1-6 Stop switch SG230.1.2-3 Guide seat SG230.1.2-2 Stop line SG230.1.2.1 Touch reed SG230.1.2-1 Screw ST2.9 x 13 GB/T845 Tube SG230.1-3 Box, left SG230.1-2 Visit www.princessauto.com for more information...
  • Page 22 9032848 43cc Earth Auger with 8 in. Bit V4.1 For technical questions call 1-800-665-8685...
  • Page 23 V4.1 43cc Earth Auger with 8 in. Bit 9032848 Visit www.princessauto.com for more information...
  • Page 24 9032848 43cc Earth Auger with 8 in. Bit V4.1 For technical questions call 1-800-665-8685...
