Summary of Contents for Huidu Technology HD-VP630

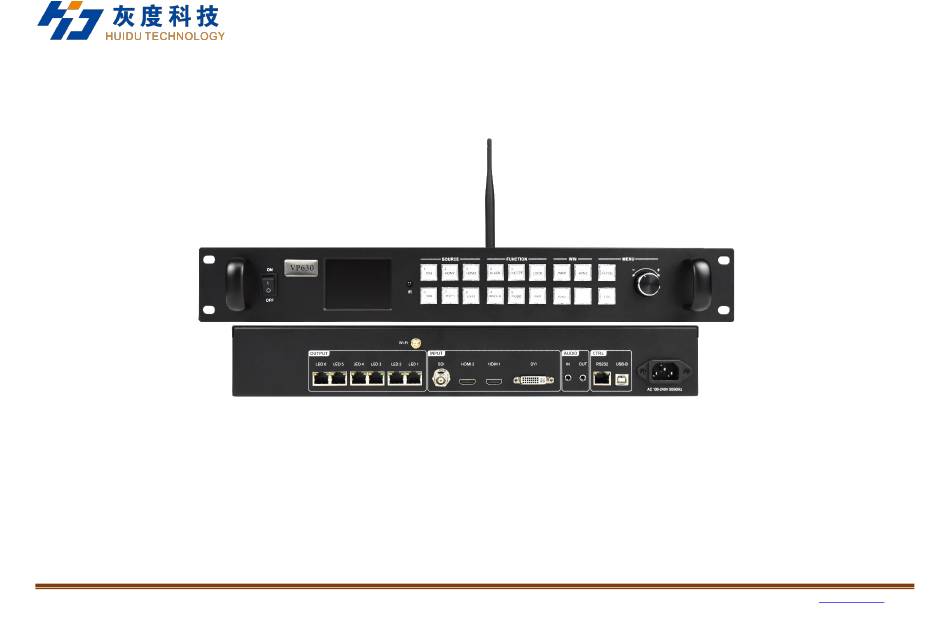

- Page 1 User Manual Shenzhen Huidu Technology Company www.huidu.cn...
- Page 2 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 3: Table Of Contents
1.1 Front panel ..........................1 1.2 Rear Panel ..........................4 1.3 Hardware connection ........................ 7 Chapter 2 HDSet installation ........................9 Chapter 3 HD-VP630 Parameter settings ....................11 3.1 Connection ..........................11 3.2 Screen Configuration ....................... 11 Chapter 4 HD-VP630 Product Operation ....................15 4.1 Interface Description ....................... - Page 4 4.6 Capture ............................ 19 4.7 Template setting ........................21 4.8 Settings ............................ 21 4.8.1 Input resolution ..........................21 4.8.2 Other setting ..........................22 4.8.3 Test chart ............................23 4.8.4 Key lock ............................24 4.8.5 Factory setting ..........................25 Shenzhen Huidu Technology Company www.huidu.cn...
- Page 5 1. Language ........................... 25 2. Factory reset ..........................26 3. Firmware version ........................26 Shenzhen Huidu Technology Company www.huidu.cn...
- Page 6 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 7: Chapter 1 Interface Connection
Chapter 1 Interface connection 1.1 Front panel Key Description Description Shenzhen Huidu Technology Company www.huidu.cn... - Page 8 FUNCTION BLACK: when you press BLACK and its indicator will be on, the output screen will be in a black state. BRIGHT: Quickly swap out the shortcut keys of the brightness Shenzhen Huidu Technology Company www.huidu.cn...
- Page 9 Short press the knob [OK] key: it means to enter the main menu or input confirmation. Turn the knob clockwise to increase or the next option, MENU counterclockwise to decrease or the previous option. GUIDE: can quickly switch out the "smart navigation" setting interface. Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 10: Rear Panel
Return key ESC: means to exit the current operation or option. 1.2 Rear Panel Input interface Name quantity Description HDMI input interface HDMI Interface form: HDMI-A Shenzhen Huidu Technology Company www.huidu.cn... - Page 11 Interface form: DVI-I socket Signal standard: DVI1.0 Resolution: VESA standard, PC to 1920x1200, HD to 1080p Interface form: BNC Signal standard: SD-SDI,HD-SDI,3G-SDI Resolution: VESA standard, ≤1920x1080@60Hz AUDIO IN TRS 3.5mm audio input Power AC power interface 100-240V，50/60Hz Shenzhen Huidu Technology Company www.huidu.cn...
- Page 12 LAN output cards, transmitting RGB data stream. One Gigabit Ethernet port support loading capacity 655,360 pixels. TRS 3.5mm dual channel audio output port AUDIO OUT Connect audio power amplifier for high-power audio external amplifier Control interface Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 13: Hardware Connection
Name quantity Description USB-B Connect to the PC, used for debug LED controller RS232 Connect central control equipment for centralized control Wi-Fi Connect to Wi-Fi antenna to enhance wireless signal 1.3 Hardware connection Shenzhen Huidu Technology Company www.huidu.cn... - Page 14 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 15: Chapter 2 Hdset Installation
Please download the installation package of HDSet software from Huidu’s official website www.huidu.cn, and complete the installation according to the diagrams below: 1.Run the software package,then select language for installer. Click [OK] to go on. Shenzhen Huidu Technology Company www.huidu.cn... - Page 16 2.After selecting a language, an installation wizard like below will appear.Click [Next]. Choose the installation location, click [Browse] to change the default target location,then click [Install] after completing; After the installation is complete,you are ready to use HDSet. Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 17: Chapter 3 Hd-Vp630 Parameter Settings
Chapter 3 HD-VP630 Parameter settings 3.1 Connection Connect the VP630 to the computer by USB-B type cable. 3.2 Screen Configuration 1. Run HDset software,then select device and process, click [Screen Configuration]. Shenzhen Huidu Technology Company www.huidu.cn... - Page 18 2. you can debug receiving cards. Shenzhen Huidu Technology Company www.huidu.cn...
- Page 19 Shenzhen Huidu Technology Company www.huidu.cn...
- Page 20 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 21: Chapter 4 Hd-Vp630 Product Operation
Chapter 4 HD-VP630 Product Operation 4.1 Interface Description 1． Input source for Windows，input resolution and refresh rate. 2． LED Network port, display the number of network ports currently in use. 3． Output resolution, output to screen resolution. 4． Brightness, Volume,the screen brightness, you can adjust the brightness by the following steps. -
Page 22: Input Source Switching
The HD-VP620 supports simultaneous access to five signal sources, and can switch to the input source that needs to be played at any time as required. You can quickly switch by pressing the key in the "SOURCE" area of the front panel. 4.3 Net 4.3.1 Output Shenzhen Huidu Technology Company www.huidu.cn... -
Page 23: Input Seting
Y: Vertical start: setting parameter range = LED screen height-vertical height; 4.3.2 Input seting The connection relationship is set as the connection relationship processing of the receiving card. Currently, only standard general mode is supported, and complex connection relationships are not supported. Shenzhen Huidu Technology Company www.huidu.cn... -
Page 24: Screen Layout
The screen switch setting of screen 1 cannot be set to off. Horizontal starting value + horizontal width cannot exceed the width of the LED screen. The vertical starting value + vertical width cannot exceed the height of the LED screen. 4.5 Effect Shenzhen Huidu Technology Company www.huidu.cn... -
Page 25: Capture
Brightness: 0-100 default 50 Sharpness: 0-10, default 5 Contrast: 0-100, default 100 Saturation: 0-100, default 50 Color temperature: warmer, natural, colder, customize. Default: Warmer 4.6 Capture Shenzhen Huidu Technology Company www.huidu.cn... - Page 26 X: Horizontal start: horizontal start value range = input source width-interception width Y: Vertical start: vertical start value range = input source width-interception width. Note: If the size of the captured screen is the same as the screen size, it will be displayed point-to-point. If Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 27: Template Setting
You can save up to 8 templates. ‘★’ mean this teamplate is already occupied. Existing templates support replacement, deletion, and loading non-existent template option, supports saving up to 8 template files 4.8 Settings 4.8.1 Input resolution Shenzhen Huidu Technology Company www.huidu.cn... -
Page 28: Other Setting
Supports three sets of general resolutions and supports custom resolution settings. The default is 60Hz. 4.8.2 Other setting Shenzhen Huidu Technology Company www.huidu.cn... -
Page 29: Test Chart
Support turning on and off the sound, and volume adjustment. Support turning on and off the WiFi. 4.8.3 Test chart Shenzhen Huidu Technology Company www.huidu.cn... -
Page 30: Key Lock
Support testing the color display. 4.8.4 Key lock Shenzhen Huidu Technology Company www.huidu.cn... -
Page 31: Factory Setting
“LOCK” will light up, you can press the “LOCK” button to unlock. 4.8.5 Factory setting 1. Language Shenzhen Huidu Technology Company www.huidu.cn... - Page 32 Language selection: support English, Chinese. 2. Factory reset Restore the device to factory settings. 3. Firmware version Shenzhen Huidu Technology Company www.huidu.cn...
- Page 33 Check the device’s MCU, DSP ,FPGA and Wi-Fi version. Shenzhen Huidu Technology Company www.huidu.cn...
