Huidu Technology HD-VP1240 Spec And User Manual

2 in 1 video processor

Advertisement

Quick Links

Spec and User Manual
2 in 1 Video processor HD-VP1240/1640
V1.0 20211020

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD-VP1240 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Huidu Technology HD-VP1240

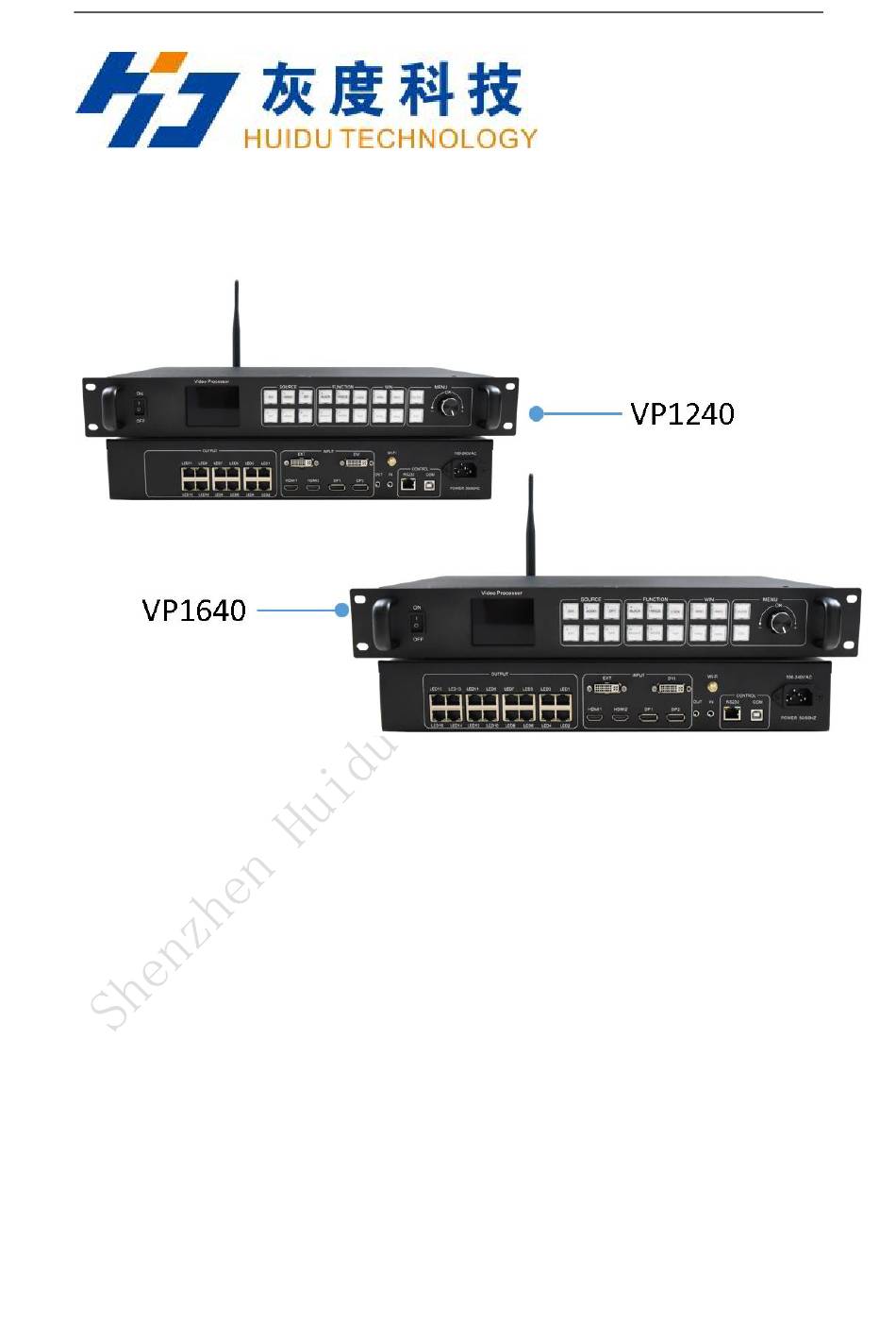

  • Page 1 Spec and User Manual 2 in 1 Video processor HD-VP1240/1640 V1.0 20211020...
  • Page 2 Overview HD- VP1240 or VP1640 is one powerful 2-in-1 controller which with twelve or sixteen network ports output, support dual live video windows integrated video processing and sending card functions. It product supports 4K input and is a cost-effective video processor for mid-to-high-end video control equipment in the LED large-screen display, performance and rental, studio and other markets.
  • Page 3: Connection Diagram

    Connection Diagram Displaying the screen of a video playback device such as a computer/TV/camera synchronously Connection diagram Appearance Front panel Interface Description Power Button 2.8" full-color LCD screen(320× 240) ,display device menu information...
  • Page 4 SOURCE Area Input Source Select keypad,6 buttons [DVI] ~ [DP], 5 input source port selection buttons, corresponding to the input interface identification on the back panel. Among them: when you press BLACK and the BALCK LED indicator is on, the output is in a black screen state.
  • Page 5: Product Operation

    5.1 Operation steps Step 1: Connect the display power to the screen. Step 2: Connect a playable input source to the HD-VP1240 or VP1640. Step 3: Use the USB serial port to connect to the computer to setting screen parameters.
  • Page 6 switch by pressing the “SOURCE” button on the front panel, and the other is to select through the input source of the menu interface. Step 1: Press the knob to select “Input Settings → Input Source” to enter the input source interface.
  • Page 7 Navigation interface 1. Output settings are used to set the load range and connection relationship of the sending card network port. 2. The screen layout is used to set the output screen, and supports up to 2 screens to display at the same time.
  • Page 8 1. Output settings are used to set the coordinates and range of the network port: Horizontal width: 256—the width of the LED screen; Vertical height: 128—the height of the LED screen; Horizontal start: setting parameter range = LED screen width-horizontal width; Vertical start: setting parameter range = LED screen height-vertical height;...
  • Page 9 Brightness: 0-100 default 50 Sharpness: 0-10, default 5 Contrast: 0-100, default 100 Saturation: 0-100, default 50 Color temperature: warmer, natural, colder, customize. Default: Warmer When the intercept switch is off, the knob cannot select the intercept width, height, horizontal, and vertical start. Intercept width: 128—Minimum width of input source Intercept height: 64—Minimum height of input source Horizontal...
  • Page 10 Existing templates support replacement, deletion, and loading non-existent template option, supports saving up to 8 template files Supports three sets of general resolutions and supports custom resolution settings. The default is 60Hz.
  • Page 11 The key lock, the maximum support time is 3600 seconds, the key lock is automatically locked after the set time, except that the key lock button functions normally, other buttons are locked, and the function does not work.
  • Page 12 Language selection: support English, Chinese Firmware version...
  • Page 13 Digital function description: When entering numbers, such as setting the width and height of the screen. The keypad is multiplexed with related buttons. During the inputting numbers, the multiplexed buttons and ESC are removed, and the knob can be used. Other key functions are forbidden, and they can not be used until they are exited.
  • Page 14 Enter/Exit keypad lock explanation 1. Press LOCK to lock keypad. 2. Menu newly add function of keypad lock, could be set to turn on or turn off. If turned on, the internal timer in the MCU will lock the keypad after the set time is recorded. At the same time, the lock button lights up.
