Huidu Technology VP1220 Spec And User Manual

2 in 1 video processor
Hide thumbs

Advertisement

Quick Links

Download this manual
Spec and User Manual
2 in 1 Video processor HD-VP1220/1620
V0.1 20200930

Advertisement

loading
Need help?

Need help?

Do you have a question about the VP1220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Huidu Technology VP1220

Summary of Contents for Huidu Technology VP1220

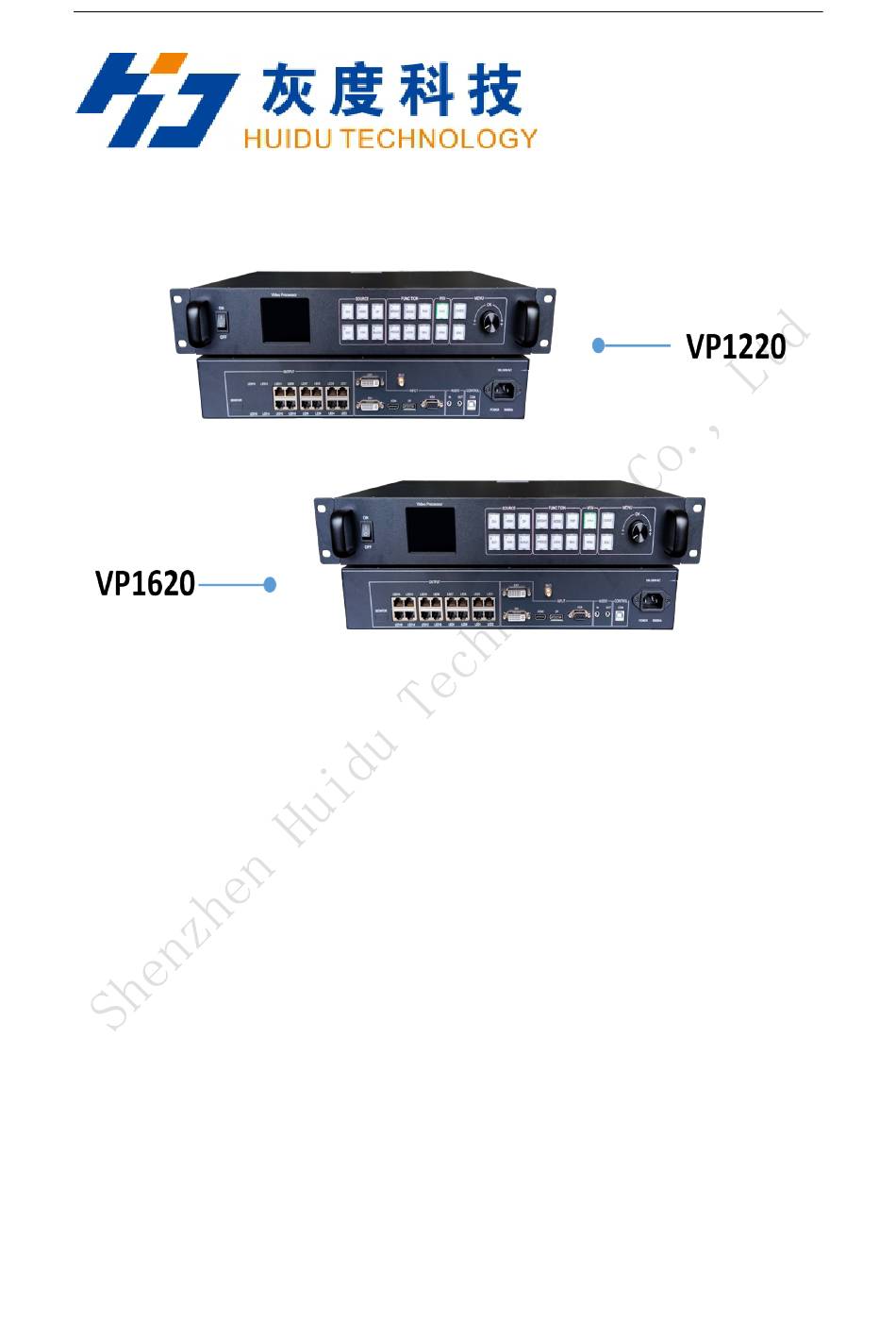

  • Page 1 Spec and User Manual 2 in 1 Video processor HD-VP1220/1620 V0.1 20200930...

  • Page 2: Application Scenario

    Overview HD- VP1220 or VP1620 is one powerful 2-in-1 controller which with twelve or sixteen network ports output, support dual live video windows integrated video processing and sending card functions. It product supports 4K input and is a cost-effective video processor for mid-to-high-end video control equipment in the LED large-screen display, performance and rental, studio and other markets.

  • Page 3: Function Area

    Connection diagram Appearance Front panel Interface Description Power Button 2.8" full-color LCD screen（320×240） ，display device menu information SOURCE Area Input Source Select keypad，6 buttons [DVI] ~ [DP], 5 input source port selection buttons, corresponding to the input interface identification on the back panel. Among them: when you press BLACK and the BALCK LED indicator is on, the output is in a black screen state.
  • Page 4 [PXP]: Quickly enter the dual picture layout menu. [REV]: reserved function keys. WIN Area [WIN1]- [WIN2]Button: You can select the opened screen 1~2 window, and the LED light indicates the currently selected window. MENU Area Short press the knob [OK] key: it means to enter the main menu or input confirmation. Turn the knob clockwise to increase or the next option, counterclockwise to decrease or the previous option.
  • Page 5 Dimensions...

  • Page 6: Product Operation

    5. Product Operation 5.1 Operation steps Step 1: Connect the display power to the screen. Step 2: Connect a playable input source to the HD-VP620 or VP820. Step 3: Use the USB serial port to connect to the computer to setting screen parameters.
  • Page 7 The icons in the bottom column from left to right are: brightness, sound, button lock Main interface Navigation interface 1. Output settings are used to set the load range and connection relationship of the sending card network port. 2. The screen layout is used to set the output screen, and supports up to 2 screens to display at the same time.
  • Page 8 1. Output settings are used to set the coordinates and range of the network port: Horizontal width: 256—the width of the LED screen; Vertical height: 128—the height of the LED screen; Horizontal start: setting parameter range = LED screen width-horizontal width; Vertical start: setting parameter range = LED screen height-vertical height;...
  • Page 9 The screen switch setting of screen 1 cannot be set to off Horizontal starting value + horizontal width cannot exceed the width of the LED screen The vertical starting value + vertical width cannot exceed the height of the LED screen Brightness: 0-100 default 50 Sharpness: 0-10, default 5 Contrast: 0-100, default 100...
  • Page 10 When the intercept switch is off, the knob cannot select the intercept width, height, horizontal, and vertical start. Intercept width: 128—Maximum width of input source Intercept height: 64—Maximum height of input source Horizontal start: horizontal start value range = input source width- interception width Vertical start: vertical start value range = input source width-interception width.
  • Page 11 Supports three sets of general resolutions and supports custom resolution settings. The default is 60Hz.
  • Page 12 The key lock, the maximum support time is 3600 seconds, the key lock is automatically locked after the set time, except that the key lock button functions normally, other buttons are locked, and the function does not work. Language selection: support English, Chinese...
  • Page 13 Firmware version Digital function description: When entering numbers, such as setting the width and height of the screen. The keypad is multiplexed with related buttons. During the inputting numbers, the multiplexed buttons and ESC are removed, and the knob can be used. Other key functions are forbidden, and they can not be used until they are exited.
  • Page 14 input source signal detected, it will flash off at an interval of 125ms, and this status will last until an input source signal is detected. If the input source signal is lost during usage , it will continue to blink. 3.

This manual is also suitable for:

V1620
