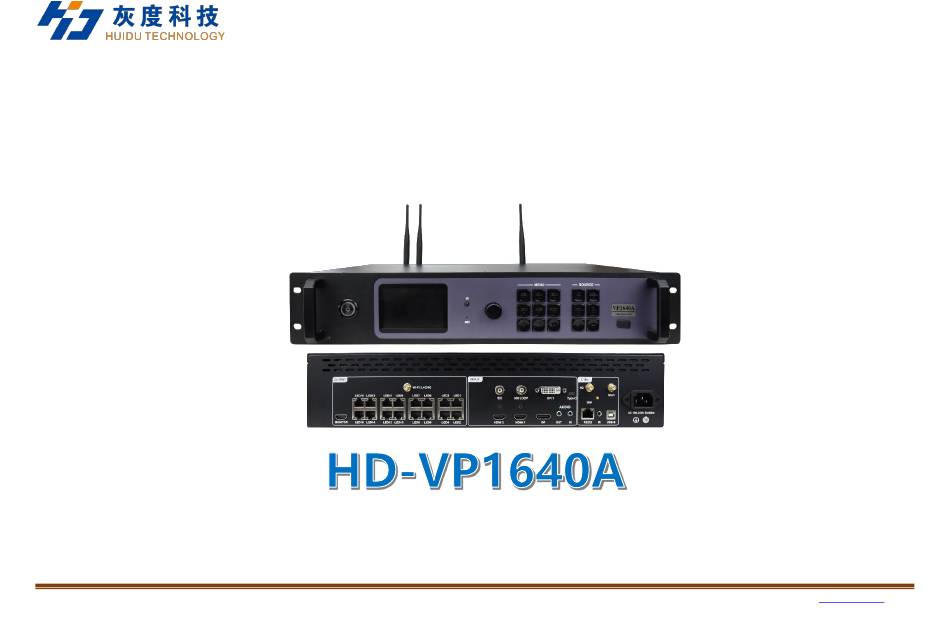

- Page 1 User Manual Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 2: Table Of Contents
1.1 Front panel ..........................1 1.2 Rear Panel ..........................3 1.3 Hardware connection ......................11 Chapter 2 HDSet installation ......................... 12 Chapter 3 HD-VP1640A Parameter settings ..................14 3.1 Connection ..........................14 3.2 Screen Configuration ....................... 15 Chapter 4 HD-VP1640A Product Operation ................... 19 4.1 Interface Description ....................... - Page 3 4.3 Net............................22 4.4 Screen layout ........................... 24 4.5 Effect ............................25 4.6 Capture ............................ 26 4.7 Template setting ........................27 4.8 Settings ............................ 27 4.9 Firmware version ........................30 4.10 Language ..........................31 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 4: Chapter 1 Interface Connection
Chapter 1 Interface connection 1.1 Front panel Key Description Item illustrate switch Control AC Power Input Shenzhen Huidu Technology Company www.huidu.cn... - Page 5 BRIGHT: Enter the image effect setting interface ESC: exit/return key MENU FREEZE: One-click screen freeze BLACK: One key black screen button Function key, key multiplexing function is digital selection, generally used when setting the resolution Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 6: Rear Panel
U disk file system: only supports U disk with FAT32 file system Video file format: MP4, MKV, TS, AVI Video encoding support: h.264/h.265 Audio encoding support: MP3/AAC Video encoding: MPEG4(MP4), MPEG_SD/HD Image file format: jpg, png, bmp 1.2 Rear Panel Shenzhen Huidu Technology Company www.huidu.cn... - Page 7 Input interface Interface quantity illustrate name type-C input interface Type-C Interface form: Type-C Shenzhen Huidu Technology Company www.huidu.cn...
- Page 8 [Advanced Settings] to turn it on. For specific operations, please refer to the operation manual DP input interface Interface form: DP Signal standard: DP1.2 backward compatible Resolution: VESA standard, ≤3840×2160@60Hz HDMI2.0 input interface × 1 (HDMI1) HDMI Interface form: HDMI-A Shenzhen Huidu Technology Company www.huidu.cn...
- Page 9 Signal standard: HDMI 1.4 backward compatible Resolution: VESA standard, ≤3840 x 2160 @ 30Hz Support audio input Note: Choose one of HDMI3 and projection function DVI input interface Interface form: DVI-I socket Signal standard: DVI1.0, HDMI1.3 backward compatible Shenzhen Huidu Technology Company www.huidu.cn...
- Page 10 SDI input interface (optional) Interface form: BNC Signal standard: SD-SDI, HD-SDI, 3G-SDI Resolution: VESA standard, ≤1920x1080@60Hz Resolution: Up to 1080p/1920×1200 Refresh rate: Max 30fps Screen Cast Whether to support APP: support Software projection: support Launcher: support Shenzhen Huidu Technology Company www.huidu.cn...
- Page 11 TRS 3.5mm two-channel audio input interface Power AC 100 ~ 240V, 50/60Hz Output interface Name quantity Description Gigabit Used for cascading receiving cards to transmit RGB data Ethernet stream port The control range of each network port is 650,000 pixels. Shenzhen Huidu Technology Company www.huidu.cn...
- Page 12 Signal standard: SD-SDI, HD-SDI, 3G-SDI Resolution: VESA standard, ≤1920x1080@60Hz Control interface Name quantity Description USB-B Connect to a computer for debugging the device RS232 Connect central control equipment for centralized control Wi-Fi Connect Wi-Fi Antenna Shenzhen Huidu Technology Company www.huidu.cn...
- Page 13 Used to connect an external infrared remote control extension cable For connecting 4G antenna (optional) SIM card slot (optional) Currently only standard cards are supported: the size is 25mm×15mm×0.8mm Screen Cast For wireless projection Wi-Fi Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 14: Hardware Connection
1.3 Hardware connection Shenzhen Huidu Technology Company www.huidu.cn... -
Page 15: Chapter 2 Hdset Installation
Please download the installation package of HDSet software from Huidu’s official website www.huidu.cn, and complete the installation according to the diagrams below: 1.Run the software package,then select language for installer. Click [OK] to go on. Shenzhen Huidu Technology Company www.huidu.cn... - Page 16 2.After selecting a language, an installation wizard like below will appear.Click [Next]. Choose the installation location, click [Browse] to change the default target location,then click [Install] after completing; After the installation is complete,you are ready to use HDSet. Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 17: Chapter 3 Hd-Vp1640A Parameter Settings
Chapter 3 HD-VP1640A Parameter settings 3.1 Connection Connect the VP1640A to the computer by USB-B type cable. Shenzhen Huidu Technology Company www.huidu.cn... -
Page 18: Screen Configuration
3.2 Screen Configuration 1. Run HDset software,then select device and process, click [Screen Configuration]. Shenzhen Huidu Technology Company www.huidu.cn... - Page 19 2. you can debug receiving cards. Shenzhen Huidu Technology Company www.huidu.cn...
- Page 20 Shenzhen Huidu Technology Company www.huidu.cn...
- Page 21 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 22: Chapter 4 Hd-Vp1640A Product Operation
Chapter 4 HD-VP1640A Product Operation 4.1 Interface Description 1． Wi-Fi, you can follow the steps below to turn on and off WiFi. Shenzhen Huidu Technology Company www.huidu.cn... - Page 23 2． Input source for Win 1-4， input resolution and refresh rate. You can follow the steps to open windows. 3． Output resolution, output to screen resolution. 4． Screen layout, show the screen layout of the current window. 5． Sound, you can adjust the volume by the following steps. Shenzhen Huidu Technology Company www.huidu.cn...
- Page 24 6． Brightness, the screen brightness, you can adjust the brightness by the following steps. 7． LED Network port, display the number of network ports currently in use. 8． Temparature,show the temperature inside the processor. Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 25: Input Source Switching
4.2 Input source switching The HD-VP1640A supports simultaneous access to six signal sources, and can switch to the input source that needs to be played at any time as required. You can quickly switch by pressing the key in the "SOURCE"... - Page 26 Horizontal width: 1024—the width of the LED screen; Vertical height: 640—the height of the LED screen; X: Horizontal start: setting parameter range = LED screen width-horizontal width; Y: Vertical start: setting parameter range = LED screen height-vertical height; 4.3.2 Input seting Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 27: Screen Layout
The connection relationship is set as the connection relationship processing of the receiving card. Currently, only standard general mode is supported, and complex connection relationships are not supported. 4.4 Screen layout Shenzhen Huidu Technology Company www.huidu.cn... -
Page 28: Effect
Horizontal starting value + horizontal width cannot exceed the width of the LED screen. The vertical starting value + vertical width cannot exceed the height of the LED screen. 4.5 Effect Brightness: 0-100 default 100 Sharpness: 0-10, default 5 Contrast: 0-100, default 76 Saturation: 0-100, default 50 Shenzhen Huidu Technology Company www.huidu.cn... -
Page 29: Capture
Intercept width: 960—Maximum width of input source Intercept height:540—Maximum height of input source X: Horizontal start: horizontal start value range = input source width-interception width Y: Vertical start: vertical start value range = input source width-interception width. Shenzhen Huidu Technology Company www.huidu.cn... -
Page 30: Template Setting
You can save up to 8 templates. ‘★’ mean this teamplate is already occupied. Existing templates support replacement, deletion, and loading non-existent template option, supports saving up to 8 template files 4.8 Settings 4.8.1 Input resolution Shenzhen Huidu Technology Company www.huidu.cn... - Page 31 Supports three sets of general resolutions and supports custom resolution settings. The default is 60Hz. 4.8.2 Image rotation Select the window that needs to be rotated, support normal,Horizontal mirror, Vertical mirror, HV mirror. Shenzhen Huidu Technology Company www.huidu.cn...
- Page 32 4.8.3 Test Chart Support testing color. 4.8.4 Other settings Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 33: Firmware Version
“LOCK” will light up, you can press the “LOCK” button to unlock. 4.8.5 Factory setting Restore the device to factory settings. 4.9 Firmware version Shenzhen Huidu Technology Company www.huidu.cn... -
Page 34: Language
Check the device’s MCU, DSP ,FPGA and Wi-Fi version. 4.10 Language Language selection: support English, Chinese. Shenzhen Huidu Technology Company www.huidu.cn...
