Summary of Contents for Huidu Technology HDP903

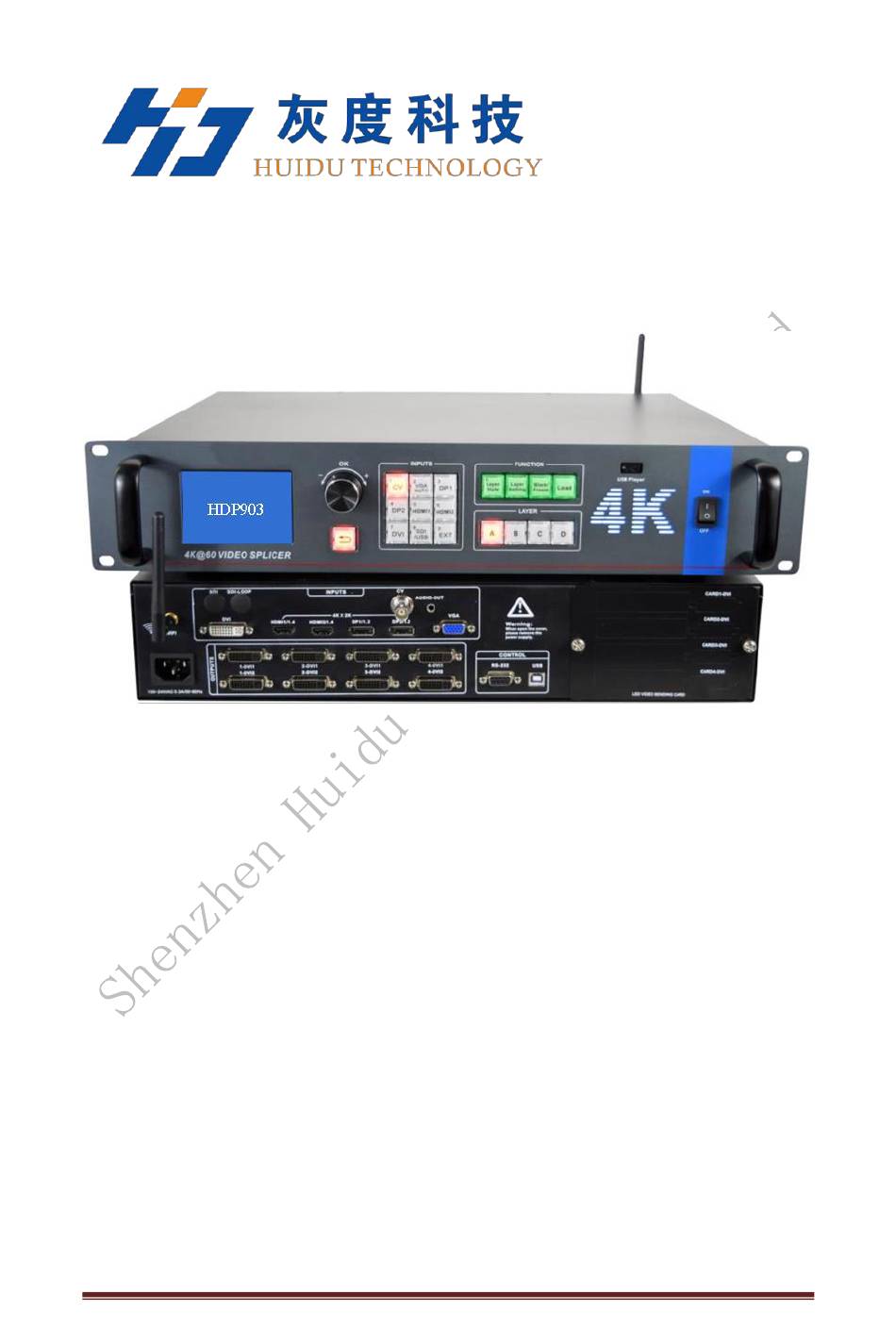

- Page 1 User Manual HDP903 video processor & Splicer V1.0 20200226 http://www.huidu.cn/...
- Page 2 Safety Instructions This symbol prompts the user, the device user manual has important operating and maintenance instructions.This symbol warns the user of the equipment inside the enclosure exposed to hazardous voltages, there is the risk of electric shock. Note Read the manual• Read and understand all safety and operating instructions before using the equipment.
-
Page 3: Table Of Contents
目录 Chapter 1 Overview .......................... 4 Chapter 2 Appearance ........................5 1.Front Panel ............................. 5 2.Rear Panel ............................6 Chapter 3 Menu Operations ......................7 1.System Architecture ........................7 2. Quick setup wizard........................8 3. Layer setup ..........................10 4. Preset recall ..........................11 5. -
Page 4: Chapter 1 Overview
Chapter 1 Overview This is a high-end 4K x 2K@60Hz splicing processor, 4-channel multi-graphic multi-input splicing processor, it can input four 4Kx2K images at the same time, and any 4Kx2K images can be arbitrarily zoomed by any roaming of images,meet ultra high definition display requirements. -
Page 5: Chapter 2 Appearance
Chapter 2 Appearance 1.Front Panel ○ ① LCD display,Display the menu and paramete rs of configuration. ○ ② Knob button ●Rotate the knob to select the menu or adjust the parameters ●Press the knob to enter the menu or confirm the operations ○... -
Page 6: Rear Panel
2.Rear Panel ○ ① WIFI antenna Use for mobile phone and tablet to remote control the product. ○ ② Input interface HDMI1.4 x2 4K/30Hz;DP1.2 x2 4K/60Hz;DVI x1;VGA x1;SDI x1;SDI-LOOP x1;CV x1; ○ ③ Audio output 3.5mm coaxial audio output. ○ ④... -
Page 7: Chapter 3 Menu Operations
Chapter 3 Menu Operations 1.System Architecture The video processor has 8 digital-to-analog input, including CVBS x1, VGA x1, DVI x1, HDMI1.4 X1 ,DP1.2 x1, HDMI1.4 supports 3840x2160@30Hz, DP1.2 supports 3840x2160@60Hz. Any 4 screen input and roam freely, the single channel output supports customized resolution up to 2.65 megapixels. -
Page 8: Quick Setup Wizard
In the default menu, press the knob to enter the main menu, press knob continue to enter the sub-menu,press return button to back to previous menu, rotate the knob left and right to choose wanted menu item. The main menu is shown as the following figure, 2. - Page 9 http://www.huidu.cn/...
-
Page 10: Layer Setup
3. Layer setup The multi-screen video splicing processor has 4 layers, and each layer can be configured with parameters ,such as input source, layer switch, position, size, rotation mode, and layer layout. The layers button is arrayed on the front panel. The layer must be selected before the operation, and the layer should be in the enabled status. -
Page 11: Preset Recall
Press the shortcut "Layer Settings" to enter the setup menu. 4. Preset recall Apply the preset parameters directly. 10 presets in total are available for users to set and use. When you enter the preset recall menu “Load”, the indicators of number buttons on the front panel will turn on. - Page 12 For example, the actual output resolution is output 1: 1852x1216; output2: 1728x1216; output3:2048x1216; output4: 1920x1216; The resolution should be set to 2048x1216, or it can be larger than 2048x1216, as long as it does not exceed 2.6 megapixel. After setting, the resolution of output 1~4 is 2048x1216. 2) Set the splicing parameters _Menu: Splice ->Parameters>>>) http://www.huidu.cn/...
-
Page 13: Specification
6. Specification http://www.huidu.cn/...
