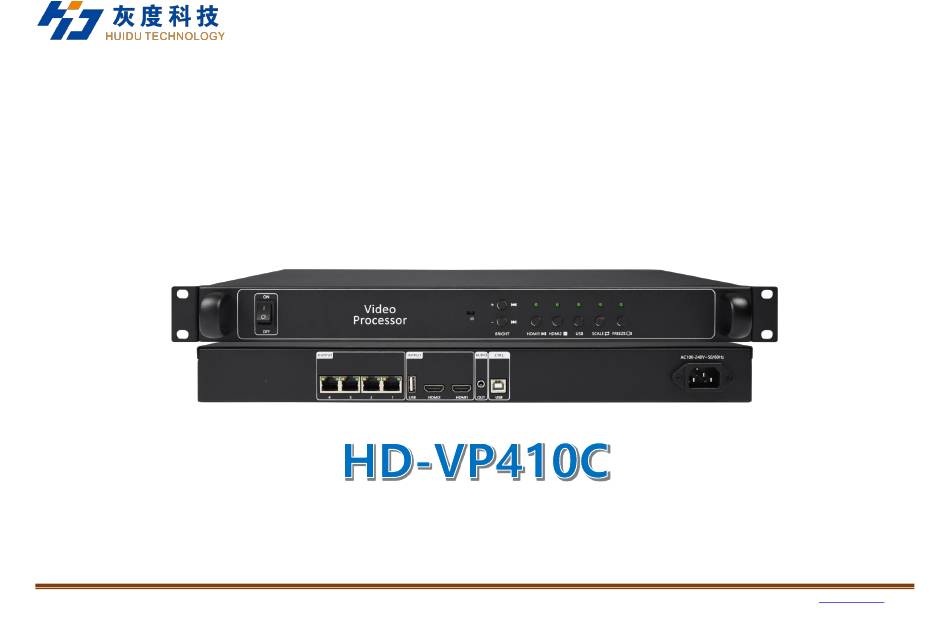

- Page 1 User Manual Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 2: Table Of Contents
Content Chapter 1 Interface connection ....................... 1 Chapter 2 HDSet installation ........................6 Chapter 3 HD-VP410C Parameter settings....................8 3.1 Connection ..............................8 3.2 Basic Setting ............................8 3.2.1 Screen Configuration ........................9 3.2.2 Video processor Setting ........................ 12 Chapter 4 Advanced function ........................ 14 4.1 USB Playing .......................... -
Page 3: Chapter 1 Interface Connection
Chapter 1 Interface connection Front panel： Interface Description Power switch button Infrared remote control receiver Brightness increases / Play the next program file in the U-disk Brightness decreases / Play the previous program file in the U-disk Shenzhen Huidu Technology Company www.huidu.cn... - Page 4 HDMI 1 Signal selection button / Pause or play the program in the U-disk HDMI 2 Signal selection button / Stop the program in the U-disk USB Content playback selection button Partial or Full-screen toggle button Screen one-key Pause / Video and image switching playback Shenzhen Huidu Technology Company www.huidu.cn...
- Page 5 Rear Panel： Interface Description Gigabit Ethernet port Transmission speed 1Gbps, used for cascading receiving cards, transmitting RGB data stream USB2.0 input interface Support insert U disk to play video, picture Shenzhen Huidu Technology Company www.huidu.cn...
- Page 6 TRS 3.5mm dual channel audio output port Connect audio power amplifier for high-power audio external amplifier USB-B interface Connect the computer for debugging the parameters of the receiving card, program upgrade, etc. AC input interface 110V~240V 50/60Hz Shenzhen Huidu Technology Company www.huidu.cn...
- Page 7 1.2 Hardware connection Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 8: Chapter 2 Hdset Installation
Please download the installation package of HDSet software from Huidu’s official website www.huidu.cn, and complete the installation according to the diagrams below: 1.Run the software package,then select language for installer. Click [OK] to go on. Shenzhen Huidu Technology Company www.huidu.cn... - Page 9 2.After selecting a language, an installation wizard like below will appear.Click [Next]. Choose the installation location, click [Browse] to change the default target location,then click [Install] after completing; After the installation is complete,you are ready to use HDSet. Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 10: Chapter 3 Hd-Vp410C Parameter Settings
Chapter 3 HD-VP410C Parameter settings 3.1 Connection Connect the VP410C to the computer by USB-B type cable. Shenzhen Huidu Technology Company www.huidu.cn... -
Page 11: Basic Setting
3.2 Basic Setting 3.2.1 Screen Configuration 1.Run HDset software,then select device and process, click [Screen Configuration]. Shenzhen Huidu Technology Company www.huidu.cn... - Page 12 2. you can debug receiving cards. Shenzhen Huidu Technology Company www.huidu.cn...
- Page 13 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 14: Video Processor Setting
3.2.2 Video processor Setting You can do processor setting here. 1.Select Sinal source. 2.Give [Scale],[Black Screen],[Freeze] order. 3.Set fixed brightness. 4.Set fixed volume. 5.Use the Function,such as [Layout setting],[Display cut].. Shenzhen Huidu Technology Company www.huidu.cn... - Page 15 Shenzhen Huidu Technology Company www.huidu.cn...
-
Page 16: Chapter 4 Advanced Function
Chapter 4 Advanced function 4.1 USB Playing 1.Put the video and picture in the root catalog of U-disk. 2.Insert the U-disk to the VP210C. Shenzhen Huidu Technology Company www.huidu.cn... -
Page 17: Change Function Of Buttons
4.2 Change function of buttons When insert your U-disk, press the ‘USB’ button to play video or picture. When you want to use the change function,press the ‘USB’ button again.Each button’s function will change. As follow: Shenzhen Huidu Technology Company www.huidu.cn... - Page 18 Shenzhen Huidu Technology Company www.huidu.cn...
