Summary of Contents for Huidu Technology HDP601

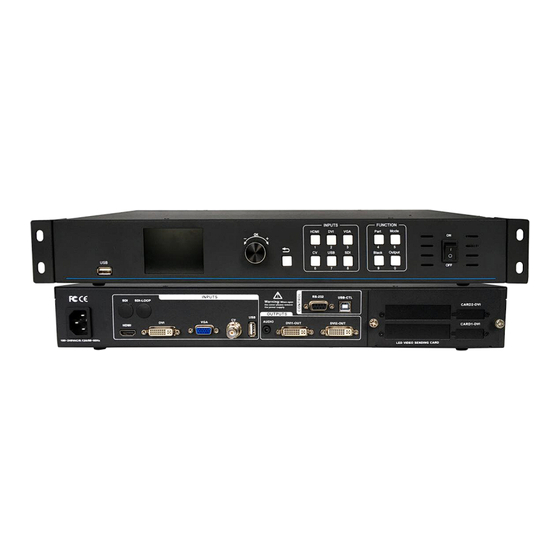

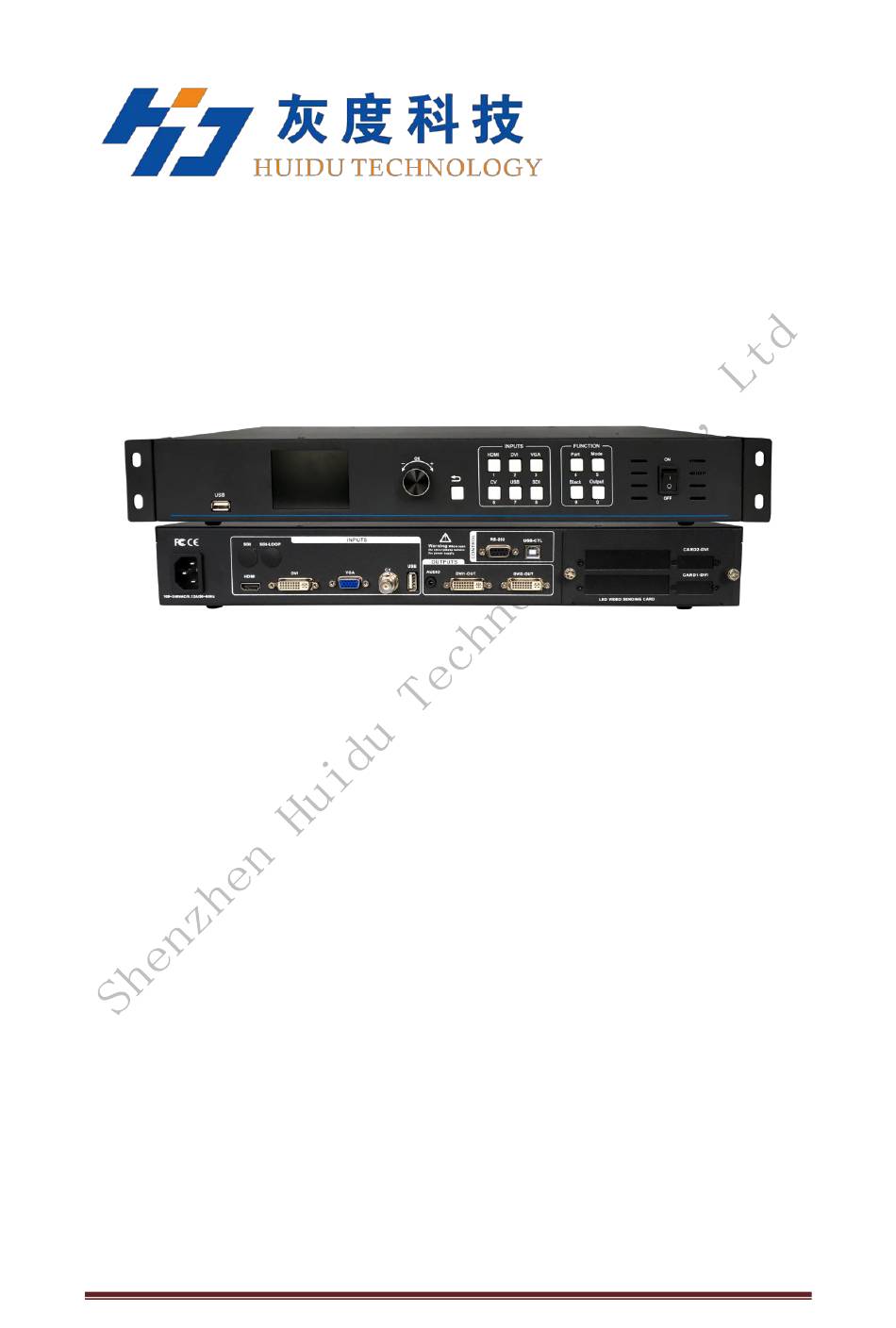

- Page 1 Operation Manual LED Video Processor-HDP601 V1.0 20190903 http://www.huidu.cn/...
- Page 2 Safety instructions This symbol alerts the user to important operating and maintenance instructions in the equipment user manual. This symbol warns the user that there are dangerous voltages exposed in the equipment cabinet, and there is a danger of electric shock. Note Read the instructions •...
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Overview......................... 4 1.Features..........................4 Chapter 2 Panel..........................6 1.Rear panel..........................6 2.Front panel..........................7 Chapter 3 Menu System......................... 9 1.Simplified menu structure....................8 2.Menu operation........................9 3. The default menu.........................9 4. Main menu.......................... 10 Chapter 4 Setup and Operation....................11 1.Language.......................... -
Page 4: Chapter 1 Overview
Chapter 1 Overview HDP-601 LED video processor supports digital high-definition input, analog high-definition input, analog standard-definition input, and HDMI audio input. The video input formats supported by the LED video processor are listed below: DVI input Support VESA standard, up to 1920x1200 @ 60Hz HDMI input 480i / p 676i / p 720p 1080i / p color depth 8/10/12 bit VGA input Support VESA standard, up to 1920x1200 @ 60Hz Composite video input PAL, NTSC, PAL-M / N, SECAM... - Page 5 practical operations for capturing partial screens and full screens. Any input channel can independently set different capture effects, and each channel can still switch seamlessly. The user can arbitrarily set the size and position of the part of the current channel, while the other channels do not change the method.
-
Page 6: Chapter 2 Panel
Chapter 2 Panel 1.1. rear panel Figure 1—The rear panel of the video processor AC power input — Connect the video processor with an IEC standard power cable. The input power is 100-240 VAC, 50-60Hz. Video input — The processor can receive digital video signals, analog video signals, composite video signals, and USB playback inputs. -
Page 7: Front Panel
Figure 2—LED sending card 2.Front panel 前面板 Figure 3—Processor front panel USB input LCD display — displays menus and current information. Menu operation key — The menu operation key area contains the "back key" and the knob "confirm and adjust". The following is the meaning and usage of each key: ●... -
Page 8: Simplified Menu Structure
Function keypad — The function keypad contains on-screen display modes, preset recalls, black screens, and output shortcut keys for quick operation of various functions. 。 Figure 5—Function keypad ● Part key, part of the screen display mode. After the user has set the capture parameters of the partial screen in the function menu, press this key to display the partial screen effect. -
Page 9: Chapter 3 Menu System
Chapter 3 Menu System 1. Menu structure diagram Default Main Main function description Output Set the output resolution and fine-tune the output resolution. Image Adjust image color, brightness, contrast, and more. Set picture switching effects (special effects) and wait for Features Set up some functions, EDID management, signal source hot Preset... -
Page 10: Menu Operation
Menu operation The operation keys of the menu mainly include the "back key" and the OK "confirm" key. The man-machine interface is an LCD screen. The startup process of the device is as follows: LCD screen displays Power-on main menu Default product logo... -
Page 11: Chapter 4 Setup And Operation
Chapter 4 Setup and Operation 1. Language Before using the LED video processor, make sure the language is suitable for your use. If not, please follow the steps below to complete the setting. as follows Default menu → Main menu → System → Language The above is the menu operation path. -
Page 12: Save And Recall Preset Scenes
Method two: default menu → main menu → functions → black screen / freeze key → black screen Picture freeze settings, default menu → main menu → functions → black screen / freeze key → freeze 5. Capture part of the screen The function of capturing part of the picture is an extension of the function of unequal stitching. -
Page 13: Signal Hot Backup
Default menu → Main menu → Preset → Save → Preset [1] → Confirm There are preset [1] to preset [10] in the submenu of the save mode, and 10 storage spaces can be selected by the user. When the storage space is empty, the status on the right is displayed as ☆,and when the parameters have been stored, the status on the right is displayed as ★. -
Page 14: Vga Input Image Correction
10. VGA input image correction In general, when switching to a VGA input signal source, the processor will automatically correct the color, image size and position of the input source. If the processor is not automatically calibrated successfully, the user can implement manual calibration.
