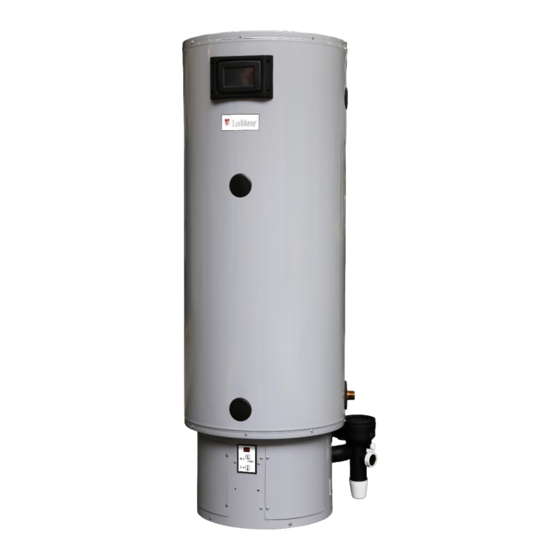

- Page 1 EcoSable range Flue Guide Models covered: LGSS200-600 LGSS200-720...
- Page 2 DOCUMENT CONTROL Article Language Version Modified by EcoSable flue guide English V1.3 June 2024 S Addis Page 1 of 15...
-
Page 3: Table Of Contents
Contents GENERAL..................................3 Certified Flue Systems ............................. 3 Drawing 1 Water Heater Terminal Locations According to BS5440 ................4 Table 1 Water Heater Terminal Locations ........................ 4 Risk Assessment ..............................5 CONCENTRIC FLUE SYSTEMS ............................6 Plume Kit For Use With Horizontal Concentric Flue ....................7 TWIN PIPE FLUE SYSTEMS ............................ -
Page 4: General
GENERAL ERTIFIED YSTEMS Lochinvar Water Heaters are certified for use on the following flue categories: Installation type Category Description An appliance intended to be connected to a flue that evacuates the products of combustion to the Open flue outside of the room containing the appliance. The combustion air is drawn directly from the room. -
Page 5: Drawing 1 Water Heater Terminal Locations According To Bs5440
For Water Heater installation above 333kW nett input the table above should not be used, these installations are covered by the clean air act and must comply with its requirements in full, contact your local environmental health team for further guidance For further guidance please contact Lochinvar Technical support Page 4 of 15... -
Page 6: Risk Assessment
SSESSMENT Further to the requirements in BS5440-1:2023 Annex D and Figure C.8, table C.1 the following risk assessment gives guidance for the positioning of horizontal flues. This form should be completed before work commences and undertaken by a person who is competent to undertake the risk assessment. Type C appliances with net heat input not exceeding 70kW Low level flue discharge risk assessment (including net heat input for groups of appliances) Regarding the flue position... -
Page 7: Concentric Flue Systems
CONCENTRIC FLUE SYSTEMS LV310759 CONCENTRIC HORIZONTAL FLUE ASSEMBLY ALL MODELS COMPONENTS INCLUDED Item No. Description Included CONCENTRIC HORIZONTAL FLUE ASSEMBLY 80/125mm PP Includes: LV310759 Horizontal Concentric terminal, wall plates, 90 bend and 500mm concentric extension Maximum equivalent flue length =20 Metres Maximum number of bends allowed =5 LV310755 CONCENTRIC HORIZONTAL FLUE ASSEMBLY ALL MODELS... -
Page 8: Plume Kit For Use With Horizontal Concentric Flue
LUME ORIZONTAL ONCENTRIC LG800008B PLUME MANAGEMENT KIT Ø80/125mm All models Description Ø80/125mm CONCENTRIC BEND 90°-PP Ø80/125mm CONCENTRIC HORIZONTAL PLUME KIT TERMINAL -PP Ø80mm EXTENSION -PP CUTABLE (1000mm) Ø80mm BEND 90°-PP Ø80mm PLUME KIT BIRD GUARD Ø80mm PLUME KIT FLUE EXIT-PP Ø80mm WALL CLAMP INTERNAL DIAMETER... -
Page 9: Twin Pipe Flue Systems
TWIN PIPE FLUE SYSTEMS ELGPH001 TWIN PIPE HORIZONTAL FLUE ASSEMBLY USING A CONCENTRIC TERMINAL ALL MODELS COMPONENTS INCLUDED Item No. Description Included LV310728 CONC HORZ TERMINAL - Ø80/80mm TO Ø80/125mm PP M85291 BEND 90° Ø80mm PP LV310718 EXTENSION - Ø80mm (250mm) PP LV310722 EXTENSION - Ø80mm PP TELESCOPIC LV312209... - Page 10 Additional Twin-pipe flue items available to complete the installation Additional Flue Ancillary Items Item No. Description LV310718 EXTENSION - Ø80mm PP 250mm M85271 EXTENSION Ø80mm PP 500mm M85272 EXTENSION Ø80mm PP 1000mm LV310721 EXTENSION - Ø80mm PP 2000mm LV310722 EXTENSION - Ø80mm PP TELESCOPIC M85292 BEND 45°...
-
Page 11: Conventional Flue Systems
CONVENTIONAL FLUE SYSTEMS FAN ASSISTED CONVENTIONAL FLUE TRANSITION-ALL MODELS COMPONENTS INCLUDED Item No. Description LV305030 APPLIANCE AIR INTAKE GUARD Ø80/125mm LV310753 CONCENTRIC VERTICAL TERMINAL - Ø80/125mm PP LV302520 FLAT ROOF FLASHING Ø140mm ALU Maximum equivalent flue length =50 Metres Reduction for each 90 bend=3.9metre ADDITIONAL CONVENTIONAL FLUE ITEMS AVAILABLE TO COMPLETE THE INSTALLATION Additional Flue Ancillary Items Item No. -
Page 12: Common Flue Systems
Lochinvar, Lochinvar cannot comment / advise or provide support on the design of this type of flue system. To design such a flue system, the installer/contractor must consult a specialist flue supplier who will be responsible for the design and installation of the separate flue system. -
Page 13: Order Form And Notes
ORDER FORM AND NOTES Notes-Items to Order Item No No Required Notes Contact Lochinvar customer service to order additional flue items on 01295 269981 Page 12 of 15... - Page 14 Blank Page 13 of 15...
- Page 15 Blank Page 14 of 15...
- Page 16 Page 15 of 15...
