Summary of Contents for Lochinvar EcoSword LGC160-210

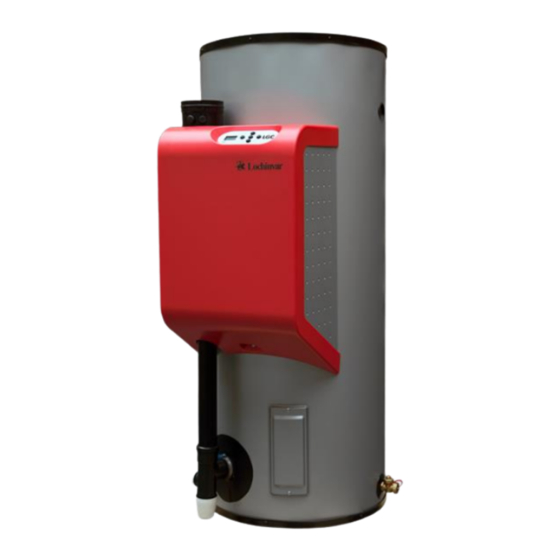

- Page 1 EcoSword range Flue Guide Models covered: LGC160-210 LGC160-350 LGC200-210 LGC200-350 LGC245-420 LGC245-560 LGC285-420 LGC285-560 LGC380-560...
- Page 2 DOCUMENT CONTROL Article Language Version Modified by EcoSword flue guide English V1.2 January 2023 S Hunt Page 1 of 11...
-
Page 3: Table Of Contents
Contents GENERAL..................................3 Drawing 1 Water Heater terminal locations......................4 Table 1 Water Heater terminal locations ......................... 4 CONCENTRIC FLUE SYSTEMS ............................5 Standard concentric horizontal and vertical flue ...................... 5 Plume kit for use with Horizontal concentric flue ....................6 Twin-pipe flue ................................. -
Page 4: General
GENERAL Lochinvar Water Heaters are certified for use on the following flue categories: Installation type Category Description An appliance intended to be connected to a flue that evacuates the products of combustion to the Open flue outside of the room containing the appliance. The combustion air is drawn directly from the room. -
Page 5: Drawing 1 Water Heater Terminal Locations
For Water Heater installation above 333kW nett input the table above should not be used, these installations are covered by the clean air act and must comply with its requirements in full, contact your local environmental health team for further guidance For further guidance please contact Lochinvar Technical support Page 4 of 11... -
Page 6: Concentric Flue Systems
CONCENTRIC FLUE SYSTEMS TANDARD CONCENTRIC HORIZONTAL AND VERTICAL FLUE ELGH001 CONCENTRIC HORIZONTAL FLUE ASSEMBLY ALL MODELS COMPONENTS INCLUDED tem No. Description Included LV310759 CONCENTRIC HORIZONTAL FLUE ASSEMBLY 80/125mm PP LV310744 CONCENTRIC EXTENSION - Ø80/125mm PP TELESCOPIC INCLUDES 90 BEND, 500mm LENGTH AND WALL PLATES Centre Line Measurement A DIMENSION FOR MODELS LGC160-210 / LGC200-350 1800mm... -
Page 7: Plume Kit For Use With Horizontal Concentric Flue
LUME KIT FOR USE WITH ORIZONTAL CONCENTRIC FLUE Plume management kit LG800008A PLUME MANAGEMENT KIT Ø80/125mm All models Description Ø80/125mm CONCENTRIC BEND 90°-PP Ø80/125mm CONCENTRIC HORIZONTAL PLUME KIT TERMINAL -PP Ø80mm EXTENSION -PP CUTABLE (1000mm) Ø80mm BEND 90°-PP Ø80mm PLUME KIT BIRD GUARD Ø80mm PLUME KIT FLUE EXIT-PP Ø80mm... -
Page 8: Twin-Pipe Flue
PIPE FLUE ELGPH001 TWIN PIPE HORIZONTAL FLUE ASSEMBLY ALL MODELS COMPONENTS INCLUDED Item No. Description Included LV310728 CONC HORZ TERMINAL - Ø80/80mm TO Ø80/125mm PP M85291 BEND 90° Ø80mm PP LV310718 EXTENSION - Ø80mm (250mm) PP LV310722 EXTENSION - Ø80mm PP TELESCOPIC LV312209 CONC TO TWIN PIPE ADAPTOR - Ø80/125 - 80/80 PP/ALU ELGPV001 TWIN PIPE VERTICAL FLUE ASSEMBLY... -
Page 9: Conventional (Exhaust Only) Flue Systems
CONVENTIONAL (EXHAUST ONLY) FLUE SYSTEMS ELGCF001 CONVENTIONAL VERTICAL FLUE ASSEMBLY ALL MODELS COMPONENTS INCLUDED Item No. Description Included LV310753 CONCENTRIC VERTICAL TERMINAL - Ø80/125mm PP M85272 EXTENSION Ø80mm (1000mm) PP LV310722 EXTENSION - Ø80mm PP TELESCOPIC LV305030 APPLIANCE AIR INTAKE GUARD Ø80/125mm Maximum Flue Lengths Maximum equivalent flue length = 50 Metres 90 Bend = 3.9 equivalent length... -
Page 10: Common Flue Systems
Building or planning regulations, but as these systems use a flue system not supplied by Lochinvar, Lochinvar cannot comment / advise or provide support on the design of this type of flue system. To design such a flue system, the installer/contractor must consult a specialist flue supplier who will be responsible for the design and installation of the separate flue system. -
Page 11: Order Form And Notes
ORDER FORM AND NOTES Notes-Items to order Notes Item No. No required Contact Lochinvar customer service to order additional flue items on 01295 269981 Page 10 of 11... - Page 12 Page 11 of 11...
