Folger Adam 700 Series
Electric Strike
Installation Instructions

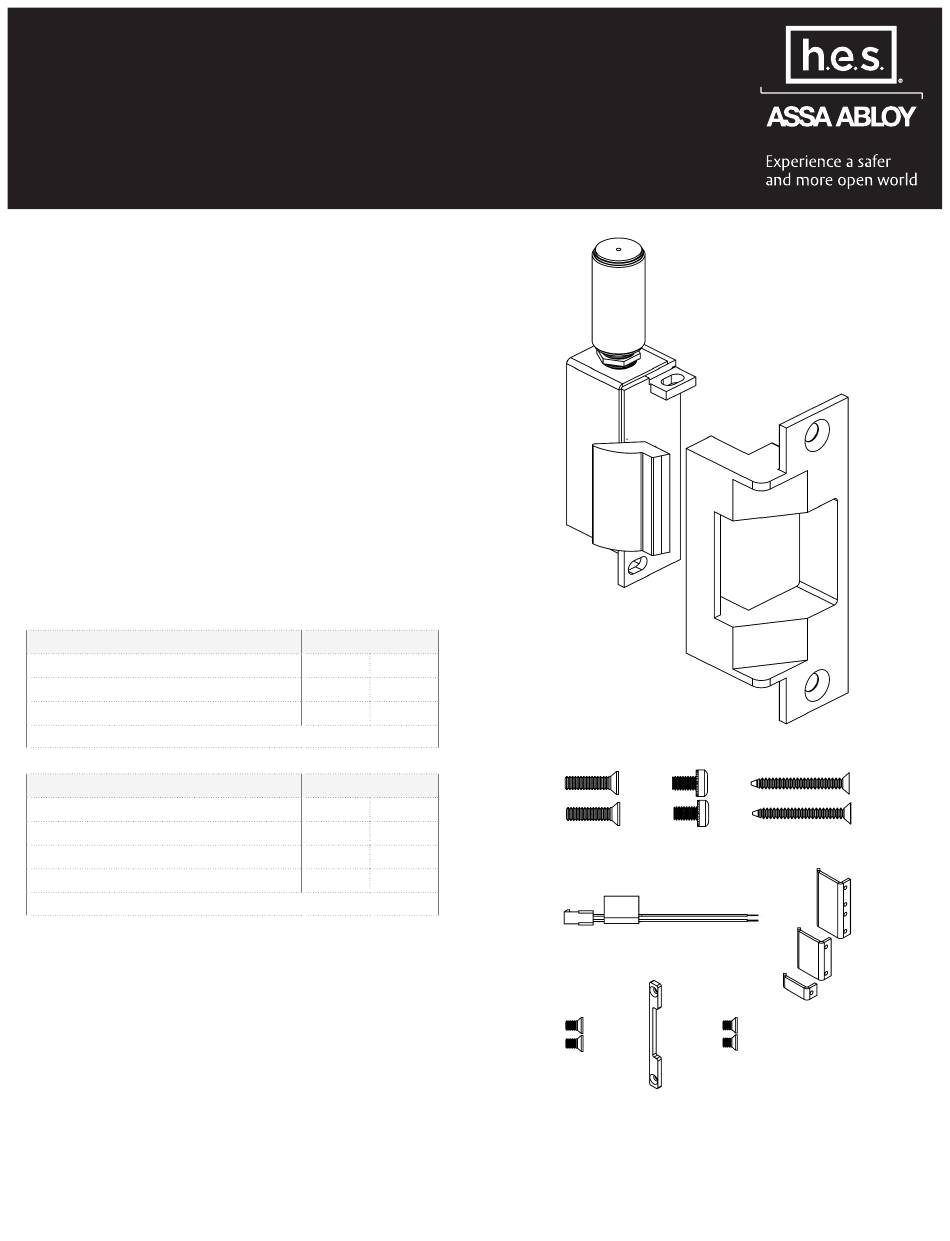

Product Components
A
Electric Strike Body & Faceplate
B
#12-24 Mounting Screws
C
#8-32 Body Mounting Screws
D
#12 x 2 1/2" Wood Faceplate
Mounting Screws
E
Plug In Connector
F
Deadlatch Tabs (742-75 only)
G
#6-32 x 5/16" Deadlatch Tabs
Screws (742-75 only)
H
Keeper Shim (742-75 only)
I
#6-32 x 3/16" Keeper Shim
Screws (742-75 only)
Electrical Specifications
Electrical Ratings for Solenoid
Voltage
Resistance in Ohms
Amps
Solenoids are rated at +/– 10% indicated value.
Minimum Wire Guage Requirements
Voltage
200 feet or less
200–300 feet
300–400 feet
Lengths based on round trip.
Continuous Duty
12 VDC
24 VDC
41
160
.29
.15
Continuous Duty
12 VDC
24 VDC
18 guage
20 guage
16 guage
18 guage
14 guage
16 guage
A
B
C
E
G
H
I
D
F
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the h.e.s. Folger Adam 700 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Assa Abloy h.e.s. Folger Adam 700 Series

  • Page 1 Folger Adam 700 Series Electric Strike Installation Instructions Product Components Electric Strike Body & Faceplate #12-24 Mounting Screws #8-32 Body Mounting Screws #12 x 2 1/2" Wood Faceplate Mounting Screws Plug In Connector Deadlatch Tabs (742-75 only) #6-32 x 5/16" Deadlatch Tabs Screws (742-75 only) Keeper Shim (742-75 only) #6-32 x 3/16"...
  • Page 2 Corbin/Russwin Arrow and Falcon 0" NOTE: The state of switch is listed Best 34H–37H 1/4" for an unpowered strike and LBM in Sargent (8200) and unactuated (door open) position. ASSA ABLOY ACCENTRA 8800 3/16" ™ (formerly Yale Commercial) Schlage 3/4" Diagram1:...
  • Page 3 Installation (continued) Preparing the Frame Diagram 4: Frame Dimensions Method of install may vary per door and frame manufacturer. If using a mortise lockset, calculate offset using Diagram 4. PREPARE frame using the template for your strike (see page 4). If using the 742-75, reference Diagram 5 to install the Deadlatch Tab and Keeper Shim.
  • Page 4 Printed in the U.S.A. Patent pending and/or patent www.assaabloydss.com/patents techsupport.hes@assaabloy.com Copyright © 2024, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company. hesinnovations.com | 800 626 7590 All rights reserved. Reproduction in whole or in part without the express written...
