Installation Instructions

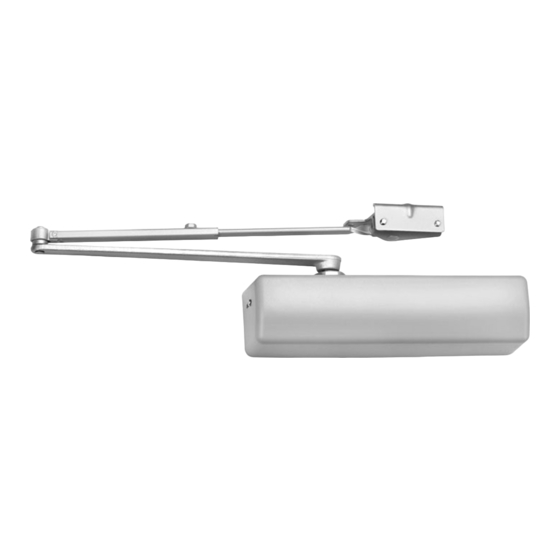

DC6210 Series
DC6410 Series
A14 Heavy Duty Friction Hold Open Parallel Arm
Important
•
An improperly installed or incorrectly adjusted door closer may cause property damage or personal injury; and will void
product warranty.
•
To avoid personal injury, DO NOT DISASSEMBLE THIS DOOR CLOSER BODY.
•
Door closers must be securely fastened to a properly reinforced door and frame with fasteners provided.
•
An auxiliary door stop, BY OTHERS, is required for this Installation.
•
Arm is handed and must match hand of door.
For installation assistance contact Corbin Russwin
1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
Copyright © 2018 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
80-9360-6007-152 04/18
