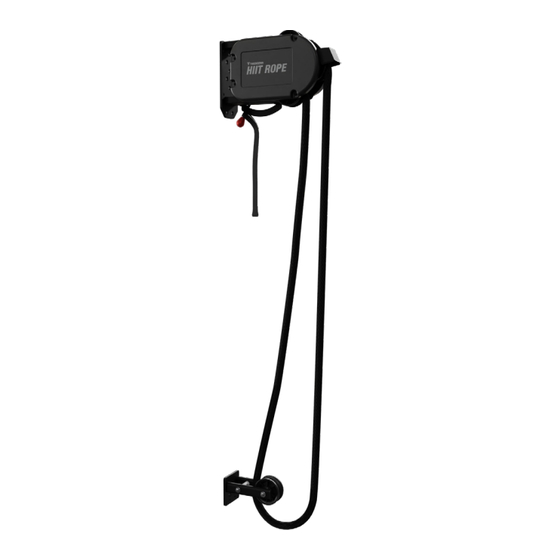

- Page 1 CORE HEALTH & FITNESS HIIT ROPE OWNER'S MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ......................2 IMPORTANT LABEL LOCATIONS ........................4 ASSEMBLY ...........................5 REQUIRED TOOLS ..............5 ..............6 EXTERNAL PULLEY ..............8 ADAPTER KIT ..............9 MAINTENANCE ..........................10 TOOLS ..............10 MAINTENANCE SCHEDULE ..............11 REPLACEMENT PARTS ..........................12 SUPPORT & SERVICE ..........................16 Page 1... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING! Before using this product, it is essential to read the ENTIRE Owner’s Manual and ALL installation instructions. The Owner’s Manual describes equipment operation and instructs members on how to use correctly and safely. Read all warnings posted on the machine. Health related injuries may result from incorrect or excessive use of exercise equipment. - Page 4 The rope should be pulled in only one direction. Do not attempt to hang on the rope. Only use your hands to pull the rope. It is the purchaser’s sole responsibility to properly instruct its end users and supervising personnel as to the proper operating procedures of all Throwdown equipment.
-
Page 5: Important Label Locations
IMPORTANT LABEL LOCATIONS This page shows the location of the warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the integrity and placement of these stickers. If you find any stickers missing or damaged the replacement numbers are shown on the support site and following pages. -
Page 6: Assembly
ASSEMBLY REQUIRED TOOLS 73-00160 73-00390 Fig. 3 Required Tools: • 8mm Allen Key • 1 1/2” Open Ended Wrench • 10mm Open Ended Wrenches Parts Included In the Box • HIIT Rope • Alternative Bolt Sets For a complete list of replacement parts see the online Owner’s Manual or through CORE Connect on page 12 Page 5... - Page 7 Note: In the event you want to install the HIIT Rope on an XTC, follow these instructions. 1. Mount the HIIT Rope (TD-RPT01) to a post on the XTC Rig approximately 8’ high and ensure the resistance handle is on the user’s right. TD-RPT01 Fig.
- Page 8 Fig. 6 3. Assembly is complete. Page 7...
-
Page 9: External Pulley
EXTERNAL PULLEY 1. Align External Pulley Attachment (73-00293) to the post and install using Alternative Bolt Sets (73-00160). 73-00160 73-00293 Fig. 7 2. Assembly is complete. Fig. 8 Page 8... -
Page 10: Adapter Kit
ADAPTER KIT 1. Align Adapter Kit Supports (73-00298) against mounting holes of rig. 2. Align External Pulley Attachment (73-00293) with the Adapter Kit Supports (73-00298) and install using four hex head cap screws (UF10112320), eight washers (UW70112020), and four nuts (UN51112001E). -
Page 11: Maintenance
MAINTENANCE TOOLS Working on this product will require basic and/or sometimes specialty tools based on the type of service that will be performed at any time. To assist, we recommend having the tools listed available when performing maintenance. Tool Screwdriver Set, Flat Socket Set, Metric 8mm Hex Bit Rubber Mallet or Dead-Blow Hammer... -
Page 12: Maintenance Schedule
MAINTENANCE SCHEDULE With durable, high performance components, this equipment is designed for heavy usage with minimal maintenance required. To keep it in top condition, perform regular daily, weekly and monthly preventive maintenance routines outlined below. The safety and integrity of this machine can only be maintained when the equipment is regularly examined for damage and wear and repaired. -
Page 13: Replacement Parts
REPLACEMENT PARTS Replacement parts for this unit are available through SUPPORT & SERVICE. Parts listed are shown on the following pages and interactive drawings available on Core Connect. Listed parts may change, please check Core Connect for latest versions and other SKU’s covered by this manual: COVERS RESISTANCE LEVEL STRAP AND RESISTANCE ADJUSTMENT KNOB ........18... - Page 14 COVERS PO10060098E-KIT PO10060099E-KIT Fig. 11 Page 13...
- Page 15 RESISTANCE LEVEL TD-RPT-11-KIT Fig. 12 Page 14...
- Page 16 STRAP AND RESISTANCE ADJUSTMENT KNOB PA23112380E TD-RPT-20E Fig. 13 Page 15...
-
Page 17: Support & Service
SUPPORT & SERVICE CORE CONNECT Core Connect is your portal to all things service! Whether you need to order parts or register your warranty, Core Connect is the most effective way to get what you need fast and keep your facility operating smoothly. OFFERS 24-HOUR SELF SERVICE ACCESS TO: •... - Page 18 THIS PAGE INTENTIONALLY BLANK Page 17...
- Page 19 THIS PAGE INTENTIONALLY BLANK Page 18...
- Page 20 © 2023 CORE HEALTH & FITNESS LLC PART NUMBER 620-9033, REV A All rights reserved. Star Trac, the Star Trac logo and StairMaster are registered trademarks of Core Health & Fitness, LLC. Schwinn and Nautilus are registered trademarks of Nautilus Inc. used under license to Core Health & Fitness LLC. Throwdown is a registered trademark of Throwdown Industries, LLC.
