Technical Procedure
Please see below to determine if the adapter kit needs to be installed as well as
the instructions for replacing the belt.
Required Parts:
•
731-8474-KT "KIT, ASSY, BELT, GLUTE DRIVE"
Required Tools:
•
16mm Socket
•
16mm Open-ended Wrench
•
5mm Allen Key

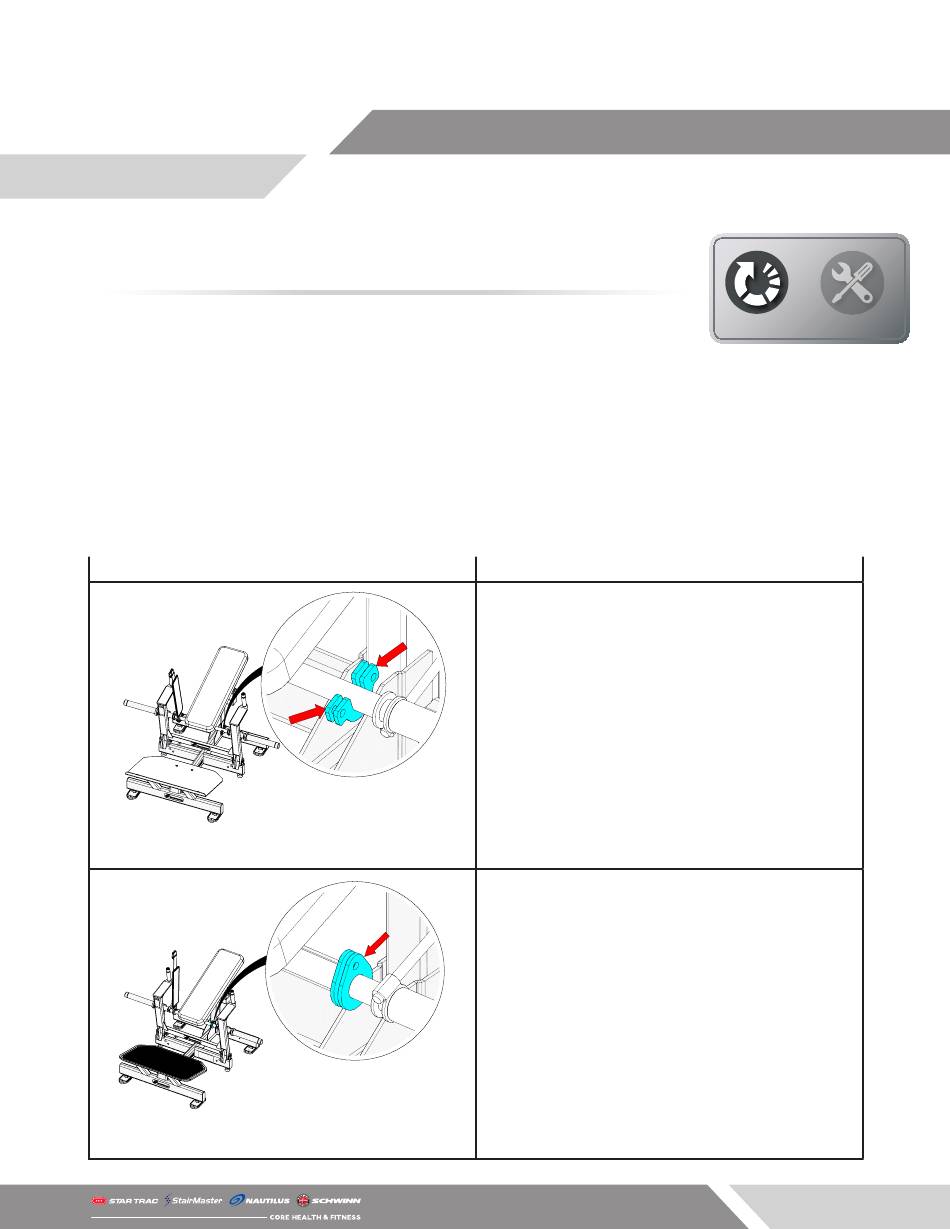

Visually inspect the Glute Drive seatbelt attachment point to determine if the adapter kit is
needed - See matrix below:
Seatbelt Attachment Point Design
Half-Moon, Double-Point Attachment
BEFORE S/N: NPL1131-L18121032
Teardrop, Single-Point Attachment
AFTER S/N: NPL1131-L18121031
Glute Drive Seatbelt Replacement

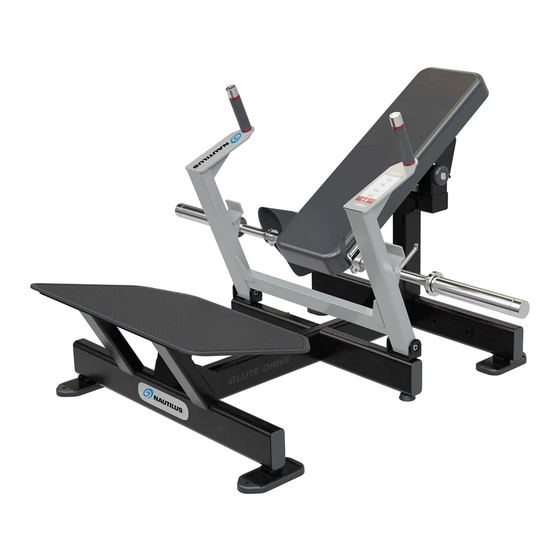

Applies to: Glute Drive (9NP-L1131)
Adapter Kit Needed?
YES
See - Page 2,
Step 1
NO
See - Page 3,
Step 1
Links
Latest Rev.
Service Manual
Page 1
620-8692 Rev. B
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Core Health & Fitness 9NP-L1131
Summary of Contents for Core Health & Fitness 9NP-L1131
- Page 1 Technical Procedure Glute Drive Seatbelt Replacement Applies to: Glute Drive (9NP-L1131) Links Please see below to determine if the adapter kit needs to be installed as well as Latest Rev. Service Manual the instructions for replacing the belt. Required Parts: •...
- Page 2 Technical Procedure Half-Moon, Double-Point Attachment: Use a 16mm socket and a 16mm open-ended wrench to remove the hardware securing the left side belt to the weight bar. Place one adapter plate between the two belt mount brackets on the weight bar and the other adapter plate on the outside of the outer mounting bracket.
- Page 3 Technical Procedure Teardrop, Single-Point Attachment: Use a 5mm allen key and a 16mm open-ended wrench to secure the belt to the weight bar belt mount using one (1) piece each of the M8 nut, M8 washer, and M10 x 16mm shoulder bolt. Page 3 620-8692 Rev.
