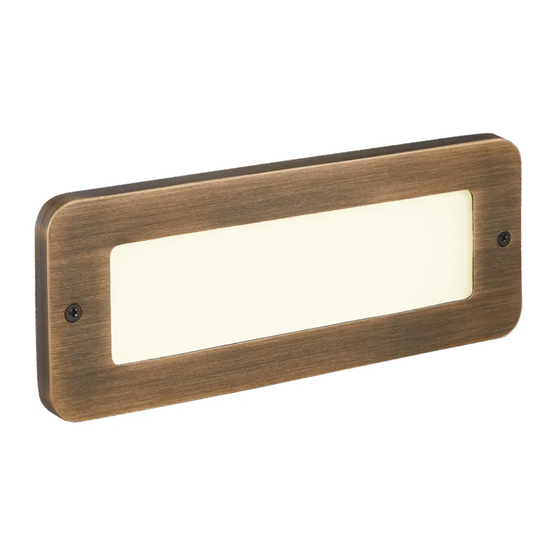

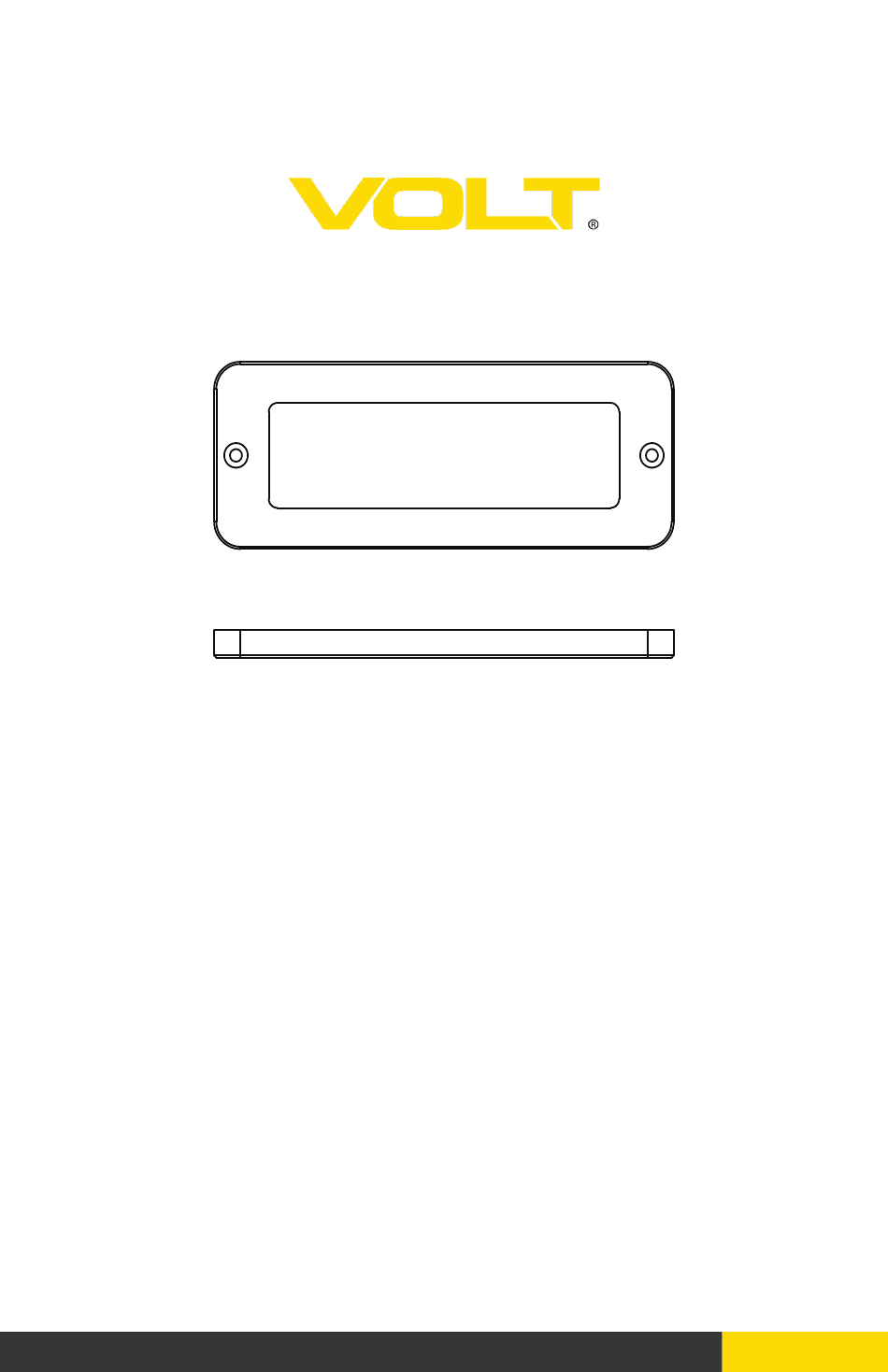

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Mini LED Brass Step Light ® ITEM: VHS-610X 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS VOLT Mini LED Brass Step Light VHS-610X ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Luminaire B. (2) Anchors C. (2) Screws PRODUCT DIMENSIONS 8.25” 3.25” 0.75” VHS-6100-4-BBZ 8.25” 3.25” 1.5” VHS-6101-4-BBZ 8.25” 3.25” 0.5” VHS-6102-4-BBZ 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com... - Page 4 INSTALLATION INSTRUCTIONS VOLT Mini LED Brass Step Light VHS-610X ® Install Luminaire NOTE: Note: Anchors are required Must be mounted with the for concrete or brick walls. wire exit on the left. Hold the luminaire on the wall and mark two points for the anchors using the mounting holes as guides.
- Page 5 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 6 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
