- Page 1 SAILOR 900 Heater Option Installation guide Cobham Public...
-
Page 2: Record Of Revisions
Manuals issued by Thrane & Thrane A/S are periodically revised and updated. Anyone relying on this information should acquire the most current version e.g. from www.cobham.com/satcom, Cobham SYNC Partner Portal, or from the distributor. -
Page 3: Connecting Ac Power

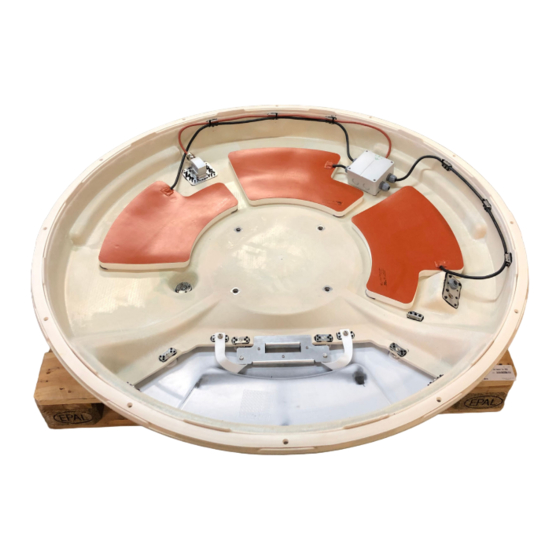

Introduction The SAILOR 900 Heater Option consists of three 250 W heater mats glued into the bottom of the SAILOR 900 VSAT radome bottom (total 750W). A thermostat switches the heating mats on and off, depending on the temperature inside the SAILOR 900 VSAT radome. The thermostat is activated at -15°... -
Page 4: To Connect Ac Power
To connect AC power To connect AC power Tools needed: small flat-head screw driver To connect AC power, do as follows: 1. Open the service hatch. 2. Insert the AC cable through the cable gland. Recommenced cable type: Minimum 1.5mm² 3-core LSZH electrical cable.. Connection Cable hole for AC cable... -
Page 5: Technical Specifications
Technical specifications 8. Put the lid on the connection box and fix it with the four screws. 9. Secure the AC cable with cable strips as shown below. Figure 1-4: Securing of the AC cable 10.Close the service hatch. Technical specifications Item Specification Input power... - Page 6 98-174729-A www.cobham.com/satcom Cobham Public...
