Icom IC-730 Maintenance Manual page 22

6 – 3 ASSEMBLY PROCEDURE
6 – 3 – 1 INSTALLATION OF THE IC-EX195
(MARKER UNIT)

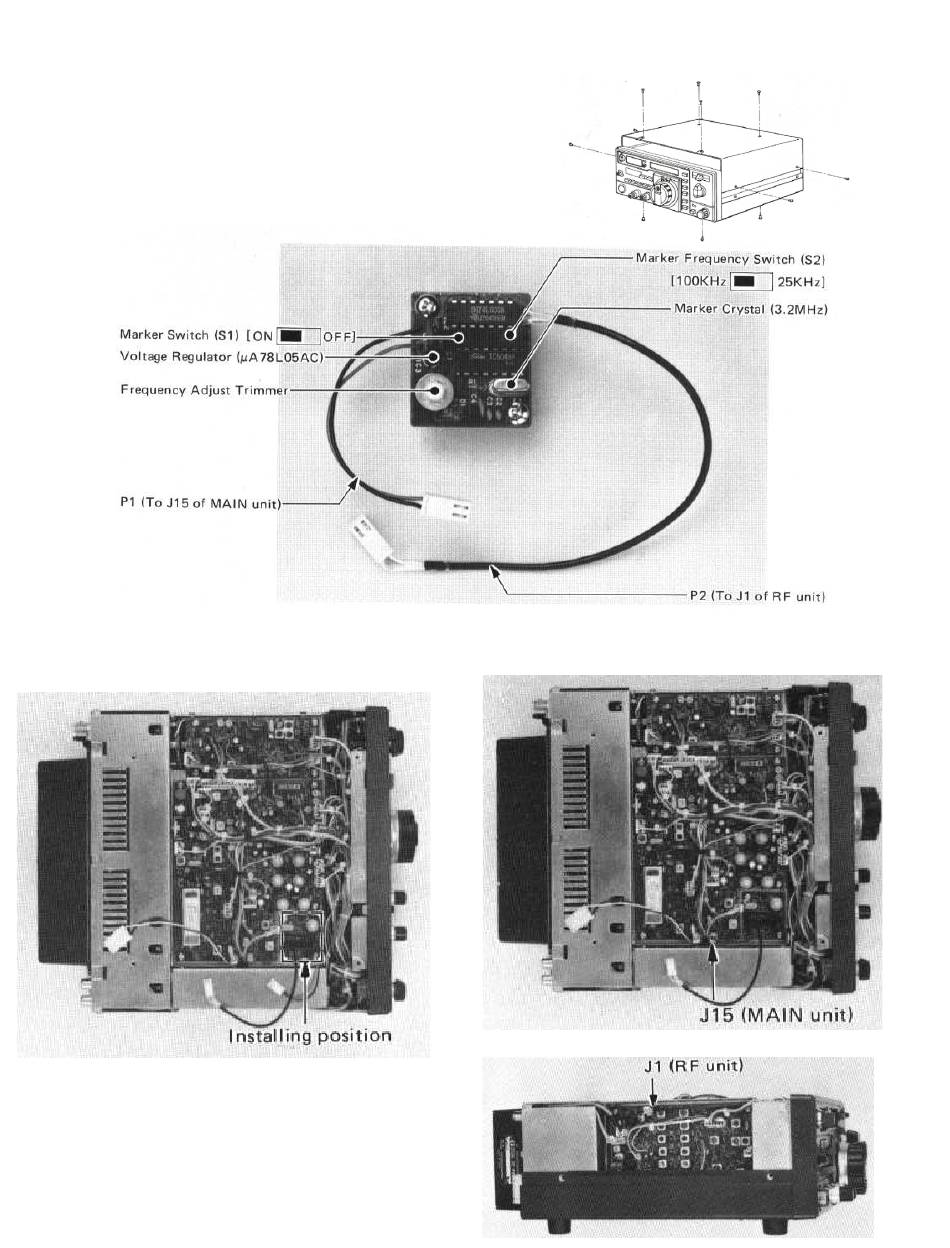

1. PARTS LOCATION
2. ASSEMBLY PROCEDURE
(1) Install this unit in the position shown in the photo using the
attached screws.
When installing IC -EX202 and/or IC·EX205. also remove the
bottom cover by unscrewing the four screws on the bottom.
(2) Plug P1 of this unit to J15 of the MAIN unit.
(3) Plug P2 of this unit to J1 of the RF unit.
6 – 2
