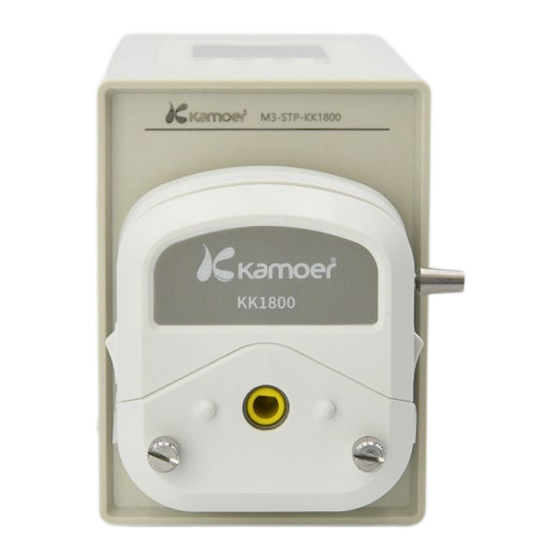

- Page 1 M3-STP-KK1800 Intelligent Peristaltic pump User Manual A0 2023-05-30 Kamoer Fluid Tech(Shanghai) Co.,Ltd. www.kamoer.com...
-
Page 2: Table Of Contents
Catalog Quality Assurance ........................2 NOTICE ............................3 1.Product Description ....................... 4 1.1 Introduction ..........................4 1.2 Key Function ..........................5 1.3 Unpacking ........................... 5 2．Operation ..........................6 2.1 Continuity Mode ......................... 6 2.2 Ration Mode ..........................7 2.2.1Ration mode settings ......................8 2.3 Remote Mode .......................... -
Page 3: Quality Assurance
Quality Assurance 1. Warranty conditions The free service during the warranty period is only valid under normal use and maintenance according to the user manual, and all man-made failures or damages are not covered by the warranty. Users please keep the purchase invoice and user manual well, so that you can get satisfactory after-sales service in time. -
Page 4: Notice
NOTICE This product is designed to fully consider the safety of users, please read the user manual carefully before use, and use it correctly according to the requirements of this manual. Any incorrect operation will have the potential to be dangerous. 1. -
Page 5: Product Description
1.Product Description 1.1 Introduction The M3 series peristaltic pump uses stepper motor control, buttons and display for easy operation. At the same time, it contains a variety of external control interfaces such as foot switches, RS485, 0~5V, 4~20mA and other analog quantities, which can be easily used by supporting PLC and other equipment. -
Page 6: Key Function
1.2 Key Function 1. Menu, click to enter the system menu 2. Settings, click to enter the working mode setting function, in the process of modifying parameters, you can also click the setting button to make the modified parameters take effect 3. -
Page 7: 2．Operation
2．Operation 2.1 Continuity Mode Continuity mode is used in this scenario, where the pump will run until it triggers a stop again; Enter the continuity mode working interface through the menu - > continuity mode; Already in continuity mode, automatically enter continuity mode after powering back on. -
Page 8: Ration Mode
2.2 Ration Mode The ration mode is to set a ration amount to the pump, and the pump stops after this dosing runs, which is suitable for use in filling scenarios. In ration mode, a time interval and a target number of runs can be set in each quantitative working room during the working process, so that the pump can run at a certain time interval. -
Page 9: 1Ration Mode Settings
2.2.1Ration mode settings Click the setting button in the quantitative mode to enter the quantitative mode setting interface, in the quantitative mode setting menu, switch the menu through the + and - buttons, and press the setting button to enter the setting interface of the corresponding menu: a、... -
Page 10: 10V Control
other equipment to complete automatic control. The definition of the interface behind it is referred to above. 2.3.1 0~5V/10V Control a、Remote control mode selection： b、0~5V control： c、Running direction：Running direction setting, switching through the direction button d、Real-time operation speed：Display the speed corresponding to the analog quantity e、Operating status In the 0~5V analog control interface, click the setting button to enter the analog... -
Page 11: Rs485 Control
2.3.2 RS485 Control Default serial port configuration 485 serial port default configuration (configurable) Baud rate Check Data Stop bit Hardware control flow 9600 None Coil Support function codes： 0x01 Read multiple coils 0x05 write singe coil 0x0F write multiple coils Content of the agreement Address Parameter... - Page 12 Enter the commands supported by the registers Support function codes: 0x04 Read multiple input registers Contents of the agreement: Address Parameter Notes Firmware version 3+5+8 (major version + 0x3001 minor version + revision) Hardware version 3+5+8 (major version + 0x3002 minor version + revision) 0x3003 Abnormal status...
-
Page 13: System Menu
2.4 System Menu Click the menu button on the working interface to enter the system menu, and you can set some general parameters in the system menu a、 Continuous mode：Click to enter continuous mode b、 Ration mode：Click to enter quantitative mode c、... -
Page 14: Calibration
l、 Power：Set the state at power-on, set to power-on on, in continuous mode and quantitative mode, it will automatically run after power-on m、 Reset：Restore factory defaults 2.4.1 Calibration When the flow rate on the interface does not match the actual flow, it is necessary to calibrate the flow, and enter the pump head calibration function from the system menu - >... -
Page 15: 3．Maintenance
3．Maintenance 3.1 Chemical compatibility The standard configuration of the pump tube is a silicone tube, which can be used in most applications. If you are delivering a specific solution, please contact the factory Contact to determine chemical compatibility and match the appropriate pump tubing. - Page 16 Addr: Building 4, No. 79 XiangJing Road, Songjiang District, Shanghai, China Phone: +86-021-67742578 Website: www.kamoer.com Kamoer is a registered trademark of Kamoer Fluid Tech (Shanghai) Co., Ltd. The company reserves the right to improve and change product appearance and technical specifications without prior notice.
