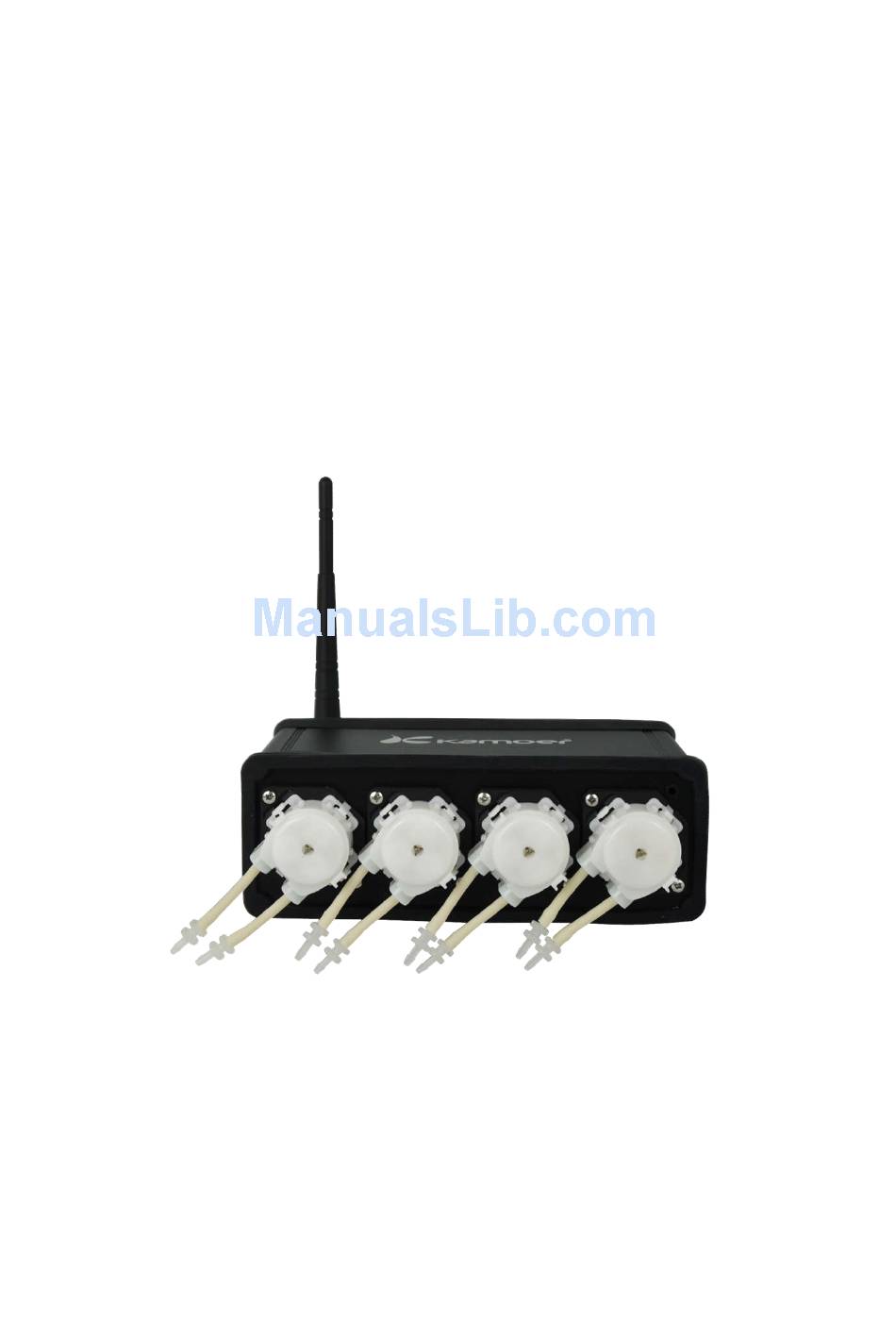

F4 Dosing Pump
User Manual
(V1.0)
Kamoer Fluid Tech (Shanghai) Co.,Ltd.
www.kamoer.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kamoer F4

  • Page 1 F4 Dosing Pump User Manual (V1.0) Kamoer Fluid Tech (Shanghai) Co.,Ltd. www.kamoer.com...
  • Page 2: Table Of Contents

    Contents WARRANTY ........................2 NOTICE ..........................3 1. INTRODUCTION ......................4 1.1 A ......................... 4 BOUT 1.2 U ........................5 NPACKING 1.3 S ....................5 TRUCTURE DIAGRAM 1.4 I ......................6 NCLUDED TEMS 1.5 T ....................7 ECHNICAL PARAMETER 2. USE ..........................8 2.1 S ....................
  • Page 3: Warranty

    You will be asked to furnish proof of purchase to confirm that the product is still under warranty. Kamoer is registered trademark of Kamoer fluid tech (shanghai) Co.,Ltd. We reserve the right to improve or alter appearance and technical specifications without notice.
  • Page 4: Notice

    Notice We have considered user safety in the design process. Please read this manual carefully. Any improper operation may cause damage or danger. 1. Safety The product belongs to Active Products. To avoid danger, you should observe the following rules. ...
  • Page 5: Introduction

    WIFI modules. It is mainly used to add various elements needed for the growth of marine life to aquarium regularly, quantitatively and accurately, such as calcium, magnesium, KH agent, trace element and so on. Through automated addition, F4 dosing pump greatly reduces the workload by manual and avoids missed addition, excessive addition, insufficient addition and other mistakes caused by manual addition.
  • Page 6: Unpacking

    1.2 Unpacking  Before unpacking, please check for damage by delivery.  Upon opening the package, please check that you have received all parts before using. The parts list is shown in Appendix B - Packing List. Please check whether the product has visible damage.
  • Page 7: Included Items

    1.4 Included Items 1.4.1 Pump head (tube included) Pump tube is installed in pump head. We provide PharMed BPT pump tube as standard, which provides a long continuous working life of up to 2000 hours. 1.4.2 Connecting pipe PVC transparent tube connected to the input or the output of pump. 1.4.3 Tube rack 1.4.4 AC/DC adapter The supplied AC/DC power adapter will support: China standard, European standard,...
  • Page 8: Technical Parameter

    1.5 Technical parameter Power adapter Parameters Input: Refer to the Power adapter label Output: DC12V 1000mA Working environment Operating Temperature: 0-70 ℃ Working Humidity: 10%-90% (non-condensing) Storage environment Storage Temperature: -20℃-85℃ Storage Humidity: 10%-90% (non-condensing) Dosing Dosing Channels: 4 Dosing times: 24 times/day--1 times/7 days Liquid volume: 1 ml-1000 ml Liquid accuracy: <±2% Pump Tube Life: >...
  • Page 9: Use

    Apple mob ile App 1. Scan QR code to download 2. Download via App Store Go to App Store, search "Kamoer" and select "Dosing pump 2" download.  Android mobile App 1. Scan QR code to download 2. Download via Google Player Go to Google Player, search "Kamoer"...
  • Page 10: Connection Setting

    WiFi list, the WiFi name of F4 dosing pump begins with "KAMOER-F4". If you can find the WiFi from the dosing pump in your mobile WiFi list, skip this step.
  • Page 11 2.2.4 Direct Connect Step 1: Power on the dosing pump, after entering the "Run" page, select the WiFi name begins with “KAMOER-F4” to connect in the WiFi list and the connection password is 12345678 Step 2: Open the app, the dosing pump will be shown in the device list, click it to...
  • Page 12 2.2.5 Auto Connect Step 1: Check if the firmware of dosing pump is 1.1.10 and above, if below 1.1.10 version, follow firmware upgrade tutorial to upgrade the firmware; Step 2: Install the latest version of the dosing pump App on the mobile phone and connect to the home router WiFi;...
  • Page 13: Software Use

    2.3 Software use Open the app into the search device page, the page shows the search of the dosing pump, click on the dosing pump, you can enter the dosing pump control interface. Click on the icon in the red box below to modify the dosing pump name and view the tutorial.
  • Page 14 b. The top left corner equipment list: Click to return to the search device interface. c. Ca, Mg, KH, K is the name of the pump head, can be set by user. The default name is pump-1, pump-2, pump-3, pump-4. d.
  • Page 15 Automatic mode setting Custom mode setting Enable plan When enable, the corresponding pump head will be automatically run according to the setting parameters, when disenable the pump head will stop running automatically. Daily dosing amount The total amount of liquid per day, automatic mode needs to set this parameter, custom mode does not need to set.
  • Page 16 Anti-chemical interference time to add, prevent the element at the same time to add chemical interference, 4 channels of chemical interference cannot be more than 55 minutes, the chemical-resistant interference function is only valid for automatic mode, custom mode needs user to set the interval time to achieve the effect of chemical interference.
  • Page 17 Click "Flow Calibration" in the upper right corner to enter the flow calibration page, as shown in the following figure. The purpose of the flow calibration is to improve the accuracy of the added element. a. Select Pump Head Optional pump 1, pump 2, pump 3, pump 4; b.
  • Page 18 2.3.4 Status page Liquid level status Bottle setting a. Liquid level status display description: Ca/Mg/KH/K:The name of pump head Total: Capacity of the dosing container Remaining: Current remaining amount of dosing liquid; Available: The remaining liquid is divided by the amount of the day, when the available days are less than 2 days, the text is warning red;...
  • Page 19: Maintenance

    (such as liquid) please specify otherwise. Kamoer Fluid Tech (Shanghai) Co.,Ltd. Tel:021-67742578 67741937 Fax:021-67741776 Website:www.kamoer.com Email: support@kamoer.com Zip code:201611 Kamoer is registered trademark of Kamoer Fluid Tech (Shanghai) Co.,Ltd. We reserve the right to improve or alter appearance and technical specifications without notice.
