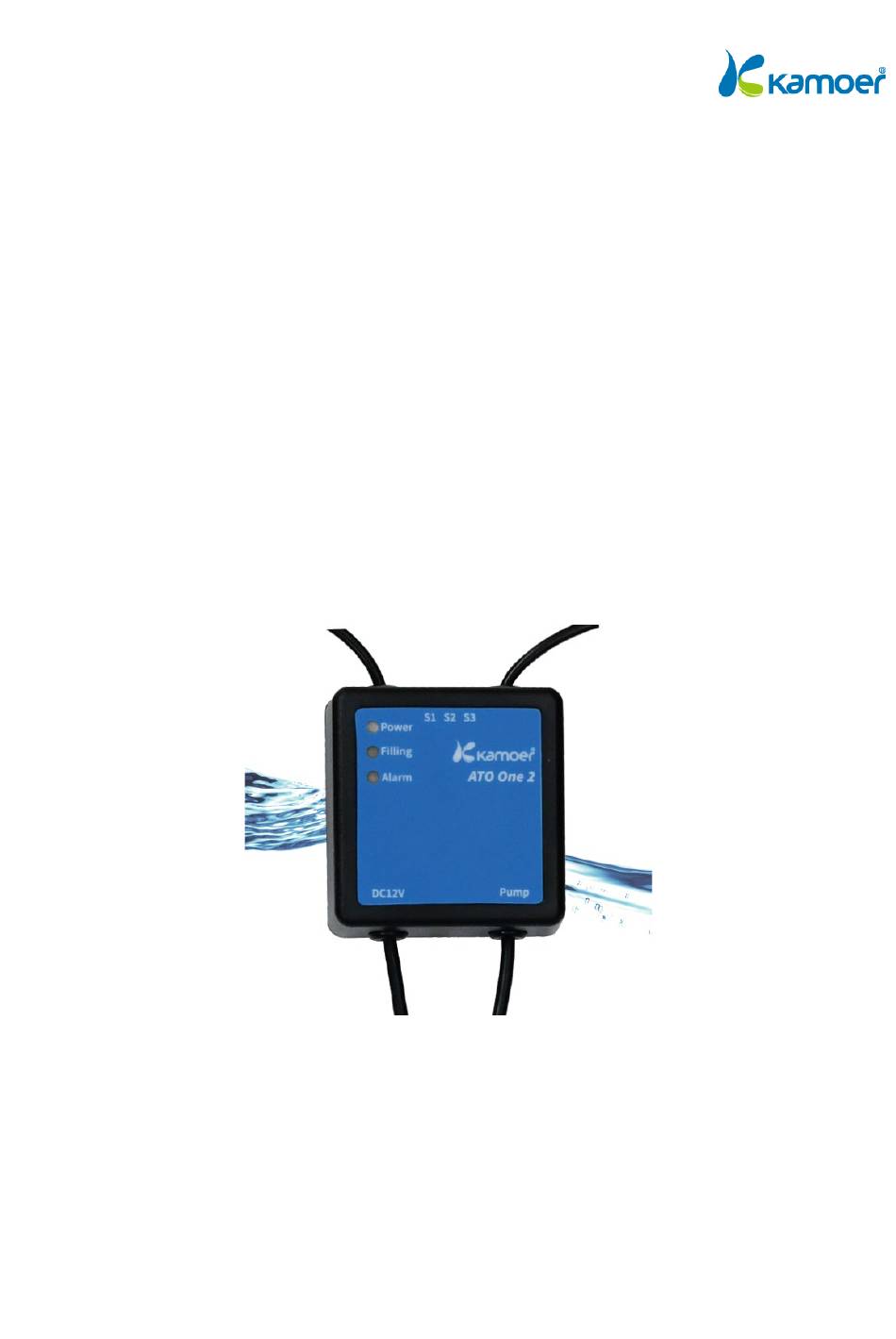

- Page 1 ATO One 2 Automatic Top-off System Quick Start Guide A1 2022-03-19 Kamoer Fluid Tech (Shanghai) Co., Ltd. www.kamoer.com...
- Page 2 Know ATO One 2 ATO One 2 is an automatic top-off device, which is an upgraded version of ATO One. It adopts a more compact and accurate optical liquid level sensor and a submersible pump with anti-dry function. There are two versions to choose from: submersible pump version and solenoid valve version.
-
Page 3: Panel Description

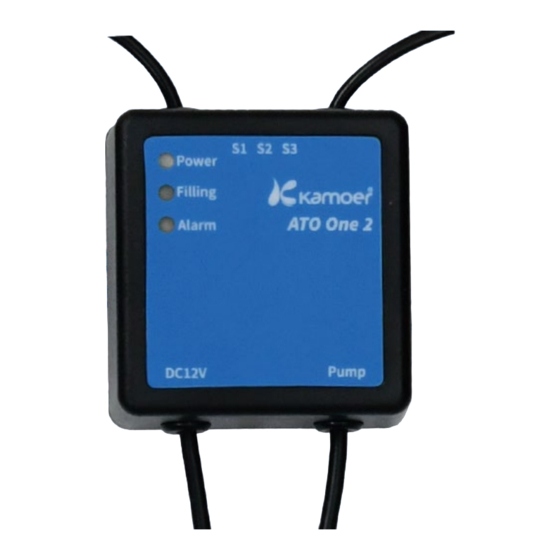

Panel description S1: Refill sensor (blue) S3: Anti-overflow sensor (red) DC12V: Power input Pump: Connect to refill pump or solenoid valve Power: Power indicator (green) Filling: Refill indicator (blue) Alarm: Alarm indicator (red) Installation ATO One 2 SE... - Page 4 1. Install the blue sensor (S1) at the normal water level for water replenishment detection. Note that the optical liquid level sensor should be kept away from air bubbles, otherwise it will be disturbed and cause misjudgment; 2. Install the red sensor (S3) above the normal water level line for anti-overflow detection.
- Page 5 ATO One 2 for RO 1. Install the blue sensor (S1) at the normal water level for water replenishment detection. Note that the optical liquid level sensor should be kept away from air bubbles, otherwise it will be disturbed and cause misjudgment;...
- Page 6 Alarm Status Alarm Take action 1. Check the connection of the buzzer and red light Submersible pump submersible pump (solenoid valve) on for 0.1 seconds, off (solenoid valve) is 2. If the problem is not solved in step 1, for 0.1 seconds not connected or replace the submersible pump (solenoid (high speed)
-
Page 7: Technical Parameter
PVC tube 8*11mm; transparent meter Siphon break 1/4 straight through DC12V power adapter US/EU/UK/AU Quick start guide English ATO One 2 for RO Name Specification Unit Controller ATO One2 Plastic magnet Black Solenoid valve 12V 6W Tube holder... -
Page 8: Warranty & Service
Kamoer Fluid Tech (Shanghai) Co., Ltd. Addr: Building 4, No.79 Xiangjing Road, Songjiang District, Shanghai Website: www.kamoer.com Kamoer is registered trademark of Kamoer Fluid Tech (Shanghai) Co., Ltd. We reserve the right to improve or alter appearance and technical specifications without notice.
