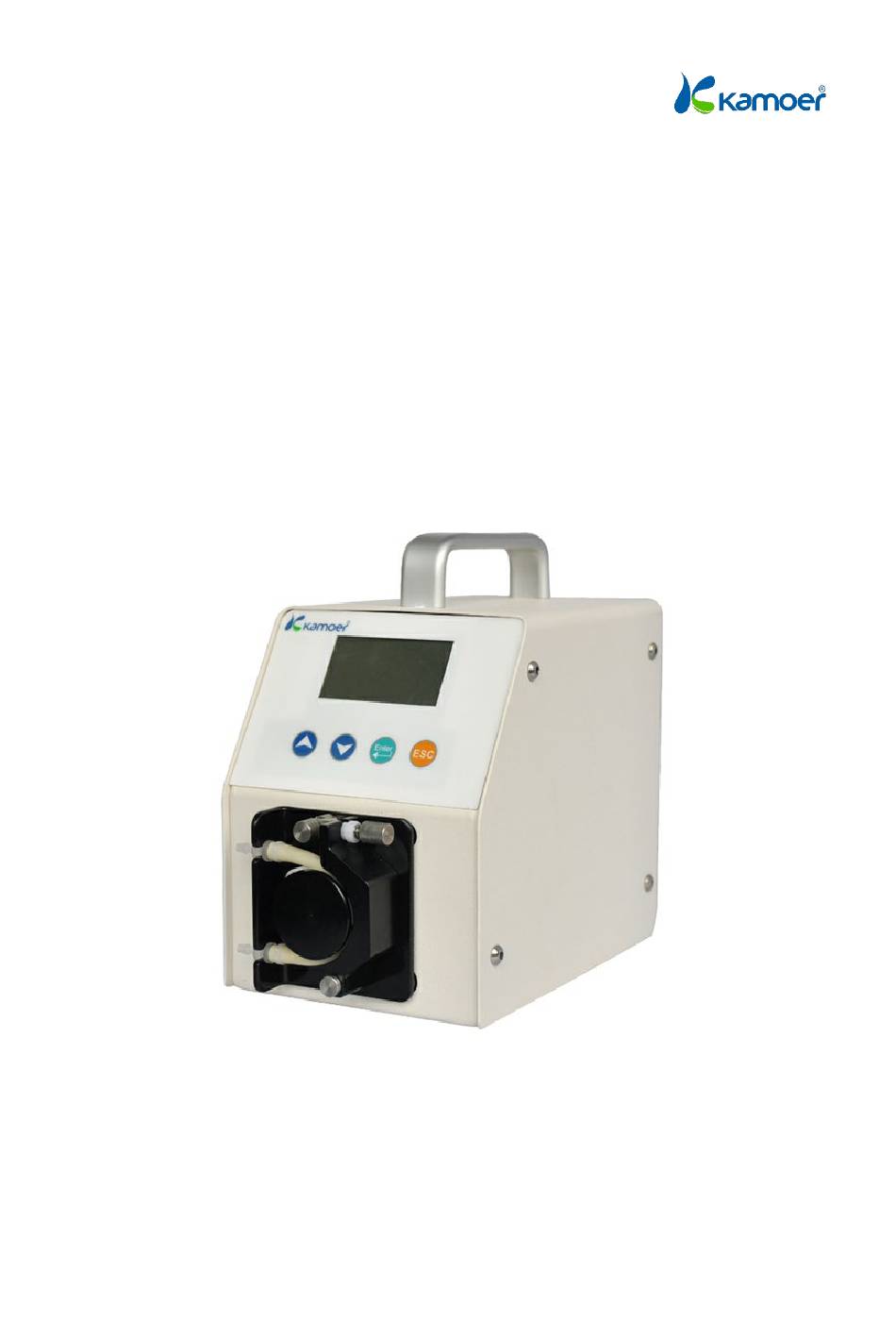

- Page 1 LLS Plus (V2) Peristaltic Pump User Manual A1 2023/03/15 Kamoer Fluid Tech (Shanghai) Co., Ltd. www.kamoer.com...
-
Page 3: Table Of Contents
Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual Contents CONTENTS ..........................1 WARRANTY SERVICE ......................2 NOTICE ........................... 3 PRODUCT INTRODUCTION ..................4 BOUT ..........................4 NPACKING ........................4 OMPONENTS ........................5 OPERATION ........................6 OWERING ........................ -
Page 4: Warranty Service
Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual Warranty service 1. Warranty Conditions The warranty service is only valid for users who have correctly installed, used and maintained in accordance with the manual, and all man-made faults or damages are not covered by the warranty. -
Page 5: Notice
Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual Notice We have considered the safety of the user in the process of design of the instrument. Please read the manual carefully for installing and use of the instrument. Any improper operation may cause damage or danger. -
Page 6: Product Introduction

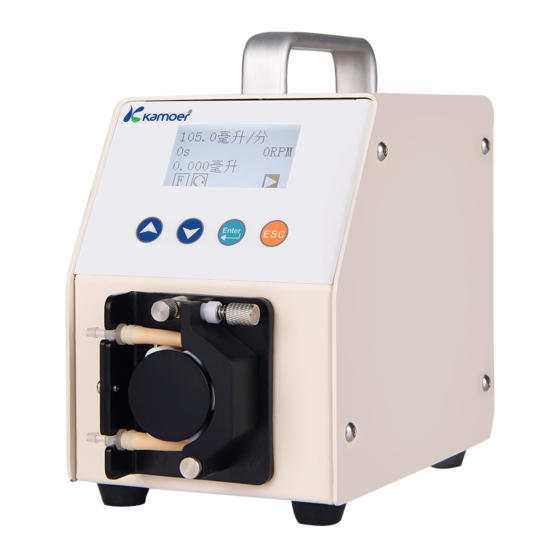

1 Product introduction 1.1 About The LLS Plus series peristaltic pumps are controlled by stepper motors and are commonly used in low-flow and high-precision applications. Using 128 x 64 LCD display, touch button operation, simple and convenient; Using AC direct power, wiring is simple. The product appearance diagram is shown in Figure 1.1. -
Page 7: Components
LLS Plus Peristaltic Pump User Manual 1.3 Components The LLS Plus peristaltic pumps consist of a drive unit and a control unit. The control unit completes the functions of displaying and controlling the drive unit. It adopts 128x64 LCD display and touches the button operation, as shown in Figure 1.2. -
Page 8: Operation
2 Operation 2.1 Powering On Connect one end of the power cable to the power connector on the back shell of the LLS Plus peristaltic pump, and connect the other end to 220V AC. After turning on the power switch, the power-on screen is displayed, as shown in Figure 2.1:... -
Page 9: Run
Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual In order to understand the menus, please see menu flowchart in figure 2.4 Figure 2.4 Menu flowchart 2.2.1 Run On the main menu page, select 1 Flow Mode (F) or 2 Allocate Mode (A) and press Enter to enter the corresponding mode operation page. -
Page 10: Allocate Mode Settings
Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual Figure 2.6 shows Allocation Mode. Figure 2.6 Use the Up or Down key to switch the position, the switch to the position will be displayed in reverse color, and then press Enter to change the running direction and running status. -
Page 11: Maintenance
Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual new set value, and press the Esc key to cancel the setting, which is still the previous set value. Select "2 Times" on the allocate settings page and press Enter to enter the allocate times settings page, as shown in Figure 2.9. - Page 12 Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual The drain function is used to quickly fill or drain the line. Select "1 Empty" and press Enter to enter the pump cleaning page, as shown in Figure 2.13.
-
Page 13: Settings
Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual 1.352ml 18.30ml/min 0.18ml/r*min Stop Figure 2.16 Press Enter during calibration to stop scaling. After the calibration is completed, will automatically enter the calibration volume setting page, as shown in Figure 2.17. - Page 14 Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual Selecting "1 Information" displays the serial number, hardware version, and software version if shown in 2.19. 1 Information 2 Language Hardware 3 Tube Usage Software 4 Foot Switch Figure 2.19...
- Page 15 Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual high level stop). Among them, edge triggering supports flow mode and distribution mode, and high-level trigger and low-level trigger only support flow mode. Select "5 Suction" and press Enter to enter the Suction page, as shown in Figure 2.23...
- Page 16 Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual Select "7 Alarm" and press Enter to enter the alarm settings page, as shown in Figure 2.25. 5 Suction Buzzer: ON 6 485 Settings 24V Output: ON 7 Alarm 8 Factory Reset Figure 2.25...
-
Page 17: Maintenance
Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual 3 Maintenance 3.1 Chemical Compatibility The standard configuration of the pump tube is silicone tube, it can be applied to most cases. If with application-specific liquid, please contact with the manufacture to confirm the chemical compatibility. -
Page 18: Appendixes
Kamoer Fluid Tech (Shanghai) Co., Ltd. LLS Plus Peristaltic Pump User Manual Appendixes Appendix A Technical Specifications Drive Stepper motor Power Input: AC100-240V Requirements Output: DC24V Power Rating 50 W Weight 2.5Kg Dimensions 204*115*188 mm Working Temperature: 0℃～60℃, Environment Humidity: <80%RH without condensation... - Page 20 Address: Building4, No.79 Xiangjing Road, Songjiang District, Shanghai Website：www.kamoer.com Kamoer, Kamoer text and icons are registered trademarks of Kamoer Fluid Technology (Shanghai) Co., Ltd. The company reserves the right to improve and change the product appearance and technical specifications without prior notice.
