Summary of Contents for Kamoer FX-STP
- Page 1 FX-STP WIFI Calcium Anti-pump User Manual 2022-03-11 Kamoer Fluid Tech(Shanghai) Co.,Ltd. www.kamoer.net...
-
Page 2: Read The Tips
Kamoer provides the following documentation for FX-STP WIFI users 1.《FX-STP WIFI User Manual》 2.《FX-STP WIFI Quick Start Guide》 It is recommended that users first read the FX-STP WIFI Quick Start Guide to understand the usage process. For more product information, please read the FX-STP WIFI User Manual. - Page 3 Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual FCC warning This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Download The App
2. Apple users enter the App Store, Android users enter the Baidu App Store, search for "Kamoer Remote", find the corresponding icon of the app download. The Kamoer Remote App supports Android 4.4 and above, and iOS 9.1 and above. Get the Tutorial... - Page 5 Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual...
-
Page 6: Table Of Contents
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Directory Read the Tips Symbol Description Use Recommendations Download the App Get the Tutorial Product Overview Brief Introduction Feature Highlights Applications Out-of-the-Box Preparation Part Name and Line Connection Product Installation Operate the device with a knob... - Page 7 Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Overview of Calcium Anti-pump Control Interface Setting Up the Interface Flow Calibration Firmware Upgrades Attached Technical Parameters After-sales Warranty Information...
-
Page 8: Product Overview
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Product Overview This chapter mainly introduces the characteristics of FX-STP WIFI calcium anti-pump, application and out-of-box instructions. -
Page 9: Brief Introduction

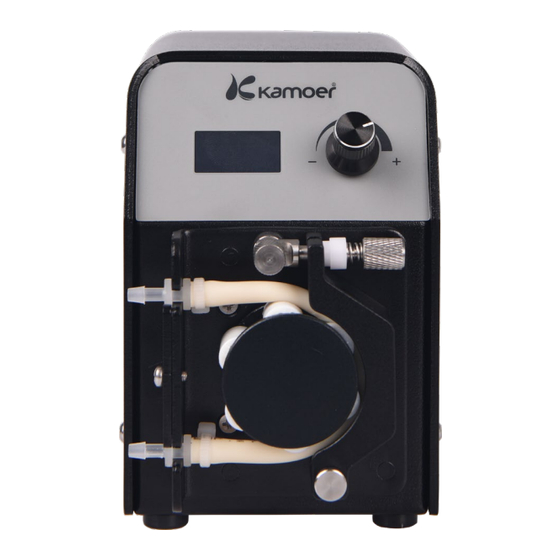

Product Overview Brief Introduction FX-STP WIFI peristaltic pump is a high-flow, high-precision step peristaltic pump, with high precision, screen display, low noise, maintenance-free and other advantages. The appliance can be operated via a button or remotely controlled with your mobile phone via Wi-Fi. -
Page 10: Applications
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Applications Marine life breeding Out-of-the-Box Preparation Before opening the box, check if the outer packaging is damaged during transport. After opening the box, refer to the packing list in the appendix to make sure that all ... - Page 11 Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Line Connection Diagram Speed Adjustment Display screen Button Connect Sea tank 3.2*6.4 Tube Calcium Connect 24V Power Anti-pump supply(Back) 6.4*9.6 Tube 3.2*6.4 Tube 1/8 to 1/4 connector...
-
Page 12: Product Installation
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Product Installation This chapter focuses on how to install the FX-STP WIFI calcium anti-pump, as well as the precautions during installation. - Page 13 Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Product Installation This calcium anti-pump belongs to the self-absorbing pump, when the inlet and outlet drop too much, may produce siphon or return phenomenon. In order to avoid siphoning and return, the titration pump should be placed in a reasonable position to ensure that the height difference between the inlet and the outlet is within 0.5 meters.
-
Page 14: Operate The Device With A Knob
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Operate the device with a knob This chapter focuses on how to control FX-STP WIFI calcium anti-pump using the knob on the device... -
Page 15: Screen Status Description
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Operate the device with a knob Screen Status Description Work Mode NET O Running... 60.0ml/min WiFi Control Running... 60.0ml/min a.Work Mode: indicates the functional position of the interface, and the operating mode indicates that the machine is working on the home page b.Work Status Indication: In the non-lock screen state, press the button, the pump... -
Page 16: Pump Operation Control
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual f.App Control: The interface displayed when the phone app controls, when the interface is in the app control, the knob can not control the device. Pump Operation Control Work Mode NET O Work Mode NET O Running... -
Page 17: Calibration
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Language: the language of the pump; Bid: click to enter the pump's bid interface; WiFi: click to enter the pump distribution network function interface, the specific operation refers to the app distribution network chapter;... - Page 18 Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Calibrate Calibrate Calibrate Calibrate 120.0rpm E:120.0rpm 120.0rpm 120.0rpm 48.0ml/min 48.0ml/min 48.0ml/min 48.0ml/min Calibrate Calibrate 120.0rpm 120.0rpm E:48.0ml/min 49.0ml/min Prepare a measuring tube, put the pump pipe out of the pipe into the measuring tube, into the water, ready to set the standard;...
-
Page 19: App Use
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual APP Use This chapter focuses on how to use the App to control FX-STP WIFI calcium anti-pump. -
Page 20: Connect Titration Pumps To The Cloud
1-2. Open the app, click the "button" button in the upper right corner of the device to add the device, select "Add device" to enter the add device interface, select "Kamoer-FX-STP" in the list of supported devices and click Enter;... - Page 21 Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Make sure your phone connection requires Wi-Fi with a network, and make sure that the Wi-Fi can be connected to the extranet (the device does not support 5G Wi-Fi and cannot use 5G Wi-Fi hot spots);...
- Page 22 Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Operating equipment into the distribution network state, the device into the distribution network state, in the device distribution network state, click on the App "light in flashing" button to start the distribution network;...
- Page 23 Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Wait for the network connection success, after the successful connection, the app will pop up the interface of the connection success; In this interface click "Start to use" to enter the device list interface, at which point red light is long, representing the titration pump has been connected to the cloud, the user has also completed the binding to the titration pump.
-
Page 24: Binding Titration Pump
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Binding Titration Pump There are two ways for a user to bind a device, the first is to bind the device through the redistribution network above, and the second way is that the device is already connected to the cloud via a wireless router, where the phone can be connected to the wireless router and the app will be available locally. -
Page 25: Overview Of Calcium Anti-Pump Control Interface
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual 3. After the success of the binding will pop up the binding success prompt, click to start, back to the list of devices; Overview of Calcium Anti-pump Control Interface Open the app and click on the calcium anti-pump in the device list to enter the... - Page 26 Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Flow rate minimum: Current flow rate: the current flow rate of this machine, you can click on the settings. Maximum flow rate: The maximum flow rate of this machine. Current speed: Change according to the set flow rate.
-
Page 27: Setting Up The Interface
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Setting Up the Interface In the list of planned channels, we can see the basic information of each pump operation: Firmware version: indicates which pump head, the name of the pump head is set in the settings module;... -
Page 28: Flow Calibration
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual use of the pump tube; Flow calibration: the flow calibration of the equipment is performed here; Factory reset: after clicking the device parameters restored to the factory default settings; h. Delete devices: Click untie the app and the device's binding. - Page 29 Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Flow rate calibration: click on the flow rate calibration in the setting s --coma interface, and bring out the flow rate calibration channel selection interface; Speed setting: set the speed of calibration;...
-
Page 30: Firmware Upgrades
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Firmware Upgrades When the pump's firmware program is updated, the user needs to upgrade the firmware to use. The current version of the firmware; New version prompt: If there is a new version, this will have a new version prompt;... -
Page 31: Attached
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual fails, repeat the upgrade step. Note: You cannot power down during the upgrade and the app does not take any other action during the upgrade process. Attached... -
Page 32: Technical Parameters
Kamoer Fluid Tech(Shanghai) Co.,Ltd. FX-STP WIFI User Manual Attached Technical Parameters Dimensions (Lx W x H) 136x87x124 mm Weight 1163g（No power adapter included） Input：100VAC-240VAC Power Adapter Output：DC24V 1.9A Pump Head:6 Rotor KCS Titration Parameters Flow：<120ml/min Precision：<±2% Interface WiFi Rotating Encoder/WiFi... - Page 33 9)Consumable consumables (e.g. pH electrode, ORP electrode, etc.); 10)The warranty period expires. Kamoer, Kamer text and icons are registered trademarks of Kamoer Fluid Tech(Shanghai) Co., Ltd. The Company reserves the right to improve and change the appearance and specifications of the product with without notice.
