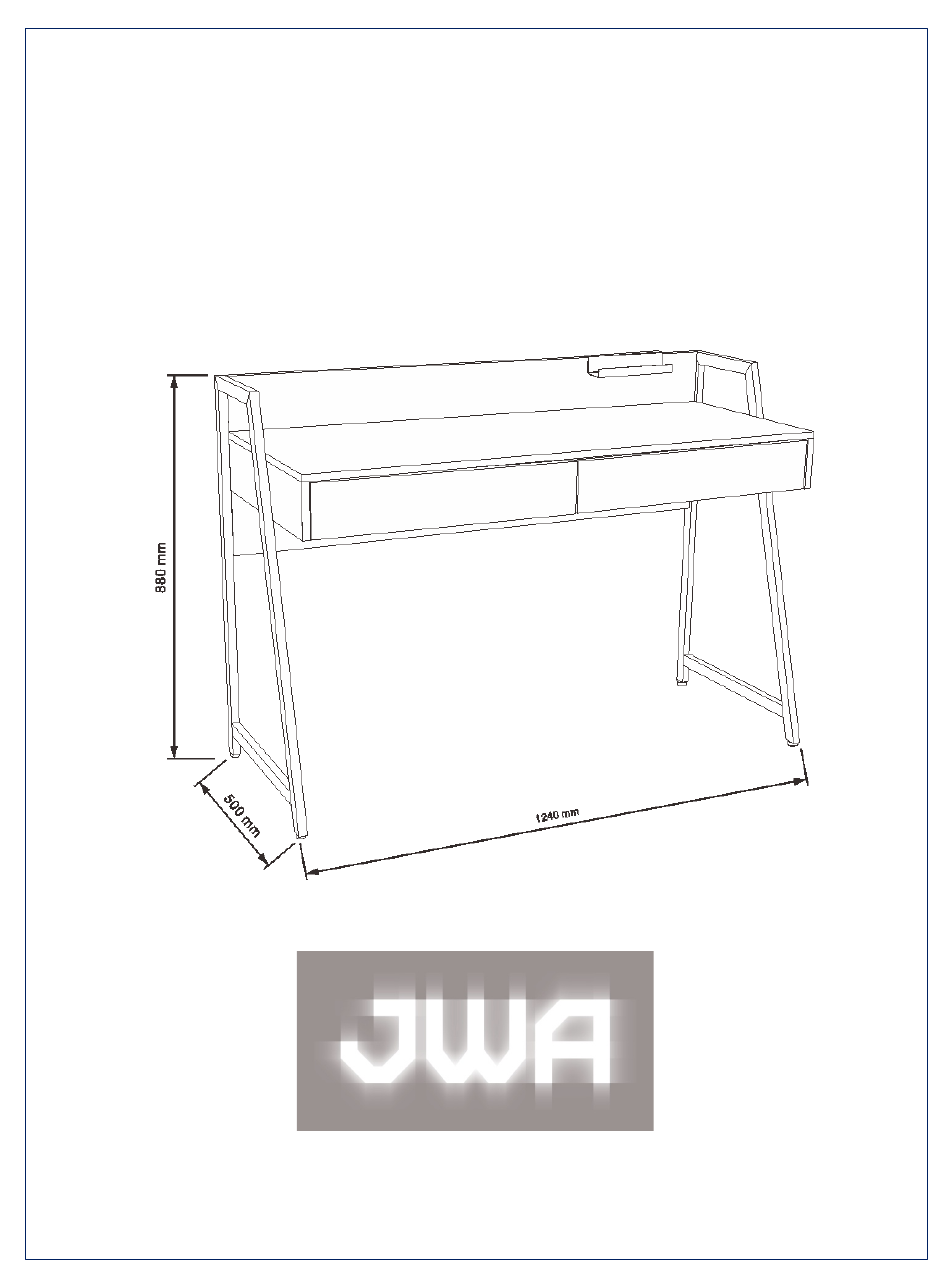

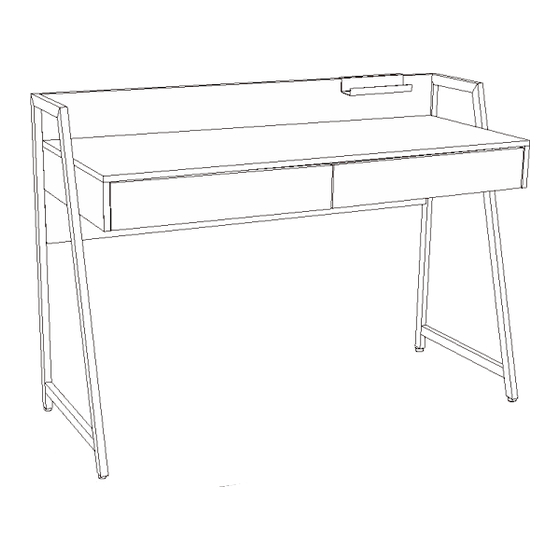

- Page 1 ASSEMBLY INSTRUCTION SOLIHULL DESK ITEM CODE 69492 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Before You Start
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST Top panel Left side panel Right side panel Middle panel Back panel Drawer Left side panel Drawer right side panel Drawer Left side panel Drawer right side panel Drawer back panel Drawer bottom panel Metal frame Connection pipe... - Page 5 STEP 1: Press the plastic clasp in the fitting E2 and disassemble E1 and E2. STEP 2: Install E1 on Panel 2, Panel 3, and both side of panel 4 with fitting F.
- Page 6 STEP 3: Install fitting H to I1. STEP 4: Assemble and connect Panel 5 to I1 with fitting D. While assembling , the belt L is mounted on the top of the connection hold between I1 and Panel 5 by fitting D.
- Page 7 STEP 5: Assemble the Panel 2,3 and 4 components to Panel 1 with fitting A and C. STEP 6: Assemble and connect the component, Panel 5 to I1 with fitting D.
- Page 8 STEP 7: Install I2 to the panel 4 with fitting D, and connect I2 to I1 with fitting B. STEP 8: Assemble Panel 8,9 and 10 with fitting D, and insert the Panel 11 accordingly to the gloove, then assemble Panel 6 and 7 respectively to the components with fitting A.
- Page 9 STEP 9: Install E2 to Panel 8 and 9 with fitting F. STEP 10: Insert the two drawers into the cabinets respectively.
- Page 10 STEP 11: Hang the fitting G as below picture, punch holes in the wall at the appropriate position and insert the glue K, lock screw J through H to the wall. ASSEMBLY IS COMPLETE...
- Page 11 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 12 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
