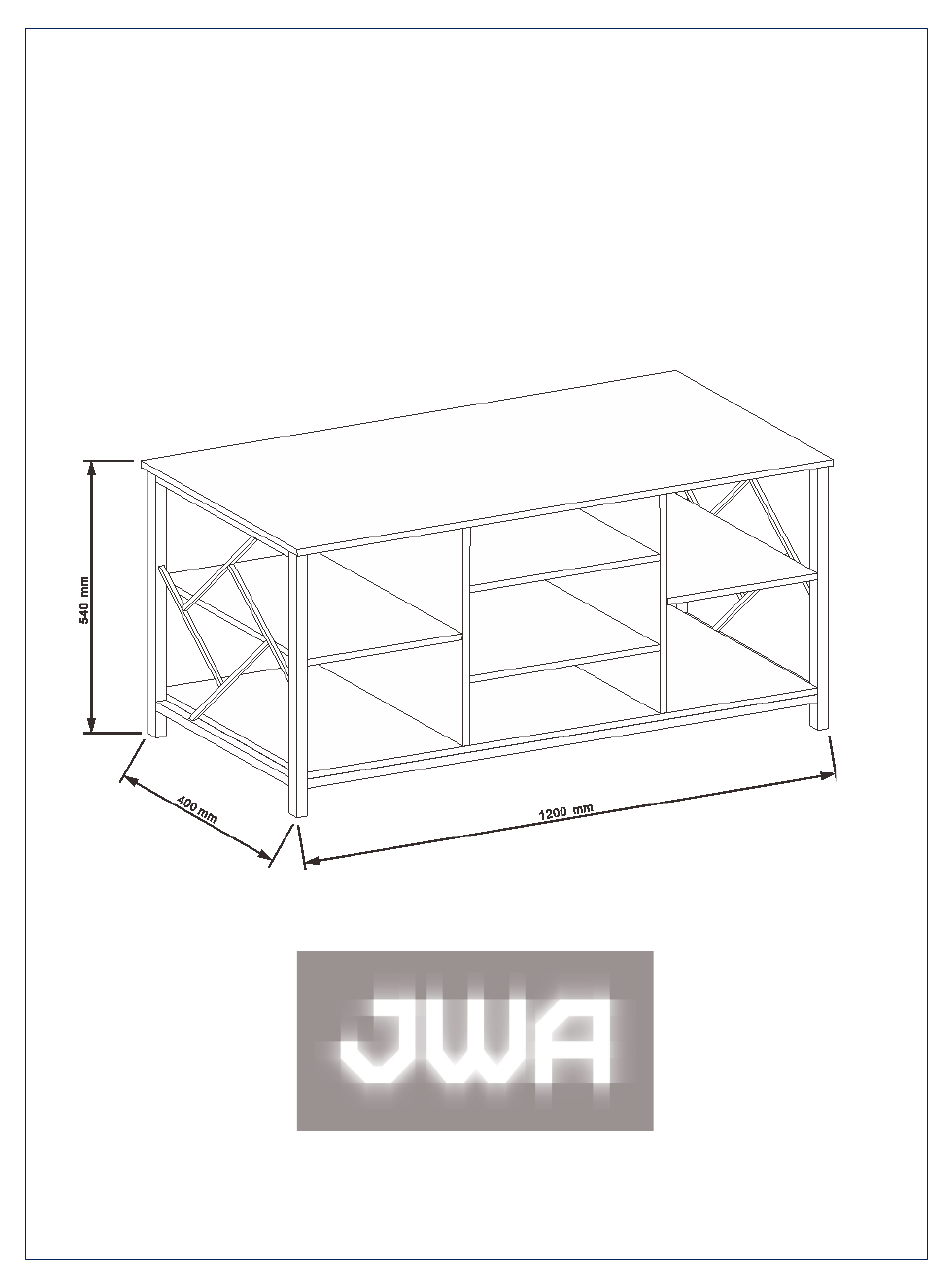

- Page 1 ASSEMBLY INSTRUCTION PINE CREEK ITEM CODE 69491 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Before You Start
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST Top panel Metal frame Bottom panel Connection pipe Middle panel Layer panel Layer panel... - Page 5 STEP 1: Connect F1 to F2 with fitting B, and lock. Then fix the four corner with fitting E and lock by the fitting C. STEP 2: Assemble the bottom panel 2 to the connection pipe with fitting B.
- Page 6 STEP 3: Assemble Panel 3 to panel 4 with fitting A. STEP 4: Assemble Panel 5 to panel 3 with fitting A.
- Page 7 STEP 5: Put the main frame down for easy installation. Assemble the component into the main frame and connect the Panel 3 to Panel 2 with fitting A. STEP 6: Assemble the Panel 5 to main frame with fitting D.
- Page 8 STEP 7: Install fitting I to the bottom of Panel with fitting G, and assemble Panle 1 to Panel 3 with litting A and connect to main fram with fitting B. STEP 8: Punch holes in the wall at the appropriate position and insert the glue J, lock fitting H through fitting I to the wall.
- Page 9 ASSEMBLY IS COMPLETE...
- Page 10 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 11 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
