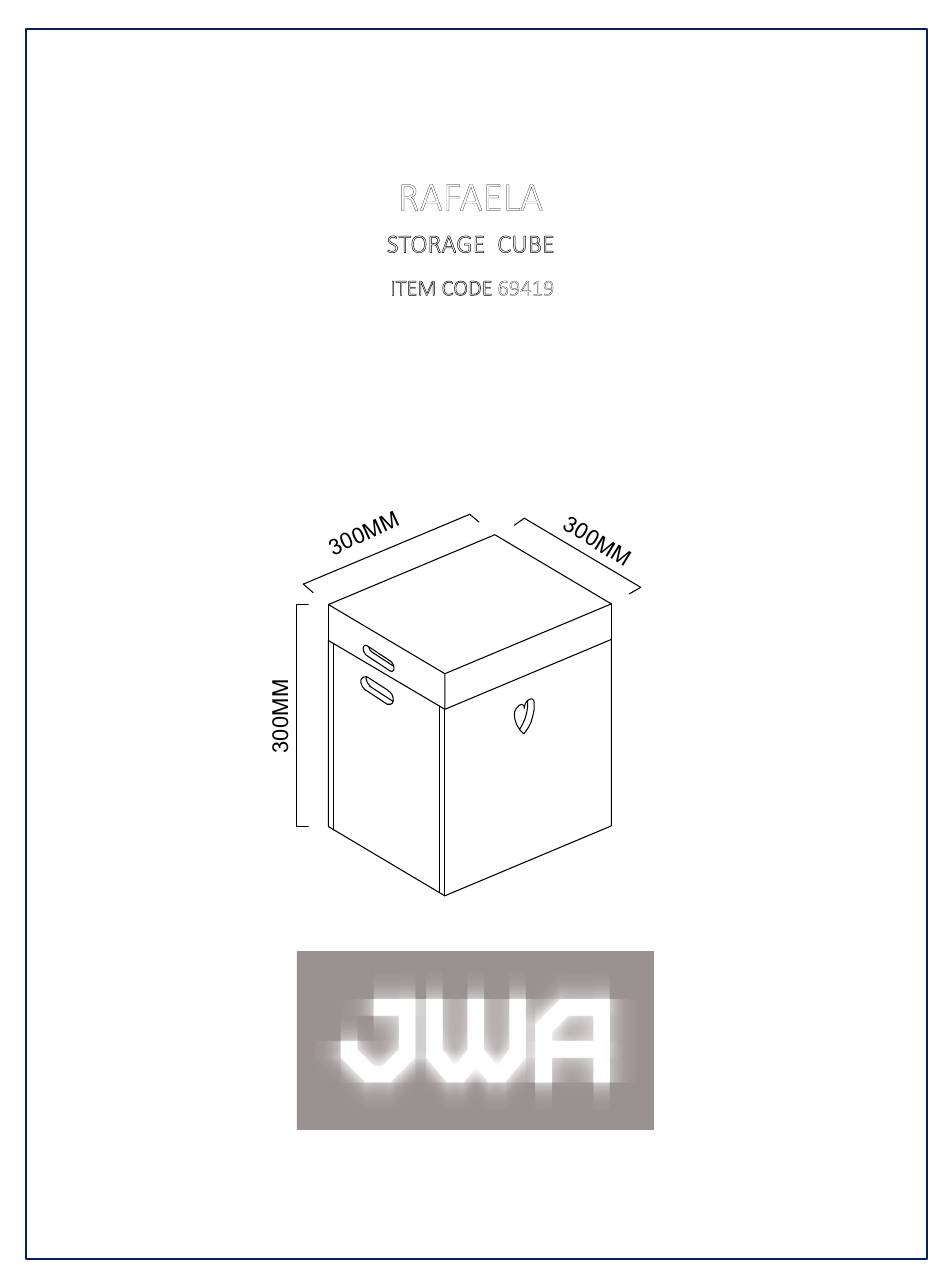

- Page 1 ASSEMBLY INSTRUCTION RAFAELA STORAGE CUBE ITEM CODE 69419 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Before You Start
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when li�ing. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instruc�ons carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST... - Page 4 PARTS LIST ITEM 8PCS Φ6*35 8PCS Φ12*10 8PCS Φ6*30 ITEM QTY NO. ITEM TOP PANEL 1 PC 1 PC BACK SIDE PANEL 1 PC LEFT SIDE PANEL 1 PC FRONT SIDE PANEL 1 PC RIGHT SIDE PANEL BOTTOM PANEL 1 PC...
- Page 5 STEP 1: STEP 2:...
- Page 6 STEP 3: STEP 4:...
- Page 7 STEP 5: STEP 6: - Ensure that ngers and legs are clear of the lid when closing this product.
- Page 8 ASSEMBLY IS COMPLETE...
- Page 9 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
