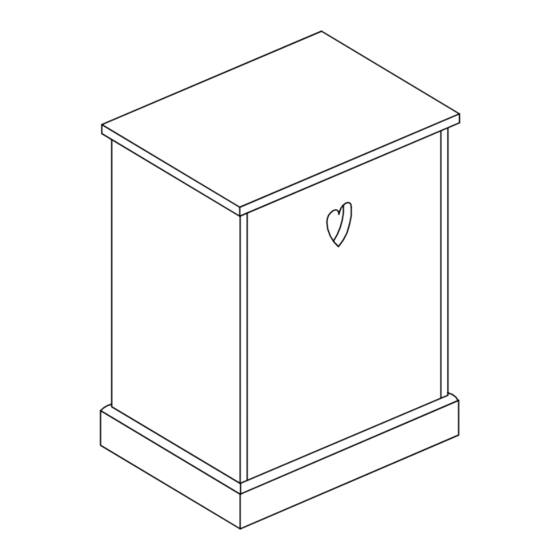

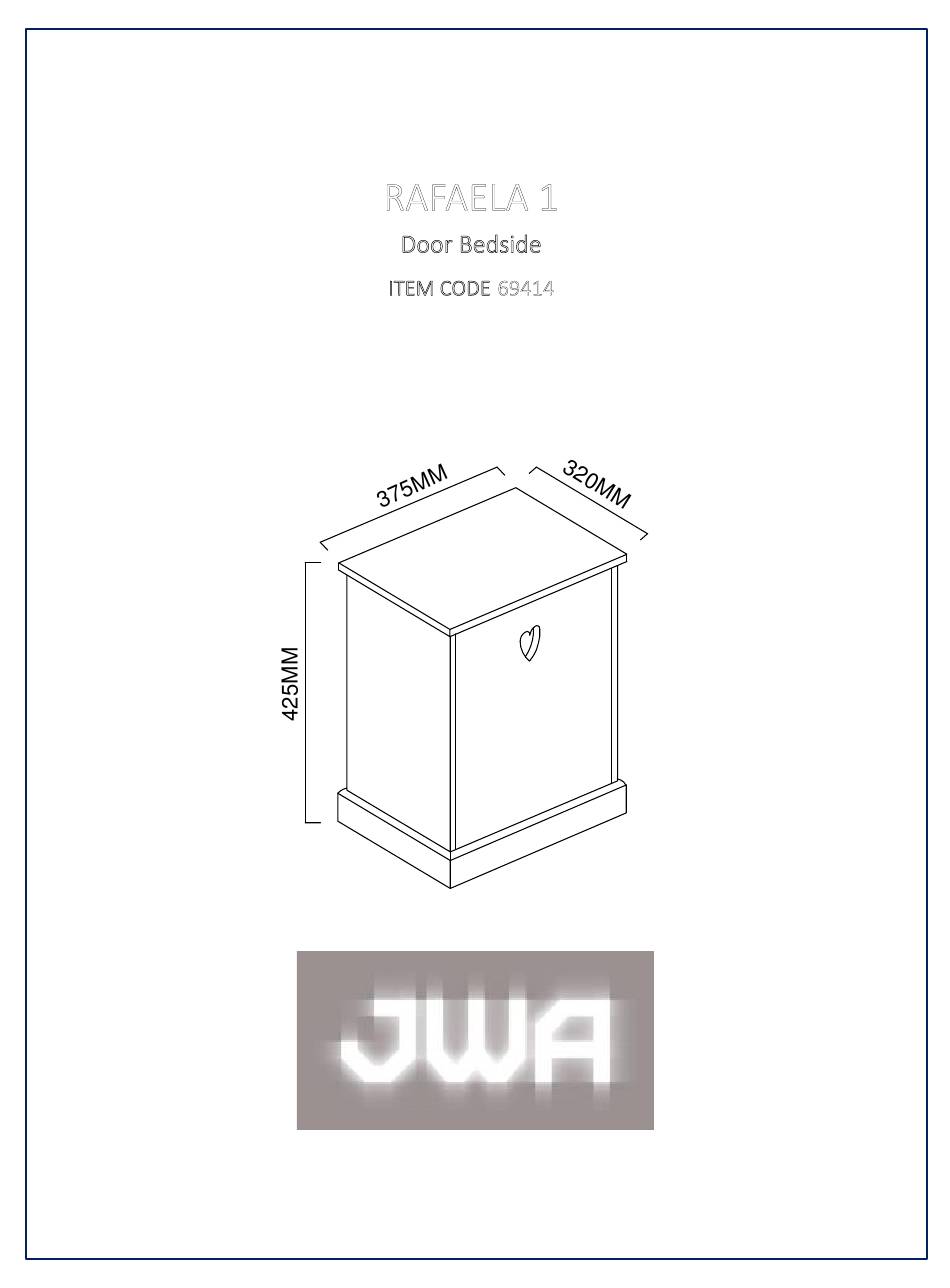

- Page 1 ASSEMBLY INSTRUCTION RAFAELA 1 Door Bedside ITEM CODE 69414 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when li�ing. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instruc�ons carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST... - Page 4 PARTS LIST ITEM QTY NO. ITEM 4PCS Φ6*35 2PCS 4PCS Φ15*10 Φ3*14 8PCS Φ6*30 9PCS 4PCS Φ3*12 2PCS 4PCS Φ4*35 ITEM QTY NO. ITEM 1 PC 1 PC TOP PANEL DOOR PANEL 1 PC LEFT SIDE PANEL BACK PANEL 1 PC RIGHT SIDE PANEL 1 PC SHELF...
- Page 5 STEP 1: STEP 2:...
- Page 6 STEP 3: STEP 4:...
- Page 7 STEP 5: STEP 6:...
- Page 8 STEP 7: - Ensure that ngers and legs are clear of all adjustment when adjusting this product. ASSEMBLY IS COMPLETE...
- Page 9 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
