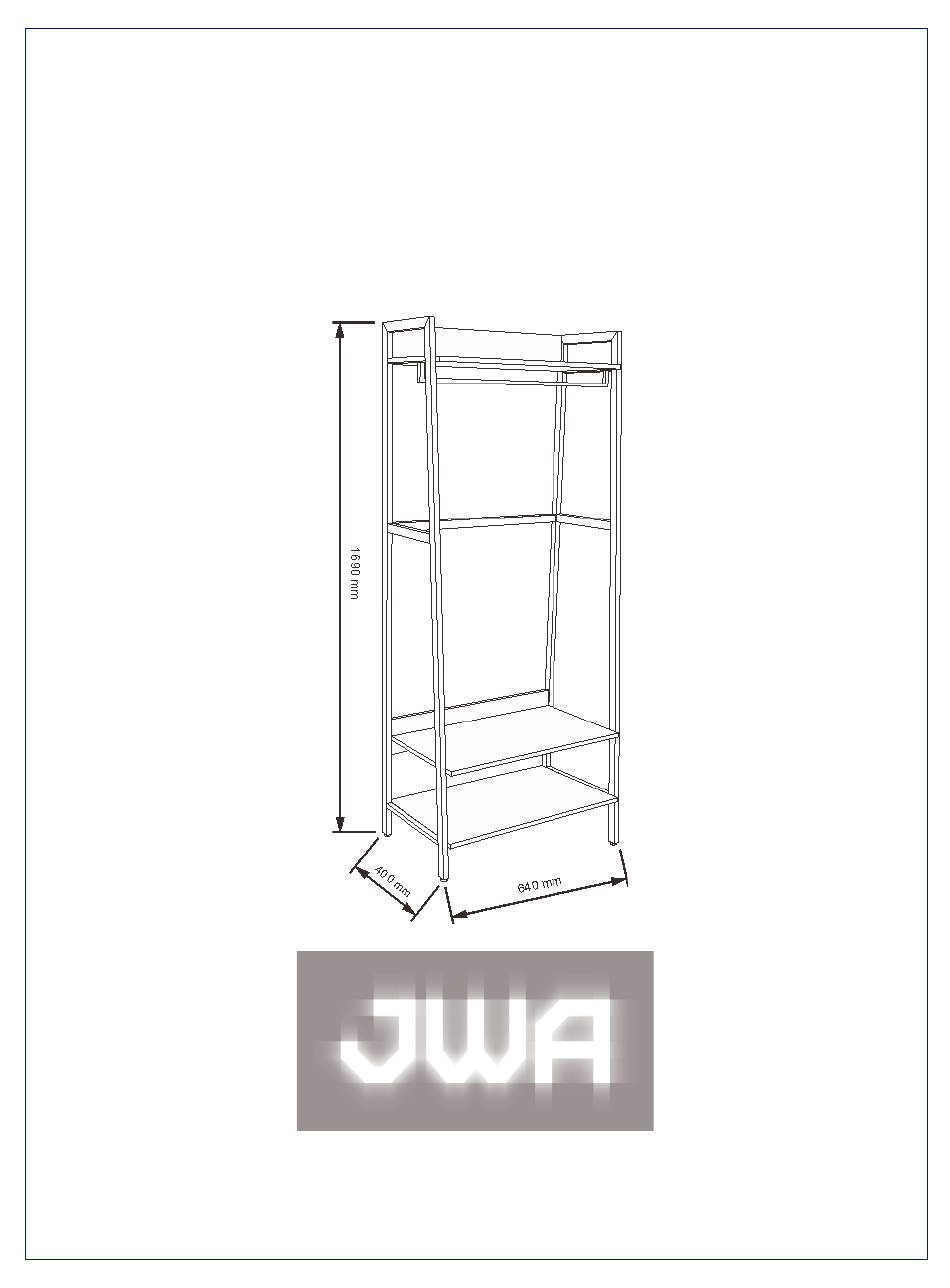

- Page 1 ASSEMBLY INSTRUCTION OLDHAM WIDE UNIT ITEM CODE 69486 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST Bottom panel Middle Layer panel Back panel-bottom Top panel Back panel-top Upper Layer panel Metal panel Conneciton pipe Coat hanger...
- Page 4 STEP 1: Load fitting H into the bottom of metal frame I1. STEP 2: Assemble panel 2 and 3, Panel 4 and 5 respectively with fitting C.
- Page 5 STEP 3: Assemnle metal I1 with connection pipe I2 with fitting B, then assemle the panel 1 and 6, component 2+3 and 4+5 to the metal frame with fitting C. STEP 4: Install I3 to the metal frame with fitting A.
- Page 6 STEP 5: Install the fitting F to the panel 4 with fitting E, and Punch holes in the wall at the appropriate position and insert the glue G, lock screw D through F to the wall. ASSEMBLY IS COMPLETE...
- Page 7 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
