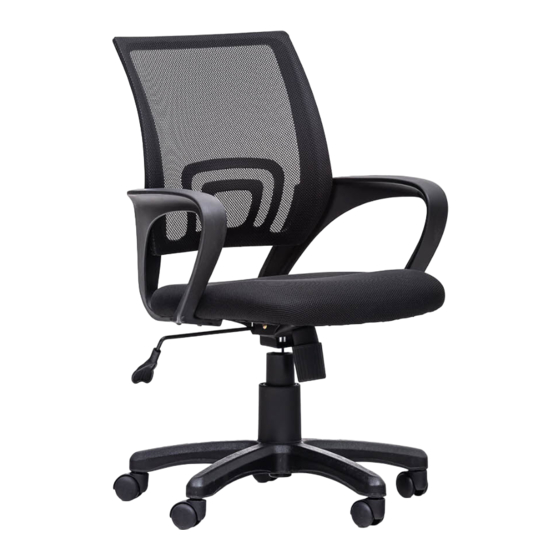

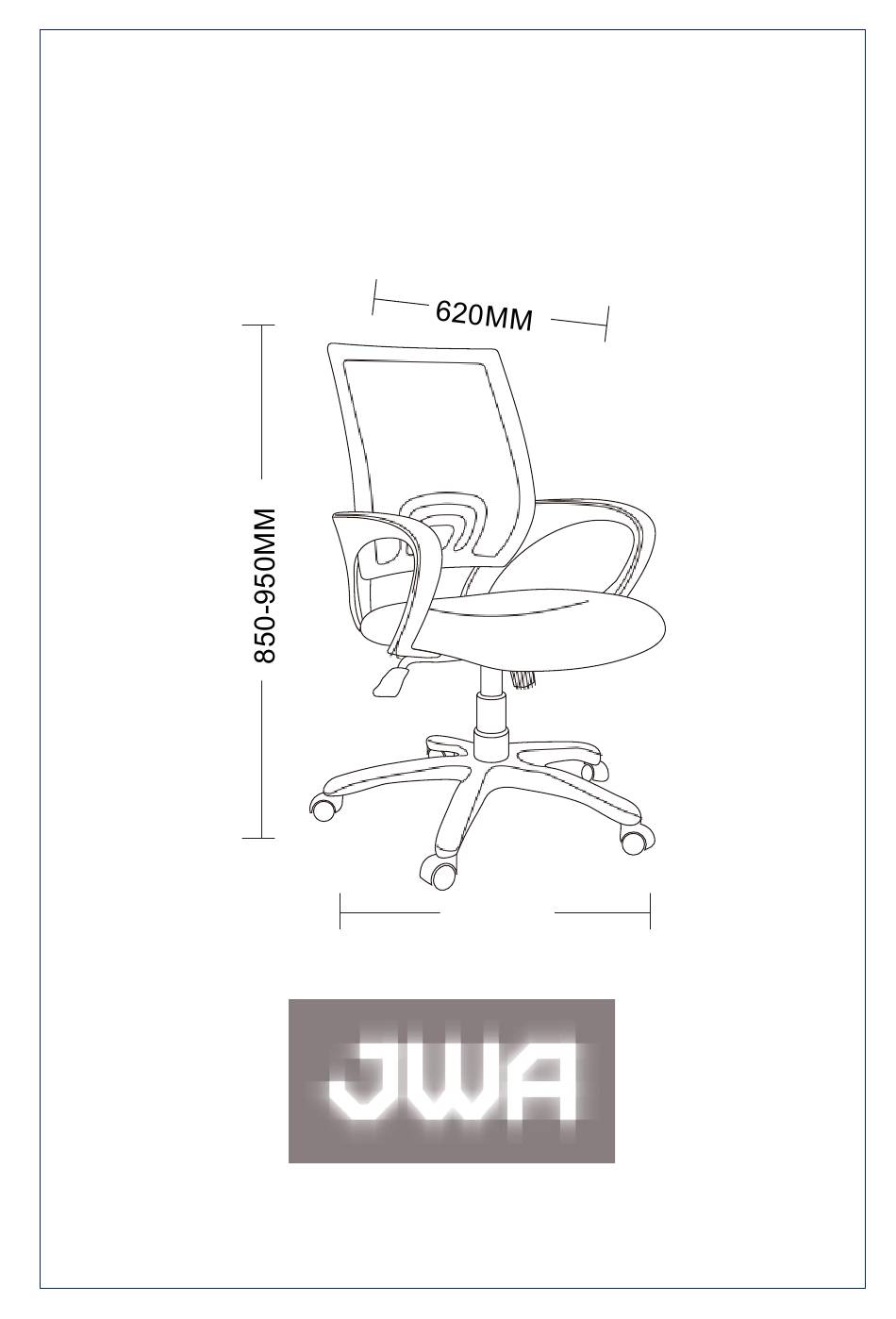

- Page 1 ASSEMBLY INSTRUCTION HORACE Office chair ITEM CODE 69480 600MM Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 3: Parts List
PARTS LIST M6x25mm M6x30mm M6x16mm M6x20mm φ17Xφ8.5X1 Back Gas lift Three cups Armrest Base Seat Mechanism Caster... - Page 4 STEP 1: Insert caster 8 into base 7. □ STEP2: Put gas lift 5 into base 7, and then put three cups of 6 in gas lift 5.
- Page 5 STEP 3: Connect armrest 2 to back 1 and twist in screws B and C with inner hexagon wrench G. Don't tighten the screws STEP 4: Connect mechanism 4 to seat 3 and twist screw A with an inner hexagon wrench G. Don't tighten the screws...
- Page 6 STEP 5: Connect armrest 2 to seat 3 and twist in screws C, D and gasket F with inner hexagon wrench G. Finally tighten all the screws. STEP 6: Press the rubber plug E into the armrest.
- Page 7 STEP 7: Place the mechanism 4 on gas lift 5. Complete the assembly.
