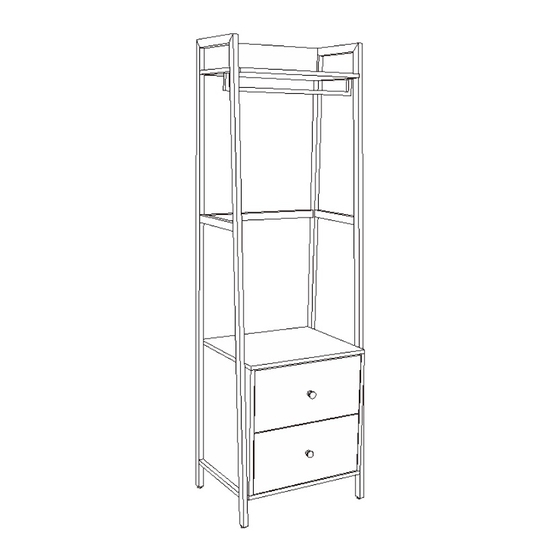

JWA OLDHAM 69484 Assembly Instruction Manual

JWA OLDHAM 69484 Assembly Instruction Manual

2 drawers unit

Advertisement

Quick Links

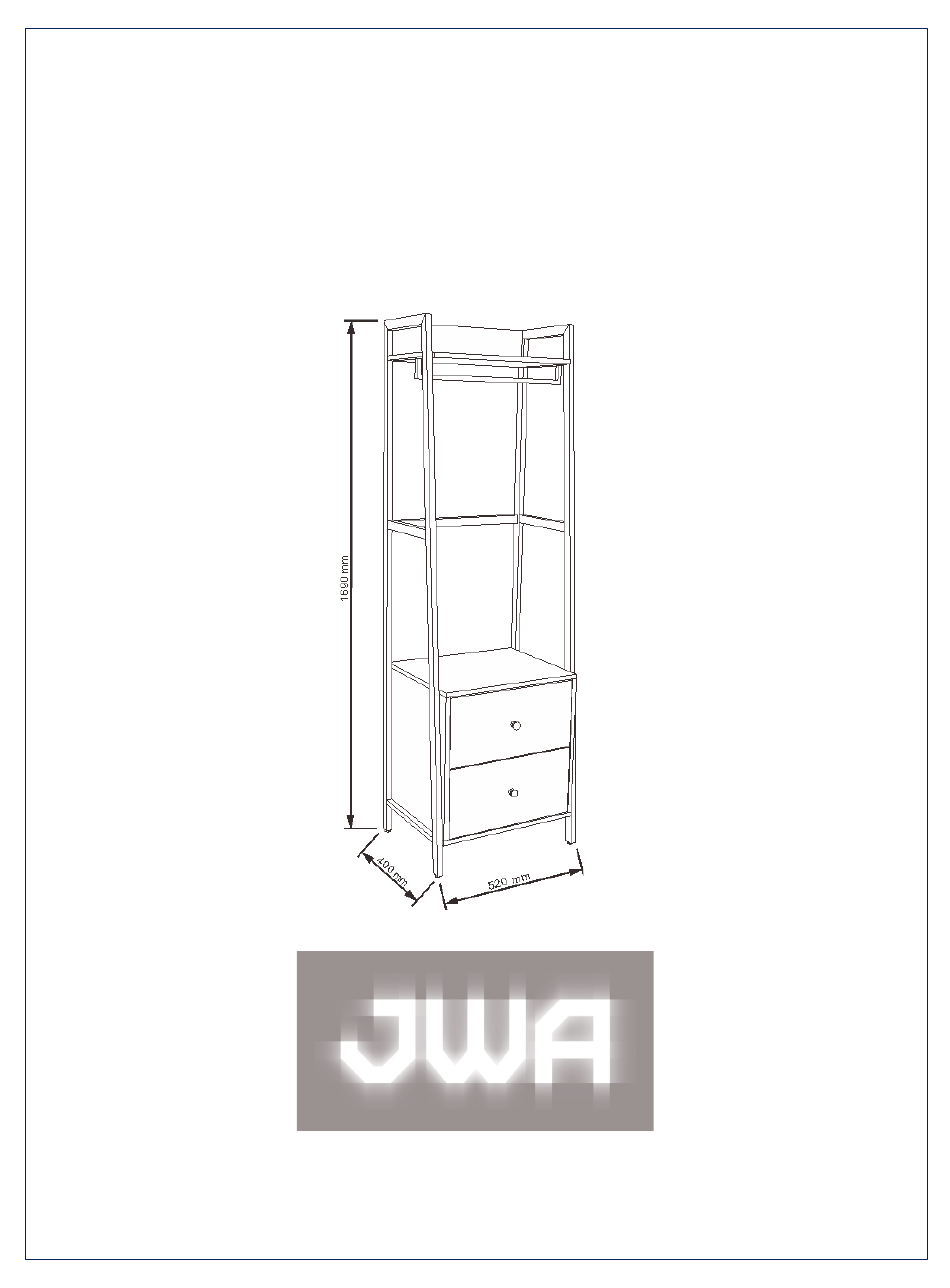

ASSEMBLY INSTRUCTION
OLDHAM
2 DRAWERS UNIT
ITEM CODE 69484
Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please refer to your receipt
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the OLDHAM 69484 and is the answer not in the manual?

Questions and answers

Summary of Contents for JWA OLDHAM 69484

  • Page 1 ASSEMBLY INSTRUCTION OLDHAM 2 DRAWERS UNIT ITEM CODE 69484 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
  • Page 2: Before You Start

    PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly.
  • Page 3: Parts List

    PARTS LIST Top panel Bottom panel Left side panel Right side panel Back panel-bottom Drawer front panel Drawer left side panel Drawer right side panel Drawer back panel Drawer bottom panel Top panel Back panel-top Metal frame Connection pipe Coat hanger...
  • Page 5 STEP 1: Load fitting P into the bottom of metal frame Q1. STEP 2: Press the plastic clasp in the fitting E2 and disassemble E1 and E2.
  • Page 6 STEP 3: Use fitting F to fix E1 on the orifice position of panel 3 and panel 4 respectively. STEP 4: Install Panel 12 on the Pane 11 with fitting D.
  • Page 7 aTEP 5: Install Connection pipe Q2 to the Metal frame Q1 with fitting C, and sssemble the componont of step 4 to the metal frame Q1; Then install Q3 with the metal frame Q1 with fitting B. STEP 6: Assemble Panel 2, 3 and 4 with fitting K and A, and after insert the pabel 5, assemble the Panel 1 to Panel 3 and 4 with fitting and K.
  • Page 8 STEP 7: Install the fitting O to the panel 6 with fitting J; And assemble Panel 7,8 and 9 with fitting D, after insert the Panel 10, assemble the panel 6 with fitting A. STEP 8: Install E2 to the drawer components with fiitting F, then insert the the drawers into the cabinet.
  • Page 9 STEP 9: Install the fitting M to the panel 11 with fitting G, and Punch holes in the wall at the appropriate position and insert the glue N, lock screw I through M to the wall. ASSEMBLY IS COMPLETE...
  • Page 10 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
  • Page 11 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
