- Page 1 YOUZ E2968 SKU:15329685 DUAL POWER RECLINING SKU:15329697 CONSOLE LOVESEAT Manufactured for Rooms To Go...
-
Page 2: List Of Parts
List of Parts TOOLS REQUIRED:NO TOOLS REQUIRED PART LIST Description Sketch Quantity LAFBack RAFBack BODY LAF ARM RAF ARM CONSOLE BACK Power cord 1.77"*45*Φ0.23" 4 sets Screw and Nut 0. 79"* M6... - Page 3 ASSEMBLY INSTRUCTIONS STEP 1: Attach 2 screws onto bottom of armrest (D), then install armrest (D) by inserting 2 screws into pre-drilled holes on arm frame of sofa body (C). Screw up nuts clockwise from bottom to fix the armrest. RAF Armrest (E) installation is same as LAF armrest(D).
-
Page 4: Power Connections
POWER CONNECTIONS Velcroed Flaps Power Cord IMPORTANT SAFETY INSTRUCTIONS INSTRUCCIONES DE SEGURIDAD IMPORANTES WARNING WARNING El mal uso puede provocar INCENDIO o MUERTE por DESCARGA El mal uso puede provocar INCENDIO o MUERTE por DESCARGA Misuse can result in FIRE or DEATH by ELECTRICAL SHOCK Misuse can result in FIRE or DEATH by ELECTRICAL SHOCK ELÉCTRICA ELÉCTRICA... - Page 5 POWER CONNECTIONS STEP 4:Connect power cord to transformer . Step 5:Connect female headrest plug to male sofa base plug. Power Cord to Transformer Power Headrest Connection Female Plug Male Plug from Back from Base wall plug transformer STEP 6:Connect from Left Arm Seat to outlet. STEP 7:After all connections are made, the green LED will be lit up.
-
Page 6: Electrical Controls
Electrical Controls STEP 8 1.Press button to raise the headrest forward. 2.Press button to lower the headrest back. 3.Press button to recline the chair to your desired position. 4.Press button to raise the chair to the upright seated position. 5.Press button One button reset. - Page 7 WARNINGS *Keep unit at least 24" from all heat sources. *Avoid placing unit in areas where unit can be exposed to direct sunlight other powerful light sources, as fading or discoloration may occur. *Maintain minimum of 6″space between thefurniture backs and wall. ″...
-
Page 8: Care And Cleaning
*If unit must be moved, do not drag. Unit must be lifted in order to be moved. *Do not continuously operate mechanism for more than one minute or unit may go into protection mode by shutting down to prevent overheating. *Unplug unit from power source prior to cleaning mechanism. -
Page 9: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION No Reclining Check all power connections ( Step 4,5,6,7 ) Make sure headrest power cable is connected to chair cable Headrest Not Working ( Step 3,4,5,6 ) Check all power connections ( Step 4,6 ,7) USB Not Working verify that USB cable functioning Ensure the backrests are properly clipped into the male posts located on seat mechanism.
Need help?
Do you have a question about the 15329685 and is the answer not in the manual?
Questions and answers

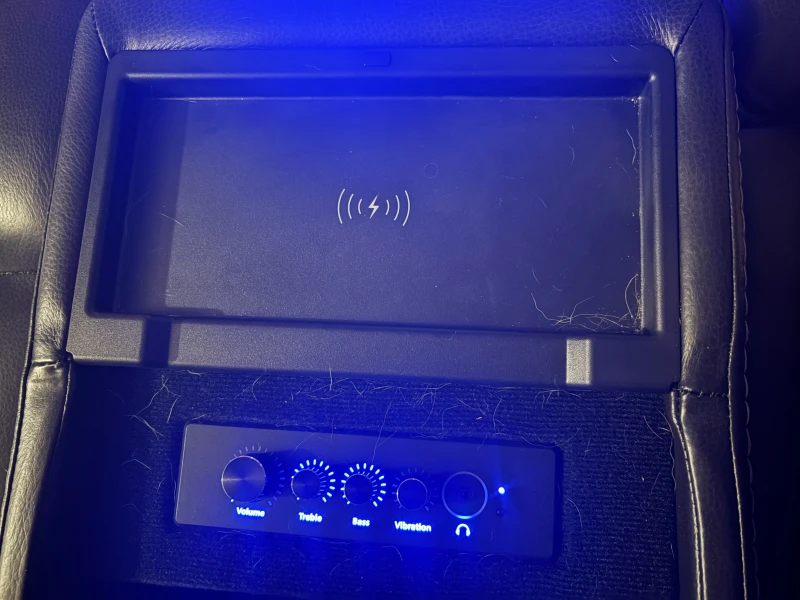

Where do I "hard wire" (plug in the 3.5mm plug) for the built in Speaker system?
