INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS

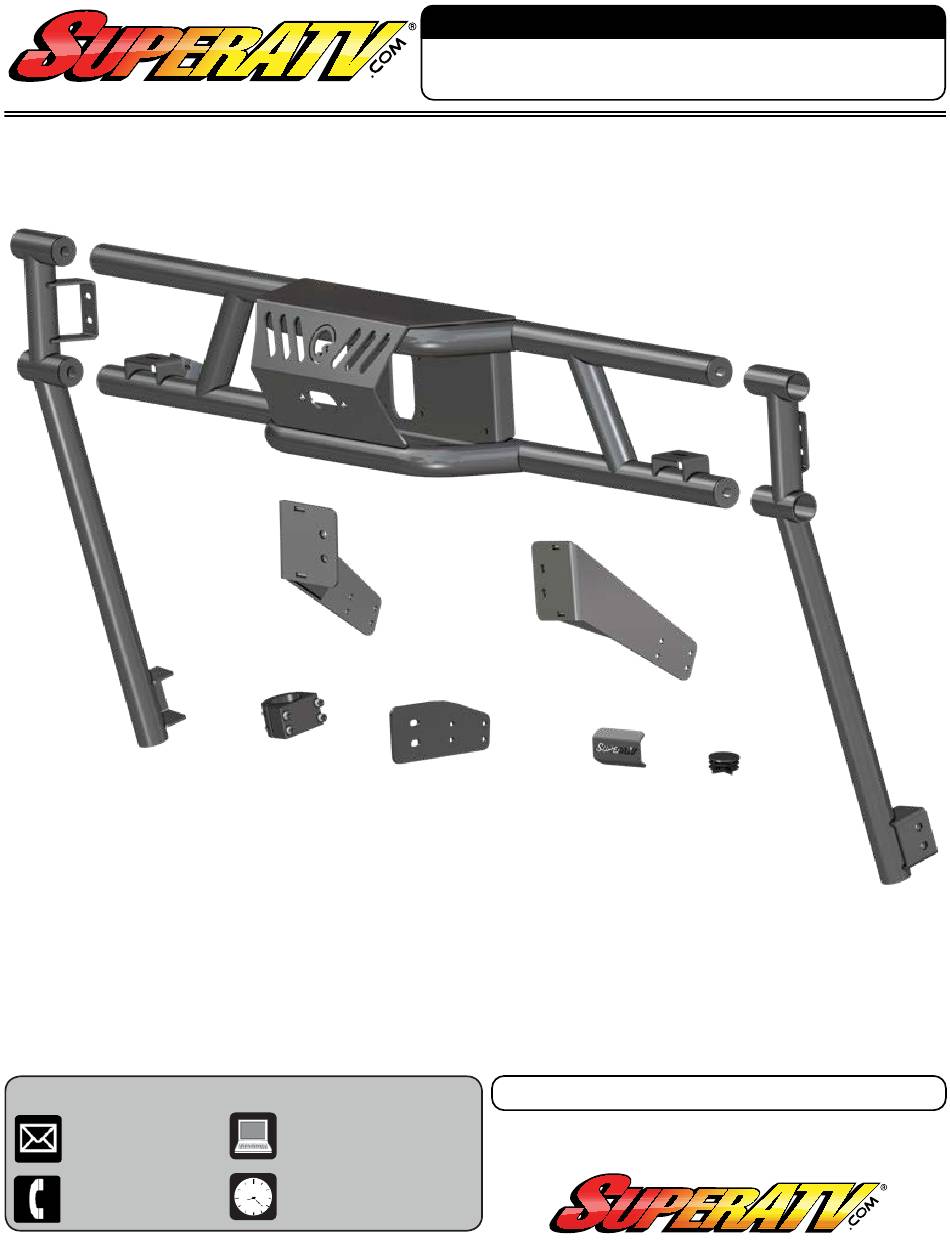

Game Loader Rack:
R - Mount
4x - Cover
Read instructions and view illustrations before beginning.
for Honda Pioneer 700
Rack
6x - Plug
Thank You
For Choosing
IN-GLR-H-PiO700 5/17/2024
Right
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SuperATV GLR-H-PIO700-00
Summary of Contents for SuperATV GLR-H-PIO700-00
- Page 1 2753 Michigan Road • Madison, Indiana 47250 • 855-743-3427 - Do not discard packaging until product has been successfully installed. - Installation performed with SuperATV Roof installed. - Avoid hot and/or rotating components when routing any wiring. - Secure wiring with provided wire-ties.
- Page 2 (kit contents continued) (see pages 9 - 12 for wiring and wire routing) (connect to Box) (route to Battery) (route to front of machine) Connector (connects to Connector) Corded Remote Fairlead Hook Winch Hand Strap (connect either plug to stock plug) (connects to Connector) Harness IN-GLR-H-PiO700...
- Page 3 remove Hood remove Hood remove Flap remove Flap reinstall components after installation is complete IN-GLR-H-PiO700...
- Page 4 - Install Clamp and Bracket to Cage in location shown; hardware to be snug but not tight. - Repeat for opposite side. previously removed Clamp hardware Clamp Clamp (driver) (driver) Bracket Bracket - Install Clamp and L - Mount to Cage in location shown; hardware to be snug but not tight. - Repeat for opposite side.
- Page 5 - Install Right and Left with hardware shown; do not tighten. - Repeat for opposite side. use provided Threadlocker M8 x 25mm Right Right Left Left (passenger) (passenger) (driver) (driver) M8 x 25mm IN-GLR-H-PiO700...
- Page 6 Rack Rack Winch Winch M6 x 20mm 2 each M6 Nut M6 x 20mm - Install Winch and Box to Rack with hardware shown; tighten. connect Winch to Box connect Winch to Box IN-GLR-H-PiO700...
- Page 7 Hook Hook Fairlead Fairlead M10 Nut - Install Connector to Rack with hardware shown; tighten. Rack Connector 2 each M5 Nut M5 x 20mm Use hardware shown if SuperATV Cube Lights are being installed. M8 x 20mm M8 Nut IN-GLR-H-PiO700...
- Page 8 - Temporarily install Rack to Left and Right with hardware shown. Secure upper sections only; do not tighten. 2x - M12 x 25mm (driver) (driver) Rack Rack - Secure lower section of Rack to Left and Right with hardware shown. Install Covers at this time. Do not tighten hardware.
- Page 9 route to Battery route to front of machine - Route wires from Box to Battery area of machine. (passenger) (passenger) (passenger) (passenger) IN-GLR-H-PiO700...
- Page 10 connect power wires from connect power wires from Box to Battery Box to Battery IN-GLR-H-PiO700...
- Page 11 - Locate stock Plug behind Frame and on Firewall. (passenger) (passenger) unplug unplug IN-GLR-H-PiO700...
- Page 12 (passenger) (passenger) connect Harness to stock Connector connect Harness to stock Connector use open connection on Harness for any aftermarket use open connection on Harness for any aftermarket accessories which require this style plug-in accessories which require this style plug-in connect Harness to Extension connect Harness to Extension secure wires as needed...
- Page 13 Install Plugs into Right and Left. IN-GLR-H-PiO700...
- Page 14 GETTING TO KNOW YOUR WINCH: A winch is a powerful piece of machinery. For safe and confident operation, it is important to understand basic winch operations and specifications. See below for details on winch components and usage. Practice using winch before an actual situation occurs. Winch has been engineered with several patented technologies.
-
Page 15: Safety Precautions
SAFETY PRECAUTIONS: Failure to heed these warnings and cautions may result in personal injury and/or property damage. WARNING - Do not exceed rated capacity. WARNING - Do not use Winch to lift vertically or as a hoist. load load WARNING - Never cut, weld, or modify any part of Winch or Synthetic Rope. - Page 16 SAFETY PRECAUTIONS (continued): WARNING - Never connect Synthetic Rope back onto itself. - Use Hand Strap when handling Clevis Hook. Use gloves to protect CAUTION hands when handling Synthetic Rope. Never let Synthetic Rope slide through bare hands. Hand Strap - When re-spooling, ensure that Synthetic Rope spools in “under wind”...
-
Page 17: General Tips For Safe Operation
GENERAL TIPS FOR SAFE OPERATION: • Winch is at rated capacity when spooling first Synthetic Rope layer onto Winch Drum. Overloading can damage components. For loads over 70% of rated line pull, it is recommend to use a pulley block/snatch block to double rope line. When doubling line, number of layers on Winch Drum is reduced and load on Synthetic Rope is reduced by as much as 50%. - Page 18 Do not winch from an acute angle. Synthetic Rope will pile up on one side of Winch Drum causing damage to Synthetic Rope and Winch. Short pulls from an angle can be used to straighten game. Long pulls must be done with Synthetic Rope at a 90°...
- Page 19 OPERATING WINCH: 1. Take time to assess situation and thoroughly plan pull. 2. Set Free Spooling Clutch to “CLUTCH OUT” position. 3. Pull Synthetic Rope and attach to Game to be winched. Wear gloves and use Hand Strap. - Always leave minimum of (5) turns of Synthetic Rope on Winch CAUTION Drum.
-
