Modine Manufacturing HFP Submittal Data

WARNING
1. Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death, and could cause
exposure to substances which have been
determined by various state agencies to
cause cancer, birth defects or other
reproductive harm. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
2. Disconnect power supply before making
wiring connections or working on this
equipment. Follow all applicable safety
procedures to prevent accidental power up.
Failure to do so can result in injury or death
from electrical shock or moving parts and may
cause equipment damage.
IMPORTANT
1. The use of this manual is specifically intended
for a qualified installation and service agency.
All installation and service of these kits must
be performed by a qualified installation and
service agency.
2. These instructions must be used in
conjunction with the Installation and Service
Manual originally shipped with the appliance
being converted, in addition to any other
accompanying component supplier literature.
PLEASE BE SURE TO LEAVE IT WITH THE OWNER WHEN YOU LEAVE THE JOB.
Gas-fired weatherproof duct furnace/make-up air units
models HFP/OFP (stand-alone or as part of a system unit)
THIS MANUAL IS THE PROPERTY OF THE OWNER.
INSTALLATION & SUBMITTAL DATA
Application
The standard power exhaust discharge configuration on
models HFP/OFP weatherproof duct furnaces is a horizontal
discharge exhaust cover. In certain installations, it is
desirable to redirect the products of combustion vertically
through an extended vent kit that terminates above the top of
the unit as shown in Figure 1.1.

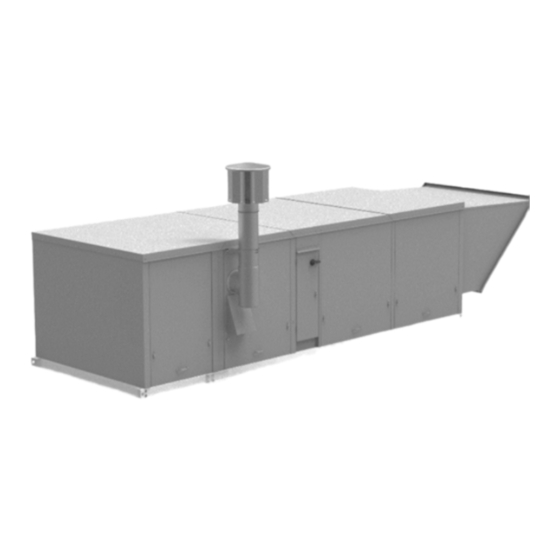

Figure 1.1 – Extended Vent Kit Installed
5-574.6
5H0762590000
March, 2024
Extended Vent Kit
