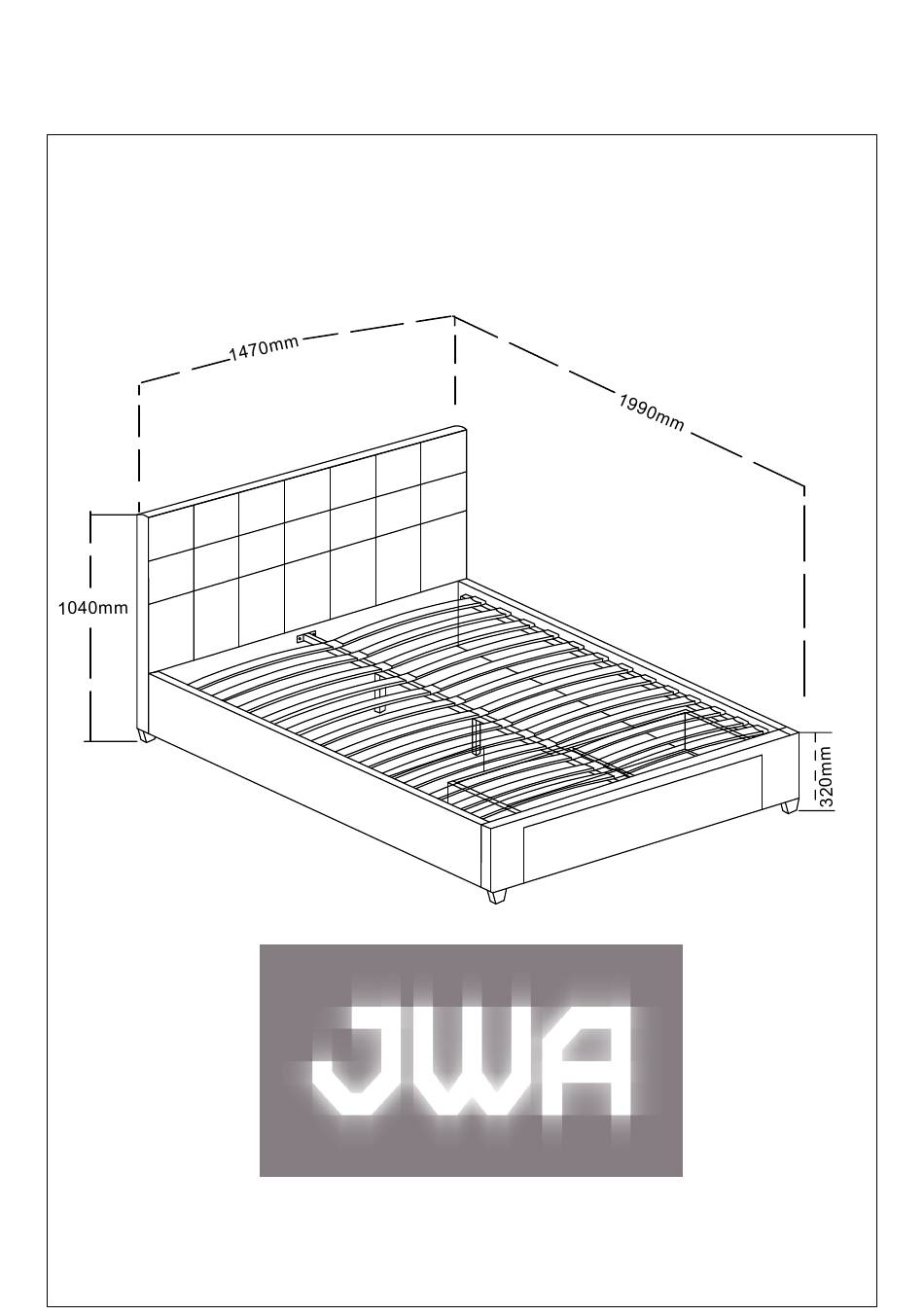

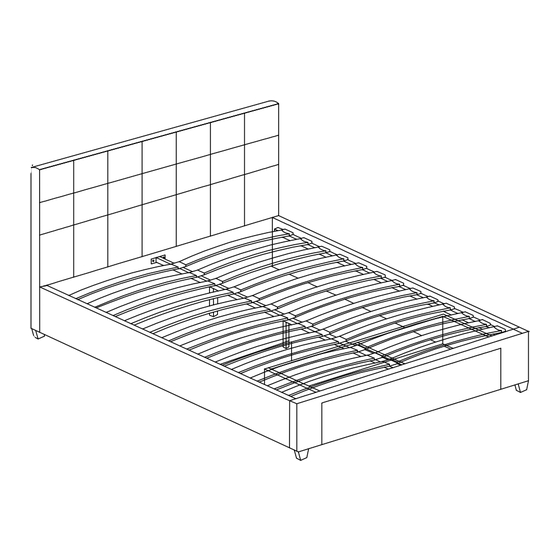

- Page 1 ASSEMBLY INSTRUCTION SOUTHAMPTON DOUBLE ITEM CODE: 78 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Part List
PART LIST 1.Headboard 1pc 2.Footboard 1pc 5.Support Leg *2pcs 6.Slats*30pcs 3.Side Rail*2pcs 4.Metal Bar 1pc 8.Double Plastic Cap 11.FRONT-PANEL* 7.Single Plastic Cap 9.Leg*4pcs 12.PANEL*1pc 10.PANEL*2pcs *28pcs *14pcs 14.BOTTOM 13.BOTTOM*1pc 15.PANEL*1pc 16.WHEEL*5pcs 17.*2pcs SUPPORT*3pcs HARDWARE LIST (A)Bolt M8*35mm*23pcs (B)Bolt M8*50mm*4pcs (C) *1pc (F)Flat Washer *19pcs (D)Spring Washer*8pcs (E)Nut M8*4pcs... -
Page 5: Product Care
* PILLING IS A NORMAL OCCURRENCE CAUSED BY WEAR AND TEAR AND DOES NOT AFFECT THE DURABILITY OR FUNCTIONALITY OF THE FABRIC AND IS EASILY REMOVED Made In: China Imported By: JWA Furniture Pty Ltd Brisbane, Qld, Australia Item Code: 78970 Product Name: SOUTHAMPTON DOUBLE...
