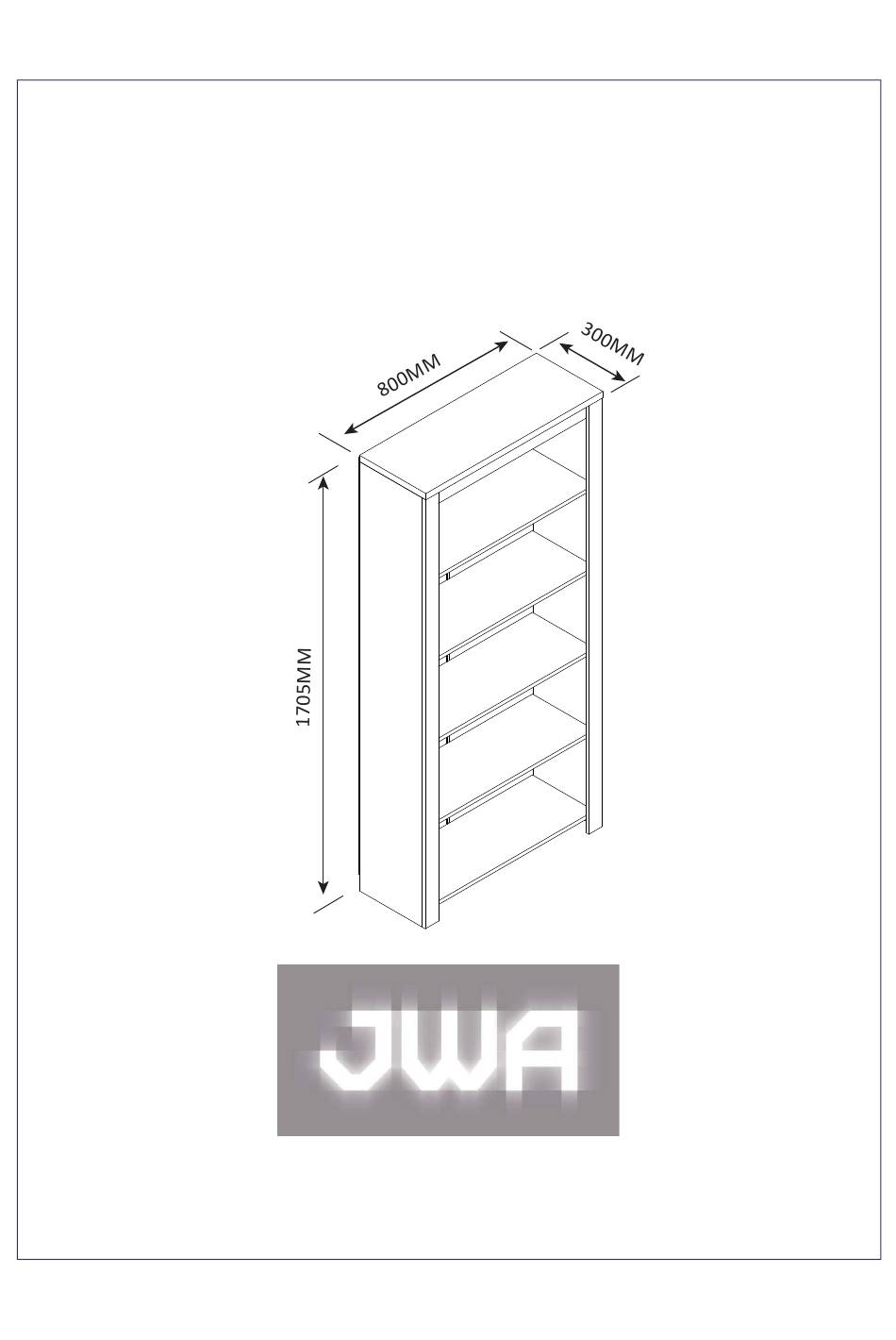

- Page 1 ASSEMBLY INSTRUCTION MATTHEW BOOKCASE ITEM CODE 70132 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when li ing. Product should be assembled as near as possible to the point of use 3. - Page 3 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it.
-
Page 4: Parts List
PARTS LIST M7X39mm M15X12mm M8X30mm M3X16mm 32pcs 32pcs 35pcs 24pc 2pcs 4pcs SIDE PANEL SKIRTS SIDE PANEL SKIRTS SKIRTS TOP PANEL SHELF BACK PANEL BOTTOM PANEL FILLER... - Page 5 STEP 1 STEP 2...
- Page 6 STEP 3 STEP 4...
- Page 7 STEP 5 STEP 6...
- Page 8 STEP 7 ASSEMBLY COMPLETE...
- Page 9 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 10 To protect your furniture, we suggest the following: Avoid placing your furniture in direct sunlight. Do not place furniture directly under windows. Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the nish.
