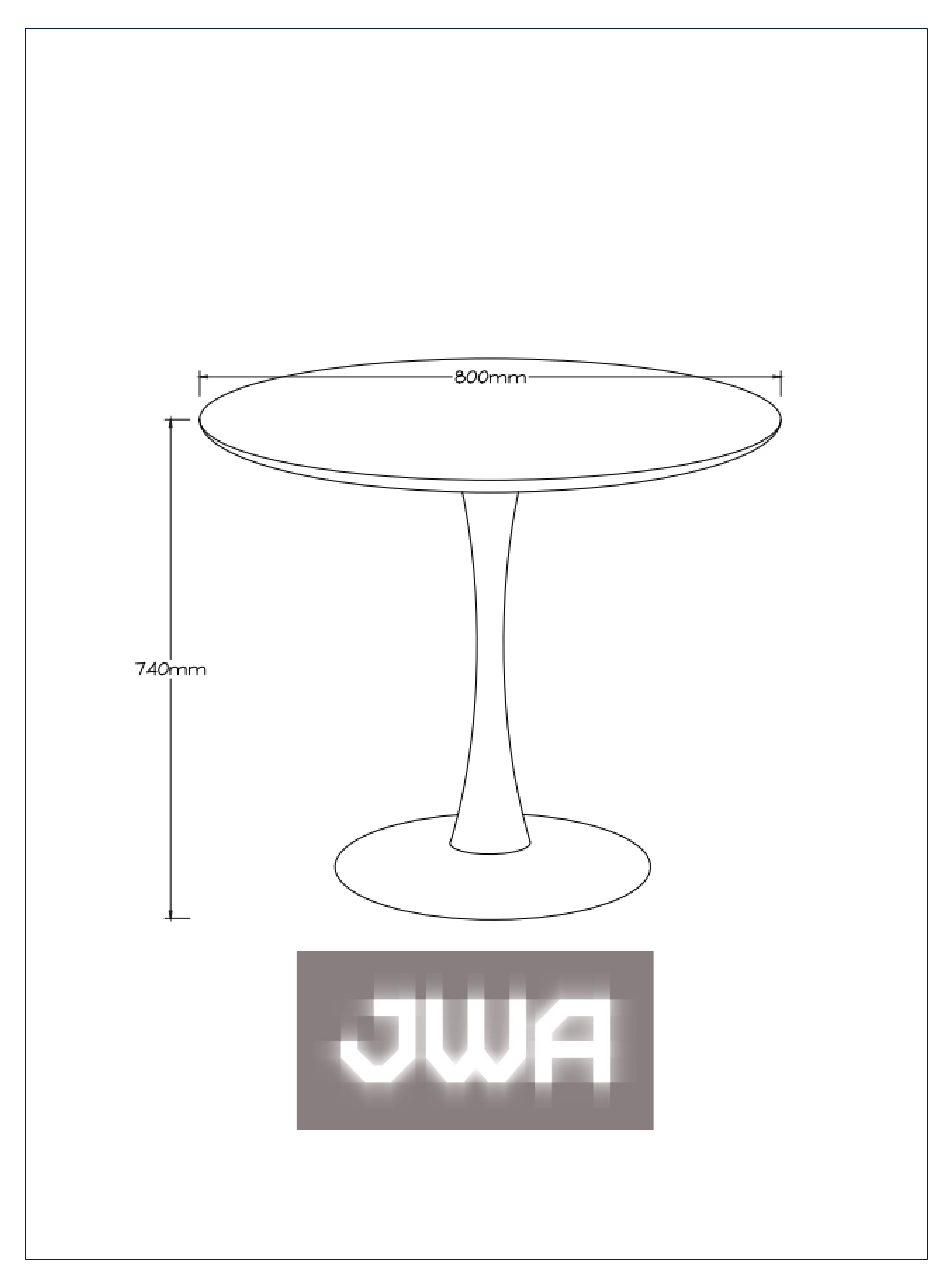

- Page 1 ASSEMBLY INSTRUCTION Weston Dining table ITEM CODE:71468&71471&71479 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of 3. Ensure that you have all required contents for complete assembly 4.
- Page 3 PARTS LIST ① table top ② connection frame ③ table frame ④ table base...
- Page 4 STEP 1: • Insert bolt B into Spring Washer C and Flat Washer D with Allen Key A to connect the Table frame ③ with the connection frame ② . Loosely tighten for now. ② ③ STEP 2: • Insert bolt E into Flat Washer D with Allen Key A to connect the connection frame ②...
- Page 5 STEP 3: • Insert bolt B into Spring Washer C and Flat Washer D with Allen Key A to connect the table frame ③ with table top ①. Loosely tighten for now. ④ ③ ② ① STEP 4: • Stand the table, top side up. Place is on a level surface. Adjust the legs until the table is level.
- Page 6 ASSEMBLY OF THE TABLE IS COMPLETE...
- Page 7 PRODUCT CARE: Hi-gloss lacquered furniture is more sensitive to marks and scratching then some other furniture products. It is important to exercise caution and care to maximise the life and beauty of this product Following the below simple guidelines when using your hi-gloss product will protect your investment for years to come •...
