Mercia Garden Products 03PTMBPN0406BR-V1 Manual

Pressure treated matchboard pent 4x6 bar
Hide thumbs Also See for 03PTMBPN0406BR-V1:

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03PTMBPN0406BR-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 03PTMBPN0406BR-V1

Summary of Contents for Mercia Garden Products 03PTMBPN0406BR-V1

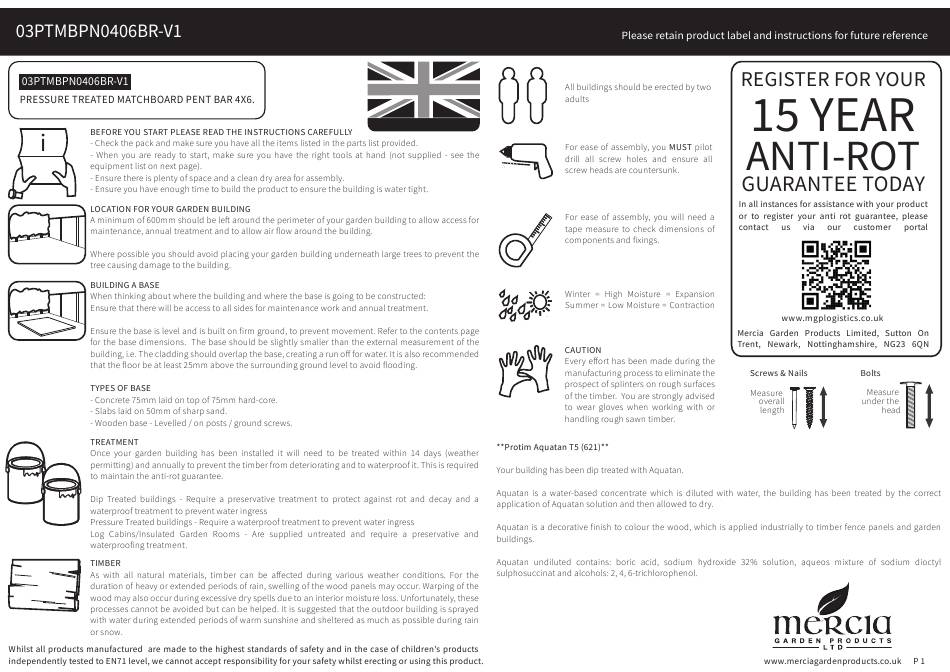

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 03PTMBPN0406BR-V1 End View Overall Dimensions: Width = 1966mm Ridge Bar 27x70x1674mm QTY 1 Depth = 1432mm F2770-1674mm Height = 2140mm End View Base Dimensions: Width = 1824mm Front Cover Trim 12x56x1848mm QTY 1 Depth = 1269mm S1256-1848mm End View Side Cover Trim 12x56x1269mm QTY 2...

  • Page 4: Missing Parts

    Extension Pack 03PTMBPN0403BRPB-V1 Overall Dimensions: Width = 2803mm Depth = 1432mm Height = 2140mm Base Dimensions: Width = 2661mm Depth = 1269mm Plain Bar Top Extension QTY 1 Roof Panel Extension QTY 1 AI-03S21MBSHF837X254-V1 AI-S22FEPR837X1428-V1 End View Extension Pack Contents: Cover Trim Extension 12x56x837mm QTY 1 S1256-837mm End View...
  • Page 5 Extension Pack IMPORTANT: Pre-drill before xing screws. Step 1A Before assembly, please make sure you have a suitable Parts Needed - No. 1 QTY 3 base ready to install your building onto. - No. 19 QTY 2 Stand the Back Panels (No. 1) upright as shown, with the larger gap Step 1 767mm...
  • Page 6 Step 2 Extension Pack IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 6 QTY 2 Step 2A - No. 18 QTY 2 Parts Needed - No. 6 QTY 2 - No. 18 QTY 2 Stand the Front Panels (No.
  • Page 7 Step 3 Step 4 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 3 QTY 1 Parts Needed - No. 6 QTY 2 - No. 18 QTY 2 Place the Left Plain Panel (No. 3) ush to the inside of the post (No.
  • Page 8 Step 5 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 7 QTY 1 Parts Needed - No. 11 QTY 1 Place the Right Plain Panel (No. 7) Place the Left Bar top (No. 11) on top against the front panel Post (No.
  • Page 9 Step 7 Extension Pack IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 10 QTY 2 Step 7A Parts Needed - No. 10 QTY 2 Place the Plain Bar tops (No. 10) on top of - No.
  • Page 10 Step 8 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 9 QTY 1 Parts Needed - No. 20 QTY 2 Place the Right Bar top (No. 9) on top Place the bar supports (No. 20) underneath of the Right Plain Panel (No.
  • Page 11 Step 10 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 4 QTY 1 Parts Needed - No. 8 QTY 2 - No. 5 QTY 1 Place the Top Panels (No. 8) between the Place the Right Gable (No.
  • Page 12 Step 12 Step 13 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 2 QTY 2 Parts Needed - No. 12 QTY 1 - No. 21 QTY 2 Locate the Roof panels (No. 2) onto the top of the building.
  • Page 13 Step 14 Step 15 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 15 QTY 1 Fix the roofs to the Building using 70mm screws, ensuring to go through into the Fix the Roof cover trim (No. 15) to the panel framing below.
  • Page 14 Step 16 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 16 QTY 2 - No. 17 QTY 2 Locate the Fascias (No. 16 and No. 17) around the sides of the roof, as shown. Secure using 4x40mm screws for the front and back fascia (No.
  • Page 15 Step 17 Step 18 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 13 QTY 1 - No. 14 QTY 2 Once constructed, apply a preserving treatment and a waterproo ng treatment Fix the Cover trims (No. 13 and No. 14) to the to your garden building as soon as bottom of the window openings, ensuring they possible.
  • Page 16 ANY QUESTIONS? Scan code contact us via our customer portal.
