Mercia Garden Products 03PTMBPN0406BR-V1 Manual

Pressure treated matchboard pent 4x6 bar
Hide thumbs Also See for 03PTMBPN0406BR-V1:

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit
Pressure Treated Timber
Your building has been pressure treated.
Pressure treating is a chemical process which helps to protect wood against adverse weather which could
lead to rot or insect damage.
The most common chemicals used to pressure treat wood are Alkaline Copper Quaternary (ACQ),
Copper Azole (CA), and Micronized Copper Quaternary (MCQ).
Safety: Always wear gloves, eye protection and a dust mask when handling wood. Due to chemicals in
pressure treated wood, never burn its sawdust or scraps; instead dispose in a land ll.
REGISTER FOR YOUR
PLEASE SCAN HERE:
ANTI-ROT
GUARANTEE TODAY

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03PTMBPN0406BR-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 03PTMBPN0406BR-V1

Summary of Contents for Mercia Garden Products 03PTMBPN0406BR-V1

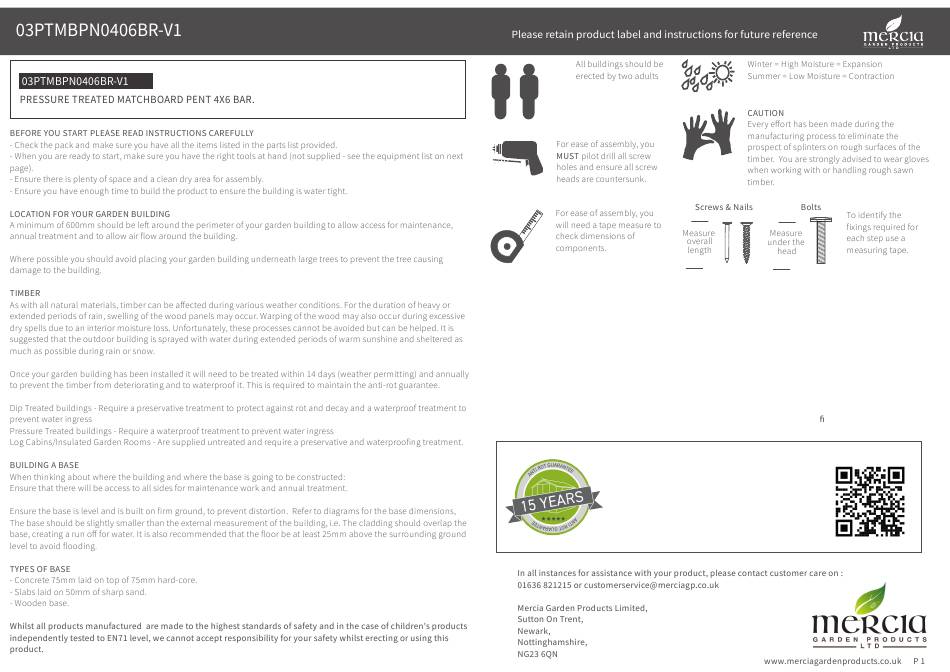

  • Page 1 2mm Drill bit Pressure Treated Timber Your building has been pressure treated. Pressure treating is a chemical process which helps to protect wood against adverse weather which could lead to rot or insect damage. The most common chemicals used to pressure treat wood are Alkaline Copper Quaternary (ACQ), Copper Azole (CA), and Micronized Copper Quaternary (MCQ).
  • Page 3 Before assembly please make sure you have a Ridge Bar 27x70x1674mm QTY 1 suitable base ready to erect your F2770-1674mm building Front Cover Trim 12x56x1848mm QTY 1 S1256-1848mm Side Cover Trim 12x56x1269mm QTY 2 MADE IN GREAT BRITAIN S1256-1269mm Overall Dimensions: Base Dimensions: Width = 1966mm Width = 1824mm...
  • Page 4 Extension Pack 03PTMBPN0403BRPB-V1 Overall Dimensions: Width = 2803mm Depth = 1432mm Height = 2140mm Plain Bar Top Extension QTY 1 Base Dimensions: AI-03S21MBSHF837X254-V1 Width = 2661mm Depth = 1269mm Cover Trim Extension 12x56x837mm QTY 1 S1256-837mm Roof Panel Extension QTY 1 AI-S22FEPR837X1428-V1 Fascia Extension 12x95x837mm QTY 2 S1295-837mm...
  • Page 5 Step 1 Extension Pack IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.1 QTY 2 Step 1A - No. 19 QTY 2 Parts Needed- No.1 QTY 3 - No. 19 QTY 2 Stand the Back Panels (No. 1) upright as shown, with the larger gap between the panel framing Stand the Back Panels (No.
  • Page 6 Step 2 Extension Pack IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.6 QTY 2 Step 2A - No. 18 QTY 2 Parts Needed- No.6 QTY 2 - No. 18 QTY 2 Stand the Front Panels (No.6) upright as shown.
  • Page 7 Step 3 Step 4 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.3 QTY 1 Parts Needed- No.6 QTY 2 - No. 18 QTY 2 Place the Left Plain Panel (No.3) ush to the inside of the post (No.19). Place the Post (No.18) attached to the front panels against the Left Panel (No.3), Fix the Left Plain Panel (No.3) to the...
  • Page 8 Step 5 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.7 QTY 1 Parts Needed- No.11 QTY 1 Place the Right Plain Panel (No.7) Place the Left Bar top (No.11) on top of against the front panel Post (No.18), the Left Plain Panel (No.3).
  • Page 9 Extension Pack Step 7 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Step 7A Parts Needed- No.10 QTY 2 Parts Needed- No.10 QTY 2 Place the Plain Bar tops (No.10) on top of - No.22 QTY 1 the Front Panels (No.6). Secure using 3x70mm screws per bar top, Place the Plain Bar tops (No.10) and the Plain going through the Bar top cladding and...
  • Page 10 Step 8 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.9 QTY 1 Parts Needed- No.20 QTY 2 Place the Right Bar top (No.9) on top of Place the bar supports (No.20) underneath the Right Plain Panel (No.7). the bar tops as shown in the illustration.
  • Page 11 Step 10 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.4 QTY 1 Parts Needed- No.8 QTY 2 - No.5 QTY 1 Place the Top Panels (No.8) between the Place the Right Gable (No.5) and the Left front posts (No.20), position them to be Gable (No.4) between the Posts, the front ush with the bottom of the gables.
  • Page 12 Step 12 Step 13 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.2 QTY 2 Parts Needed- No.12 QTY 1 - No.21 QTY 2 Locate the Roof panels (No.2) onto the top of the building. Use Silicone sealant Fix the Corner Brace (No.21) to each end of the Ridge Bar (No.12) using 2x30mm screws along the join of the roof panels and x...
  • Page 13 Step 14 Step 15 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.15 QTY 1 Fix the roofs to the Building using 70mm screws, ensuring to go through into the Fix the Roof cover trim (No.15) to the panel framing below.
  • Page 14 Step 16 IMPORTANT: Pre-drill before xing screws. Parts Needed- No.16 QTY 2 - No.17 QTY 2 Fix the Fascias (No.16 and No.17) to the sides of the roof, secure using 4x40mm screws for the front and back fascia (No.16) and 3x40mm screws for the side fascias (No.17).
  • Page 15 Step 17 IMPORTANT: Pre-drill before xing screws. Parts Needed- No.13 QTY 1 - No.14 QTY 2 Fix the Cover trims (No.13 and No.14) to the bottom of the window openings, ensuring they sit ush to the top of the bar. Secure using 4x40mm screws for the front Cover trim (No.13), 3x40mm screws for the side cover trims (No.14).
  • Page 19 REGISTER FOR YOUR PLEASE SCAN HERE: ANTI-ROT GUARANTEE TODAY...
