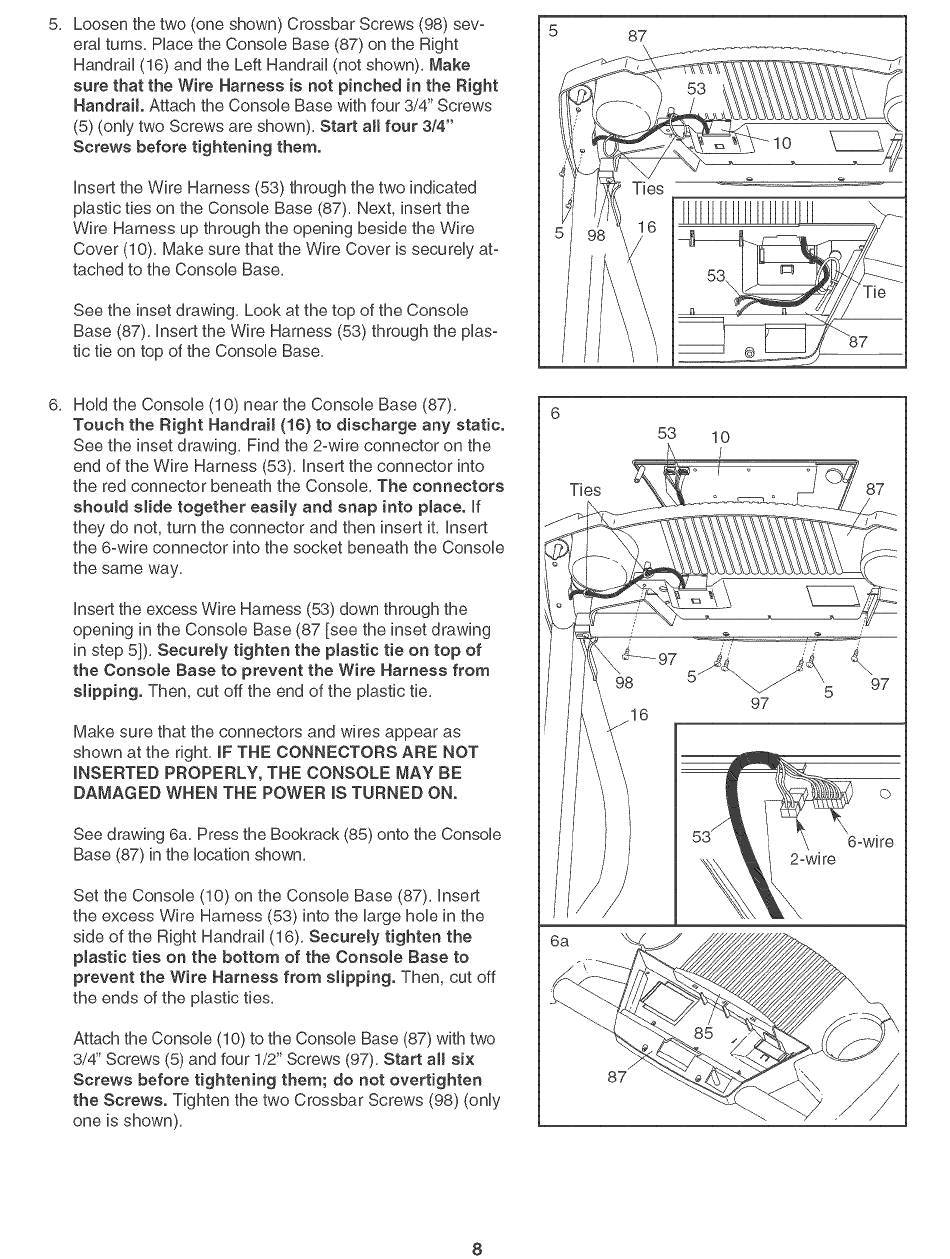

5, Loosen the two (one shown) Crossbar Screws (98) sev-
eral turns, Place the Console Base (87) on the Right
Handrail (16) and the Left Handrail (not shown), Make
sure that the Wire Harness is not pinched in the Right
Handrail. Attach the Consob Base with four 3/4" Screws
(5) (onUytwo Screws are shown), Start all four 3/4"
Screws before tightening them.
insert the Wire Harness (53) through the two indicated
pDstb ties on the Consob Base (87), Next, insert the
Wire Harness up through the opening beside the Wire
Cover (10), Make sure that the Wire Cover is secureUy at-
tached to the Consob Base,
See the inset drawing, Look at the top of the Consob
Base (87), insert the Wire Harness (53) through the pUas-
tic tie on top of the Consob Base,
6, HoUdthe Consob (10) near the Consob Base (87),
Touch the Right Handrail (16} to discharge any static.
See the inset drawing, Find the 2-wire connector on the
end of the Wire Harness (53), insert the connector into
the red connector beneath the Consob, The connectors
should shale together easily and snap into place. If
they do not, turn the connector and then insert it, Insert
the 6°wire connector into the socket beneath the Console
the same way,
Insert the excess Wire Harness (53) down through the
opening in the Console Base (87 [see the inset drawing
in step 5]), SecureJy tighten the plastic tie on top of
the Consote Base to prevent the Wire Harness from
slipping. Then, cut off the end of the plastic tie,
Make sure that the connectors and wires appear as
shown at the right, IF THE CONNECTORS ARE NOT
INSERTED PROPERLY, THE CONSOLE MAY BE
DAMAGED WHEN THE POWER IS TURNED ON.
See drawing 6a, Press the Bookrack (85) onto the Console
Base (87) in the location shown,
Set the Console (10) on the Console Base (87), insert
the excess Wire Harness (53) into the large hob in the
side of the Right Handrail (16), Securely tighten the
plastic ties on the bottom of the Console Base to
prevent the Wire Harness from slipping. Then, cut off
the ends of the plastic ties,
Attach the Console (10) to the Console Base (87) with two
3/4" Screws (5) and four 1/2" Screws (97), Start aH six
Screws before tightening them; do not overtighten
the Screws. Tighten the two Crossbar Screws (98) (only
one is shown),
Ties
6a
87
Ties
53 10
98
.16
97
97
©
6-wire
2 -wi re
87
