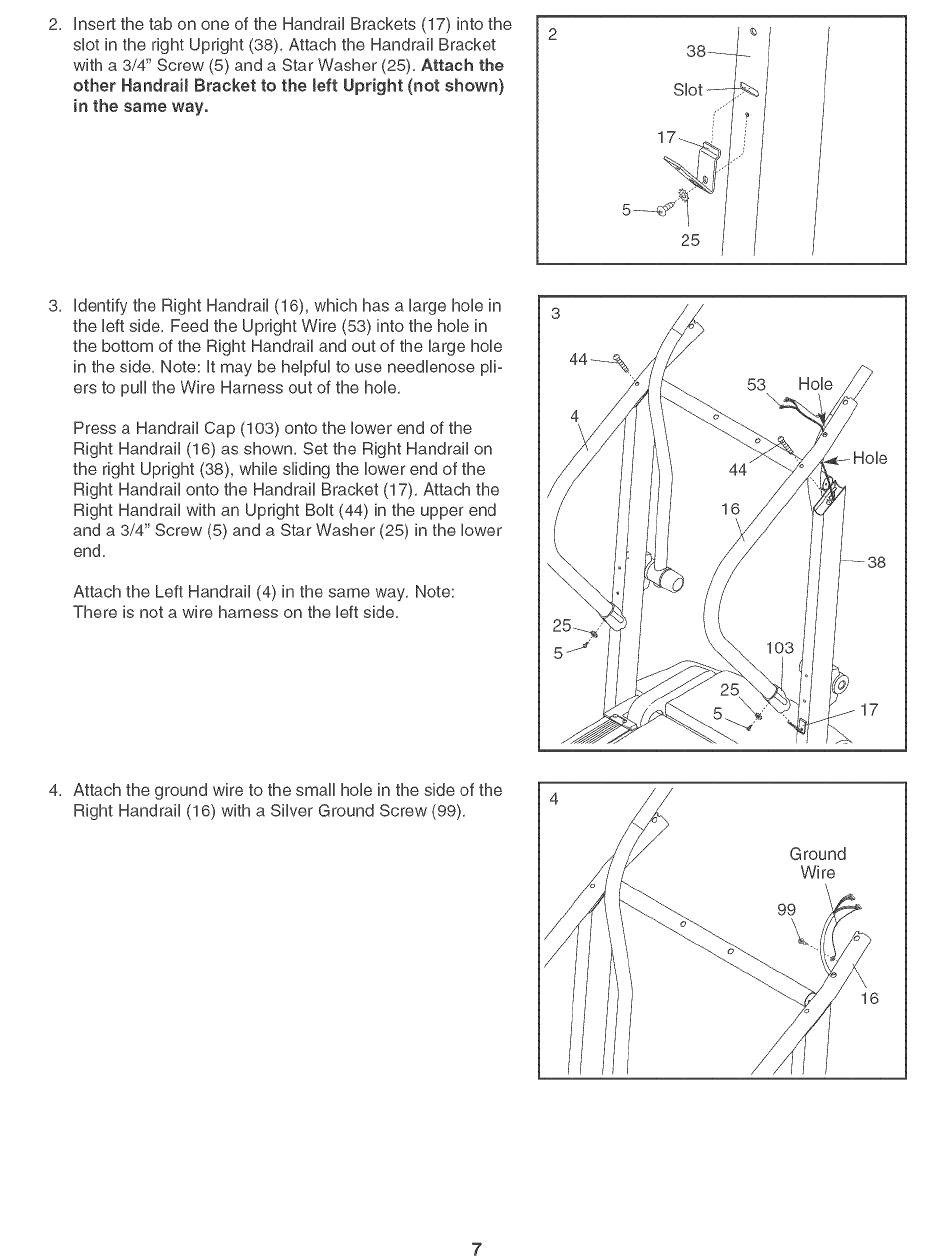

2, Insert the tab on one of the Handrail Brackets (17) into the
suet in the right Upright (38), Attach the Handrail Bracket
with a 3/4" Screw (5) and a Star Washer (25), Attach the
other Handrail Bracket to the left Upright (not shown}
in the same way.
25
3, Udentify the Right Handrail (16), which has a UargehoUein
the Ueftside, Feed the Upright Wire (53) into the hoUein
the bottom of the Right Handrail and out of the large hoUe
in the side, Note: Utmay be heUpfuU to use needUenose pH=
ers to pull the Wire Harness out of the hoUe,
Press a Handrail Cap (103) onto the Uower end of the
Right Handrail (16) as shown, Set the Right Handrail on
the right Upright (38), while sliding the lower end of the
Right Handrail onto the Handrail Bracket (17), Attach the
Right Handrail with an Upright Bolt (44) in the upper end
and a 3/4" Screw (5) and a Star Washer (25) in the lower
end,
Attach the Left Handrail (4) in the same way, Note:
There is not a wire harness on the left side,
\
53
\
Hole
Hole
4, Attach the ground wire to the small hole in the side of the
Right Handrail (16) with a Silver Ground Screw (99),
Ground
Wire
99
7
