Summary of Contents for Tru-Turf RB70

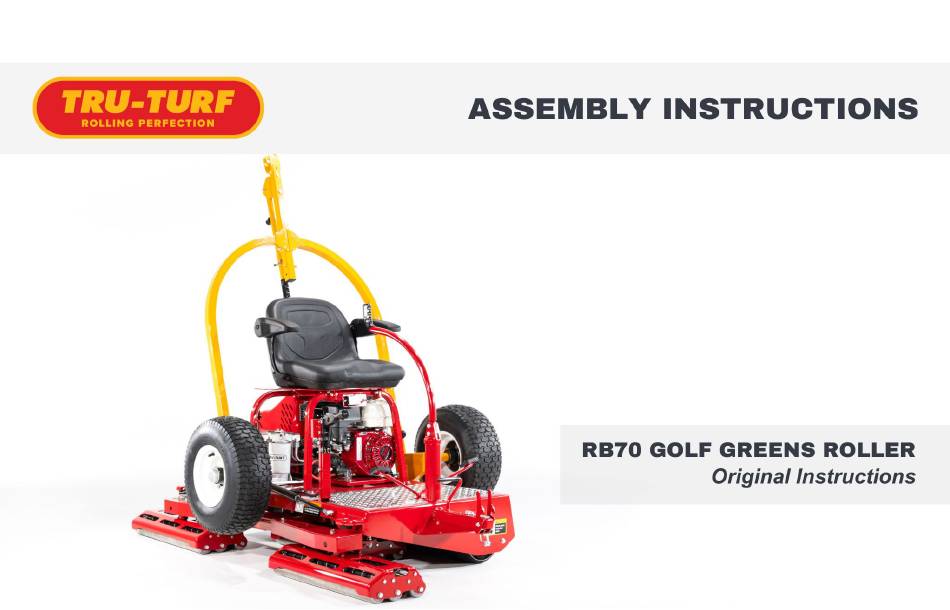

- Page 1 Assembly Instructions RB70 GOLF GREENS ROLLER Original Instructions Results through design; not weight.
-
Page 2: Table Of Contents
Table of Contents Safety Information Transport Lifting Assembly Assembly Procedure Pre-Operation Checklist Manual Revision: A Change Description: Initial release. Released: 02/03/2023 RB70 Assembly Instructions... -
Page 3: Safety Information
To ensure safe operation of the RB70 Golf Greens premature release of the catch. Roller, please follow the following safety guidelines. • If the trailer catch is not correctly engaged while •... - Page 4 All assembly can be done by reaching from the outside. You must always employ safe working practices when performing any assembly or service tasks on the machine. RB70 Assembly Instructions...
-
Page 5: Transport Lifting
The lift points shown in the diagram, must only be used to lift the machine to carry out transport lifting. It is not permitted to carry out maintenance whilst the roller is hanging from the slings. Sling here (around pivot axle) RB70 Assembly Instructions... -
Page 6: Assembly
5/16” x 3/4” UNC Bolts Tires mounted on Wheel Rim Steering Joystick Dampener Strut (attached to main body end) Left-side Trailer Arm Right-side Trailer Arm 30mm External Circlips Drawbar Coupling Assembly 3/8” x 1-1/2” UNF 2P Bolts 3/8” UNF Nyloc Nuts RB70 Assembly Instructions... -
Page 7: Assembly Procedure
Assembly Procedure After unpacking the roller machine, place the it on a flat surface. Chock the rollers either side of the machine to prevent movement. RB70 Assembly Instructions... - Page 8 Assembly Procedure Step 1: Mounting the armrests to the seat base. • Fit the armrests to the seat pan using the supplied screws, make sure the screws are all tightened. RB70 Assembly Instructions...
- Page 9 Step 2: Mounting the seat to the seat base plate. • Place the assembled seat on the seat base plate. Use the four 5/16” x 3/4” UNC bolts and spring washers supplied to fasten the seat to the plastic engine cover. RB70 Assembly Instructions...
- Page 10 • If necessary, use a soft-headed hammer to tap the trailer arm onto the axle until the circlip groove is revealed, fit the circlip, ensuring it is correctly located in the groove. • The gas strut will hold the trailer arm in the vertical orientation. RB70 Assembly Instructions...
- Page 11 Grease the machined portion. • Slide the left-hand side trailer arm, onto the axle. Do not fit the circlip at this stage, ( see the next step). RB70 Assembly Instructions...
- Page 12 Fit the circlip, ensuring it is correctly located in the groove. • Test to ensure the trailer catch is correctly locking the trailer arms in the down position and the catch locking pin fits correctly when transporting the roller, for safety. RB70 Assembly Instructions...
- Page 13 Assembly Procedure Step 6: Attaching the drawbar extension arm. • Align holes of the extension arm with those on the drawbar. • Fit the 2X 5/16" UNF X 2-1/4" bolts and nuts. RB70 Assembly Instructions...
- Page 14 • Remove wheel nuts from both hubs, slide wheels onto hub with air valves facing outwards. Replace wheel nuts and tighten securely. • Ensure the taper on the nuts, mate into the wheel tapers correctly. RB70 Assembly Instructions...
- Page 15 3/8” bolt into the bottom bolt hole, select a comfortable operating position, push the joystick forward for extra operating room or back for less, once determined insert the other 3/8” bolt into the upper hole and tighten both bolts securely. RB70 Assembly Instructions...
- Page 16 The dampener strut is designed to hold the trailer arms back behind the operator with the wheels off the ground. The trailer arms will remain in this position whilst rolling the greens. RB70 Assembly Instructions...
-
Page 17: Pre-Operation Checklist
❑ Lightly grease bearings fitted to drive roller, spiker shaft (if fitted) and Smoothing Head pivot bearings. Replace plastic caps if missing. ❑ Oil rod ends, sparingly. ❑ Check tire pressure for proper operating pressure (18-24psi). Do not over inflate. RB70 Assembly Instructions...
