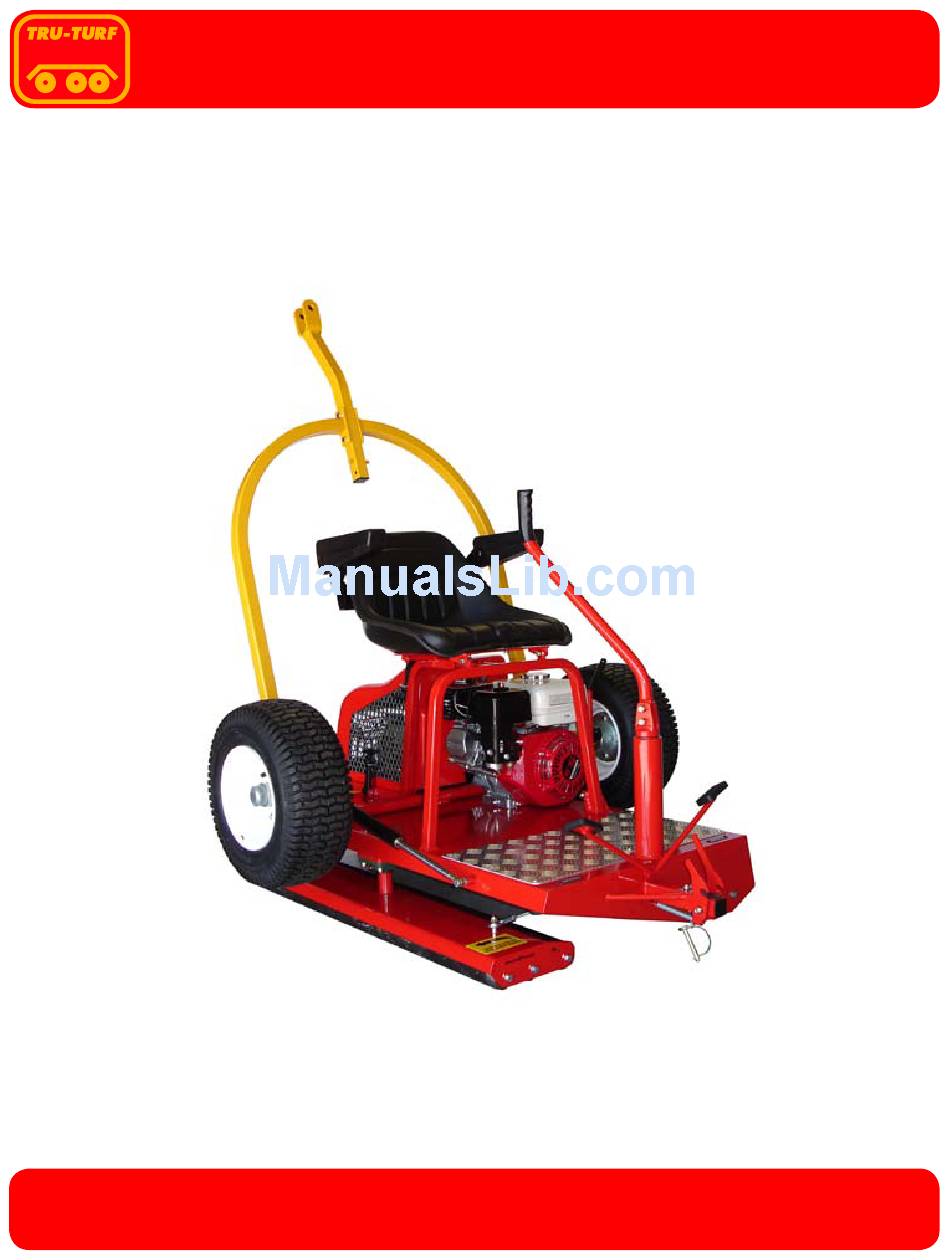

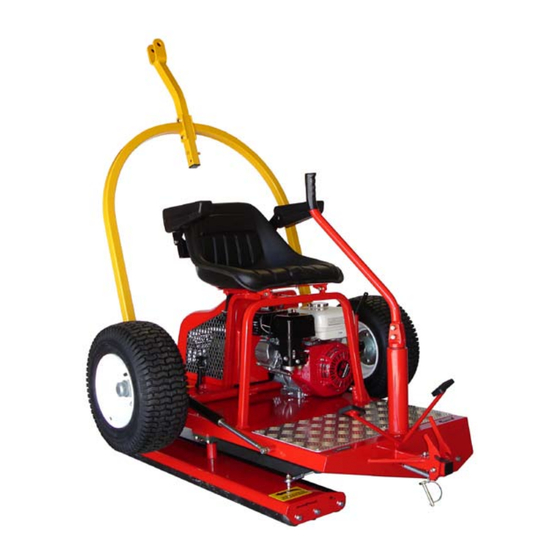

- Page 1 GR7000C GOLF ROLLER MANUAL rollers 56 Export Drive, Ernest Junction, Qld. 4214 Ph .+ 61 7 5594 7199 www.truturf.com email: sales@truturf.com Fax + 61 7 5571 5493...
-
Page 2: Table Of Contents
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers CONTENTS Important Machine Information Record Safety Information Warranty Assembly List of components Mounting seat to seat frame Mounting steering arm to machine Attaching trailer arm to machine Attaching dampener strut and trailer arm... -
Page 3: Important
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers IMPORTANT PLEASE READ AND UNDERSTAND BEFORE OPERATING MACHINE Pre-check all nuts, bolts, grub screws for tightness prior to operating machine. Understand the operating procedures and the controls before operating. -
Page 4: Machine Information Record
Greens. The following operation and maintenance manual has been prepared for use with the GR7000C Golf Greens Roller. It is intended as a guide and supplemental updates to the manual may take place at a future date. -
Page 5: Safety Information
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers SAFETY INFORMATION Safety is of the utmost importance when operating turf equipment. To ensure safe operation of the GR7000C Roller, please follow the following safety guidelines. Always make a pre-operation inspection before you start the engine. If this procedure is not carried out damage to property or personnel may occur. -
Page 6: Warranty
We will not cover parts that have been altered or modified by anyone other than Tru-Turf Equipment nor will we cover used parts that are installed in place of failed parts. We will not cover parts that have not been installed correctly by the end user or its agents nor will we cover parts that have not been maintained as per the Operator’s Manual. -
Page 7: Assembly
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers ASSEMBLY When you receive the crate, the machine will be broken down into components ready for assembly. If you run into any problems during assembly, please feel free to call your local distributor or agent. -
Page 8: Attaching Dampener Strut And Trailer Arm
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers MOUNTING THE SEAT TO THE SEAT FRAME BASE • Place the seat down with the seat back oriented toward the rear of the machine (the front of the machine is the side where the pedals are located). -
Page 9: Attaching Drawbar To Trailer Arm
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers ATTACHING DRAWBAR TO TRAILER ARMS • Locate the drawbar assembly. • Gather the ends of the right and left trailer arms. • Place the drawbar assembly between the trailer arms and align the holes, ensure the bend is upwards. -
Page 10: Operation And Maintenance
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers OPERATION AND MAINTENANCE CORRECT DAMPENER STRUT OPERATION • When the roller is in the trailing position and the front of the roller resting on the ground, carefully hold the drawbar assembly, release the locking catch. With a firm grip begin to raise the drawbar, when it has travelled sufficiently the dampener strut will take over &... - Page 11 GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers • It is necessary to ensure there is a minimum of 3/8” oil in the plastic expansion cup when in the cold state. Do not over fill the cup as it is an expansion chamber to collect the oil from the transmission when operating at high temperatures.
-
Page 12: Pre-Operation
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers PRE-OPERATION PRE-OPERATION CHECKS • Check engine as per Honda / Kohler manual. • Ensure steering joystick has no looseness. • Ensure that the trailer bar locking catch mechanism is securely locked to the main frame bolt when in the towing position. -
Page 13: Points To Remember
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers slipping or spinning of the drive roller will occur on or off the green. • Whilst becoming familiar with the roller, set the throttle at about 1/2 speed. Press the left or right foot pedal down gently the further the pedal is depressed the faster the roller will travel. -
Page 14: Maintenance
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers When rolling steep greens and the engine stops, check engine oil level. The engine is fitted with a safety switch; when the engine oil level is low the engine will stop. -
Page 15: Maintenance Schedule
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers MAINTENANCE SCHEDULE... -
Page 16: Fault Finding
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers FAULT FINDING ROLLER LOOSES POWER OR SLOWS DOWN WHEN OPERATING Check: Correct oil is used in transmission (Mobil 1 or equivalent). Smoothing Rollers & Drive roller bearings are not seized. -
Page 17: Machine Components
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers MACHINE COMPONENTS R6019 R6008 R5007 R6002 R6017 R6037 R5009 R6036 R5005 G7020 R6015 R5016 G7019... -
Page 18: R5012
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers G7001 R5036A R5036 R5087 R5068 R5070 R5070 R5068 R5039A R5039 Bottom View R5012 R8005 R5075 R5075 R5164 R5012 R8001 Foot Control R5158 R6002 R5129 R6006 R5159 G7000C Top View... -
Page 19: R5043
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers... -
Page 20: R5031
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers R5034 R5033 R5108 R5114 R5089 R5111 R5170 R5032 R5173 R5168 M8 nut R5031 R5090 R5109 R5105 R5046 R8005 R5164 R5118 R5184 R5118 R5172 R5179 R5169... -
Page 21: R5035
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers R5034 R5035 R5036A R5036 R5090 Nyloc nut R5183 R5188 R5099 R5037 R5050 R5188 R5094 R5038 R5095 R5038... -
Page 22: R5014
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers... -
Page 23: R5067
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers... -
Page 24: R5085
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers R5091 (Honda 5.5 hp) R5031 R5162 (Kohler 6.0 hp) R5195 R5105 R5085 Engine & Base R5007 R6037 R5005 R5016 R6003 R6036 Seat & Base... -
Page 25: R5010
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers R6017 R6019 R6001 R5049 Drawbar & Catch R5050 R5014 R6006 R6011 R6007 Emergency & Park Brake R5118 G7009 R5009 G7008 R5049 R5118 R6009 R6012 R5010 R5156 R6008 Joystick & Steering Shaft... -
Page 26: R5112
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers R6019 R8002 R8008 R5049 R5204 R6001 R5203 R5210 R5203 R8009 R5112 R5112 R6035 Complete R6026 R6030 R6034 R6033 R6039 R6032 R6027 R6028 R6029 R6031... -
Page 27: Labels
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers LABELS TRU-TURF GREENS ROLLER Manufactured in Australia R7019 Model: GR7000C Serial # G7000 Email: sales@truturf.com Web: www.truturf.com Patented in the U.S.A Lubricate drive chain prior to each operation Check roller bearings regularly, replace if worn... -
Page 28: Options
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers OPTIONS R5120 Light Kit Complete, Order R5127 R5122 R5125 R5121 R5119 R5126 R5119 R5123 R5124 Light Kit G4077 Wire Scrapers... -
Page 29: Parts List
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers PARTS LIST PART NO. PAGE NO. DESCRIPTION R5005 15,22 Bracket; Arm Rest Support R5007 15,22 Seat; Pan; P2 R5009 15,23 Grip; Hand; Joystick R5010 Bearing; 6304 R5012 Pad; Rubber; Foot Pedal... - Page 30 GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers R5108 Ball Fitting; Small Flange R5109 Clip; Retainer R5111 Clip; Retainer R5112 Circlip; External 25mm R5113 Washer; Flat 44x24x2mm R5114 Cup; End Short R5118 17,18,20,23 Rod End R5129 Meter; Hour/Tach R5156 Key;...
- Page 31 GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers PART NO. PAGE NO. DESCRIPTION R6015 Plate, Footrest, Checker R6017 15,23 Pin; Safety, Drawbar R6019 15,23,24 Drawbar R6023 20,25 Plate; Emergency & Park Brake R6024 Plate; Move Right R6025 Plate;...
- Page 32 GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual rollers OPTIONS AVAILABLE PART NO. PAGE NO. DESCRIPTION R8009 Bush; Bronze Trailer arm R8014 Circlip; Tube Roller internal 52mm R8016 Bearing; 6205; 25x52mm Stainless Steel R8018 Bearing; 6304; 20x52mm Stainless Steel...
