OWNERS MANUAL
RB48 GOLF GREENS ROLLER
Results through design; not weight.
RB48 Owners Manual
www.truturf.com
1

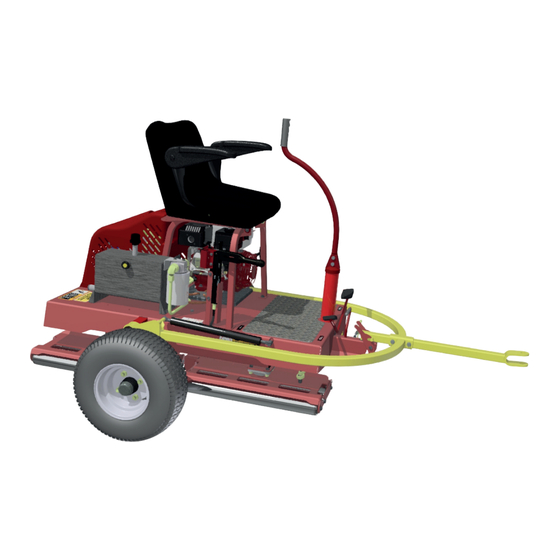

* Roller shown has optional upgrades installed.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB48 and is the answer not in the manual?

Questions and answers

Related Manuals for Tru-Turf RB48

Summary of Contents for Tru-Turf RB48

  • Page 1 OWNERS MANUAL RB48 GOLF GREENS ROLLER Results through design; not weight. RB48 Owners Manual www.truturf.com * Roller shown has optional upgrades installed.

  • Page 2: Table Of Contents

    Assembly .................8 Pre-Operation Checklist ..........12 Standard Operation Procedures ........13 Points To Remember ...........15 Maintenance Schedule ..........16 Separate Engine Owners Manual can be Maintenance ..............17 downloaded from www.truturf.com Safety & Instructional Decals ........19 Operating Positions .............20 Components ..............21 RB48 Owners Manual www.truturf.com...

  • Page 3: Machine Information Record

    Green Roller and your move to smoother, faster, Distributor Information more consistent putting Greens. Name: Address: The following operation and maintenance manual has been prepared for use with the RB48 Golf Green Telephone: Roller. Fax: Email: It is intended as a guide and supplemental updates to the manual may take place at a future date, without prior notice.

  • Page 4: Specifi Cations

    Operating Speed 0-9 mph (0-15kph) Warranty 2 years - Limited manufacturers warranty Steering Joystick - Light load, directly connected to smoothing heads Vibration Reduced through engine isolation mounts Seat Premium UV protected, with adjustable arm rests RB48 Owners Manual www.truturf.com...

  • Page 5: Safety Information

    To ensure safe operation of the RB48 Golf Greens Roller, please follow the following safety guidelines. • When transporting the roller or carrying out main- tenance, make sure the trailer lock down mech- •...
  • Page 6 Always stop engine before opening safety cover. • Never ride on the machine when machine is being towed. Operator: remember it is your responsibility to be aware of your surroundings. To avoid accidents, think safe and operate safe. RB48 Owners Manual www.truturf.com...

  • Page 7: Warranty

    Warranty Conditions and Products Covered Tru-Turf Service Department Tru-Turf warrant your Tru-Turf Roller to be free from Tru-Turf Pty Ltd defects in materials or workmanship for two years 6/8 Technology Drive or 1550 operational hours*, whichever occurs fi rst. Arundel, Qld 4214 This warranty is applicable to all products.
  • Page 8 Tru-Turf. Tru- • Normal noise, vibration, wear and tear, and Turf will make the fi nal decision whether to repair deterioration. any existing part or assembly or replace it. Tru-Turf may use remanufactured parts for warranty repairs. RB48 Owners Manual www.truturf.com...
  • Page 9 Warranty Note Regarding Deep Cycle Battery Warranty: Tru-Turf is not liable for indirect, incidental or Deep cycle batteries have a specifi ed total number consequential damages in connection with the use of kilowatt-hours they can deliver during their of the Tru-Turf Products covered by this warranty, lifetime.

  • Page 10: Assembly

    Tires mounted on Wheel Rim Steering Joystick Dampener Strut (attached to main body end) Left-side Trailer Arm Right-side Trailer Arm 30mm External Circlips Drawbar Coupling Assembly 3/8” x 11/2” UNF ZP Bolts 3/8” UNF Nyloc Nuts RB48 Owners Manual www.truturf.com...
  • Page 11 fi t the circlip, ensuring it is located in the • Locate the trailer arm support axle 30mm in groove correctly. diameter (1 1/4”) which extends out on the left side of the machine, remove the circlip from the support axle. Grease the machined portion. RB48 Owners Manual www.truturf.com...
  • Page 12 (do not use excessive force) the low P.S.I. until the trailer arms will travel no further. • Remove wheel nuts from both hubs, slide wheels onto hub with air valves facing outwards. Replace wheel nuts and tighten securely. RB48 Owners Manual www.truturf.com...
  • Page 13 Step 8: Lubricate smoothing head pivot bearings. • There is a grease nipple or zirk located on the 3 smoothing head centre ball joint swivels. Apply grease to lubricate fi ttings. RB48 Owners Manual www.truturf.com...

  • Page 14: Pre-Operation Checklist

    Grease lightly bearings fi tted to drive roller, spiker shaft (if fi tted) and Smoothing Head pivot bearings. Replace plastic caps if missing. Oil rod ends, sparingly. Check tire pressure for proper operating pressure (18-24psi). Do not over infl ate. RB48 Owners Manual www.truturf.com...

  • Page 15: Standard Operation Procedures

    You should be able to to ensure there are no crease lines produced on complete the rolling of 18 greens in the same the surface. time or quicker than by mowing using a triplex mower on a single charge. RB48 Owners Manual www.truturf.com...
  • Page 16 fi tted on the roller draw bar hitch. b). When towing forwards or reversing, be sure that the roller is not put into a jack- knifed position, if it is, then damage to the pin hitch will occur. RB48 Owners Manual www.truturf.com...

  • Page 17: Points To Remember

    • Roll in straight lines. • Move off the green when rolling is complete before putting the trailer in the down position. RB48 Owners Manual www.truturf.com...

  • Page 18: Maintenance Schedule

    Check smoothing roller bearing √ √ √ Check drive roller bearings √ √ √ Check for loose nuts and bolts √ √ Renew smoothing roller bearings √ Renew drive roller bearings √ Replace trailer strut as required RB48 Owners Manual www.truturf.com...

  • Page 19: Maintenance

    • It is important to store this roller in the towing position. This ensures the trailer strut is in the closed position, protecting the shaft from corrosion, then failure and also the weight is taken Sling here off the roller and bearings. (around pivot axle) RB48 Owners Manual www.truturf.com...
  • Page 20 (b) Remove roller shaft bolts from end plates, remove rollers from the heads. RB48 Owners Manual www.truturf.com...

  • Page 21: Safety & Instructional Decals

    Replace any decal that is damaged or missing. R6057 - Tru-Turf Logo Decal R9483 - Machine ID Plate. (Note: This is not a spare part and will come attached from manufacturer).

  • Page 22: Operating Positions

    Operating Positions Towing position Rolling position RB48 Owners Manual www.truturf.com...

  • Page 23: Components

    M6 X 6 GRUB SCREW, (CUP POINT), BLK R9503 MACHINING, DISC BRAKE R9504 MACHINING, DRIVE ROLLER, COMPACT R9508 1/4" X 3/4" WOODRUFF KEY R9509 SPACER, DRIVE ROLLER SHAFT PART NUMBER: R9456 REVISION: C DATE: 11/02/2021 BY: SP PART NUMBER: R9456 REVISION: C RB48 Owners Manual www.truturf.com...
  • Page 24 CIRCLIP INTERNAL D1300-50 R8978 WELDMENT, STEERING BOSS BRACKET R8981 PIN, STEERING BOSS R8982 WELDMENT, PIVOT ARM R9452 BOLT, HEX HD, 1/2" X 2.75 UNC PART NUMBER: R8977 REVISION: E DATE: 02/10/2020 BY: SP PART NUMBER: R8977 REVISION: E RB48 Owners Manual www.truturf.com...
  • Page 25 NUT, HEX, NYLOC, SS - 3/16" UNF R9457 SCRAPER, SMOOTHING ROLLER RS2050 SMOOTHING ROLLER, LONG, COMPLETE ASSY RS2182 SPACER, STEERING, HEAD & ARM RS2433 WELDMENT, SMOOTH HEAD, FRONT PART NUMBER: RS2431 REVISION: B DATE: 11/02/2021 BY: SP PART NUMBER: RS2431 REVISION: B RB48 Owners Manual www.truturf.com...
  • Page 26 ASSEMBLY, TIE ROD ASSY, 1/2" UNF RS2431 ASSEMBLY, SMOOTHING HEAD, FRONT RS2432 ASSEMBLY, SMOOTHING HEAD, REAR RS2438 WELDMENT, PIVOT BEAM RS2444 ASSEMBLY, STEERING ROD, 1/2" UNF PART NUMBER: RS2430 REVISION: B DATE: 11/02/2021 BY: SP PART NUMBER: RS2430 REVISION: B RB48 Owners Manual www.truturf.com...
  • Page 27 R8250 NUT, HEX, NYLOC, SS - 3/16" UNF R9457 SCRAPER, SMOOTHING ROLLER RS2050 SMOOTHING ROLLER, LONG, COMPLETE ASSY RS2434 WELDMENT, SMOOTH HEAD,REAR PART NUMBER: RS2432 REVISION: C DATE: 11/02/2021 BY: SP PART NUMBER: RS2432 REVISION: C RB48 Owners Manual www.truturf.com...
  • Page 28 LINK, ROD END - 1/2" UNF x 137 CRS RS2445 TUBE, TIE ROD, STEERING RS2090 ROD, THREADED, BROOKER - 1/2" UNF RS2446 ROD, THREADED, 1/2" UNF RS2091 TUBE, TIE ROD, STEER SMOOTHING HEADS PART NUMBER: RS2060 REVISION: B DATE: 11/02/2021 BY: SP RB48 Owners Manual www.truturf.com...
  • Page 29 MUST BE CORRECTLY TIGHTENED TO 47 ft-lbs OR 63.7 Nm. IF NOT THE DRAWBAR CAN BECOME LOOSE AND THE HOLES WILL WEAR PART NUMBER: R9460 MAKING IT DANGEROUS WHEN TOWING OR RAISING / LOWERING THE TRAILER. REVISION: A RB48 Owners Manual www.truturf.com...
  • Page 30 ENGINE, HONDA, GX200, 2:1 REDUCTION R9155 J-CLIP, VINYL, 5/16" X 9/32" R9156 DOUBLE TUBE CLAMP, 5/16" X 13/32" X 11/16" T39072 SHIM, ADJUSTING, ENGINE MOUNT PART NUMBER: R9427 REVISION: A DATE: 28/12/2020 BY: SP PART NUMBER: R9427 REVISION: A RB48 Owners Manual www.truturf.com...
  • Page 31 M8 NYLOC NUT, ZP R9085 KEY, OUTPUT SHAFT, EATON 11 R9358 ASSEMBLY, GAS STRUT T39478 SPACER, PEDAL STRUT, YOKE TRANSMISSION PART NUMBER: RS2061 REVISION: F DATE: 29/12/2020 BY: SP PART NUMBER: RS2061 REVISION: F PART NUMBER: RS2061 REVISION: F RB48 Owners Manual www.truturf.com...
  • Page 32 ARM, CHAIN TENSION, WELDED, ASSY R8048 3/8" X 3/4" FLAT WASHER, ZP R8055 3/8" UNF NYLOC NUT, ZP R8293 PIN, ROLL, SPRING, ZP - M5 x 24 LG PART NUMBER: R5251_1 REVISION: B DATE: BY: SP RB48 Owners Manual www.truturf.com...
  • Page 33 ARM, CHAIN TENSION, WELDED, ASSY R8048 3/8" X 3/4" FLAT WASHER, ZP R8055 3/8" UNF NYLOC NUT, ZP R8293 PIN, ROLL, SPRING, ZP - M5 x 24 LG PART NUMBER: R5251 REVISION: B DATE: 28/12/2020 BY: SP RB48 Owners Manual www.truturf.com...
  • Page 34 R9453 ASSEMBLY, FOOT PEDAL R9456 ASSEMBLY, DRIVE ROLLER, COMPACT R9476 MUD FLAP MODIFICATION R9477 DRIVE CHAIN, DUPLEX (08B-2) R9483 PLATE, SERIAL NUMBER, RB48 R9487 CALIPER MOUNTING BRACKET R9496 BRAKE CALLIPER, LH R9497 ASSEMBLY, CABLE, DISC BRAKE R9510 DECAL, MODEL ID...
  • Page 35 PART NUMBER DESCRIPTION R9427 ASSEMBLY, ENGINE MOUNT, GX200 RS2155 DRAIN HOSE - HONDA ENGINE GX200 RS2418 ASSEMBLY, HYDRAULIC DRIVE RS2419 ASSEMBLY, DRIVE COUPLING PART NUMBER: RS2410 REVISION: C DATE: 02/10/2020 BY: SP PART NUMBER: RS2410 REVISION: C RB48 Owners Manual www.truturf.com...
  • Page 36 TUBE, DRIVE OUT - TANK IN R8930 OIL LEVEL SITE GLASS RS2061 ASSEMBLY,TRANSMISSION UNIT RS2417 WELDMENT, HYD TANK PART NUMBER: RS2418 REVISION: C DATE: 28/12/2020 BY: SP PART NUMBER: RS2418 REVISION: C PART NUMBER: RS2418 REVISION: C RB48 Owners Manual www.truturf.com...
  • Page 37 5/16" UNF NYLOC NUT, ZP R8065 5/16" UNF X 1-1/2" BOLT, ZP R8079 5/16" UNF X 5/16" GRUB SCREW, BLK R8134 6-6 RIVET, ALUMINIUM PART NUMBER: RS2419 REVISION: A DATE: 28/12/2020 BY: SP PART NUMBER: RS2419 REVISION: A RB48 Owners Manual www.truturf.com...
  • Page 38 MISCO SEAT ALL PVC WITH ARMS MSC R8484 5/16" UNC X 1" BOLT, ZP R8497 4-8 RIVET, ALUMINIUM R9484 WELDMENT, SEAT FRAME R9485 WELDMENT, SEAT BASE PART NUMBER: R9450 REVISION: B DATE: 11/02/2021 BY: SP PART NUMBER: R9450 REVISION: B RB48 Owners Manual www.truturf.com...
  • Page 39 1/2" UNC NYLOC NUT, ZP R8070 3/8" UNF X 1-1/2" SET SCREW, ZP R8101 1/2" UNF NYLOC NUT, ZP RS2451 WELDMENT, STEERING ARM PART NUMBER: RS2450 REVISION: B DATE: 11/02/2021 BY SP PART NUMBER: RS2450 REVISION: B RB48 Owners Manual www.truturf.com...
  • Page 40 WELDMENT, FOOT PEDAL R8055 3/8" UNF NYLOC NUT, ZP R8060 1/2" UNC NYLOC NUT, ZP R8069 3/8" UNF X 1-1/4" SET SCREW, ZP R9462 WELDMENT, FOOT PEDAL ARM PART NUMBER: R9453 REVISION: A DATE: 11/08/2021 BY: SP RB48 Owners Manual www.truturf.com...
