Summary of Contents for Tru-Turf RB70

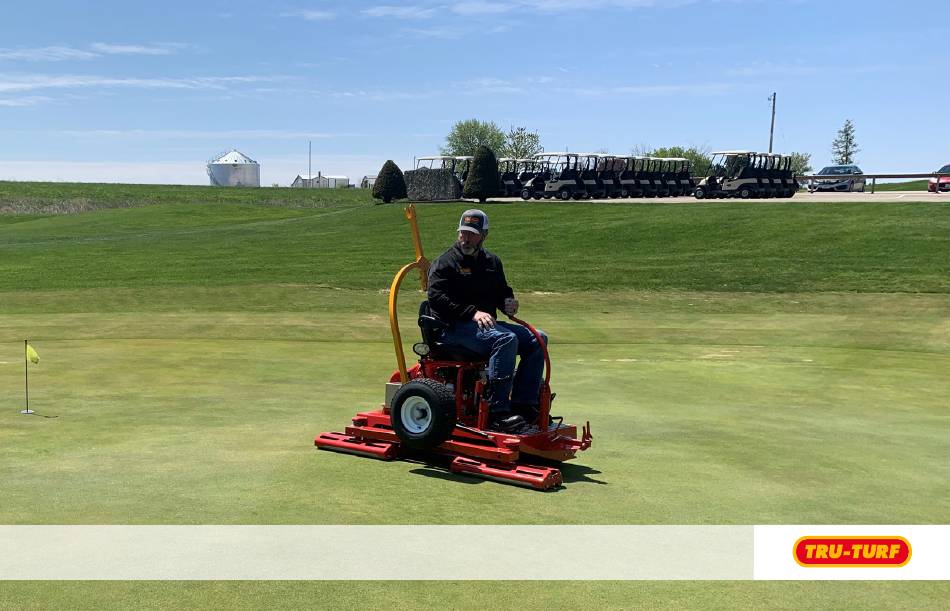

- Page 1 OWNERS MANUAL RB70 GOLF GREENS ROLLER Results through design; not weight. RB70 Owners Manual www.truturf.com...
-
Page 2: Table Of Contents
Assembly .................8 Pre-Operation Checklist ..........12 Standard Operation Procedures ........13 Points To Remember ...........15 Maintenance Schedule ..........16 Separate Engine Owners Manual can be Maintenance ..............17 downloaded from www.truturf.com Safety & Instructional Decals ........19 Operating Positions .............20 Components ..............21 RB70 Owners Manual www.truturf.com... -
Page 3: Machine Information Record
Green Roller and your move to smoother, faster, Distributor Information more consistent putting Greens. Name: Address: The following operation and maintenance manual has been prepared for use with the RB70 Golf Green Telephone: Roller. Fax: Email: It is intended as a guide and supplemental updates to the manual may take place at a future date, without prior notice. -
Page 4: Specifications
Operating Speed 0-9 mph (0-15kph) Warranty 2 years - Limited manufacturers warranty Steering Joystick - Light load, directly connected to smoothing heads Vibration Reduced through engine isolation mounts Seat Premium UV protected, with adjustable arm rests RB70 Owners Manual www.truturf.com... -
Page 5: Safety Information
To ensure safe operation of the RB70 Golf Greens Roller, please follow the following safety guidelines. • When transporting the roller or carrying out main- tenance, make sure the trailer lock down mech- •... - Page 6 Always stop engine before opening safety cover. • Never ride on the machine when machine is being towed. Operator: remember it is your responsibility to be aware of your surroundings. To avoid accidents, think safe and operate safe. RB70 Owners Manual www.truturf.com...
-
Page 7: Warranty
Warranty Conditions and Products Covered Tru-Turf Service Department Tru-Turf warrant your Tru-Turf Roller to be free from Tru-Turf Pty Ltd defects in materials or workmanship for two years 6/8 Technology Drive or 1550 operational hours*, whichever occurs first. Arundel, Qld 4214 This warranty is applicable to all products. - Page 8 Tru-Turf. Tru- • Normal noise, vibration, wear and tear, and Turf will make the final decision whether to repair deterioration. any existing part or assembly or replace it. Tru-Turf may use remanufactured parts for warranty repairs. RB70 Owners Manual www.truturf.com...
- Page 9 Note Regarding Deep Cycle Battery Warranty: consequential damages in connection with the use Deep cycle batteries have a specified total number of the Tru-Turf Products covered by this warranty, of kilowatt-hours they can deliver during their including any cost or expense of providing substitute lifetime.
-
Page 10: Assembly
Tires mounted on Wheel Rim Steering Joystick Dampener Strut (attached to main body end) Left-side Trailer Arm Right-side Trailer Arm 30mm External Circlips Drawbar Coupling Assembly 3/8” x 11/2” UNF ZP Bolts 3/8” UNF Nyloc Nuts RB70 Owners Manual www.truturf.com... - Page 11 • Locate the trailer arm support axle 30mm in groove correctly. diameter (1 1/4”) which extends out on the left side of the machine, remove the circlip from the support axle. Grease the machined portion. RB70 Owners Manual www.truturf.com...
- Page 12 (do not use excessive force) the low P.S.I. until the trailer arms will travel no further. • Remove wheel nuts from both hubs, slide wheels onto hub with air valves facing outwards. Replace wheel nuts and tighten securely. RB70 Owners Manual www.truturf.com...
- Page 13 The trailer arms will remain in this position whilst rolling the greens. Step 8: Lubricate smoothing head pivot bearings. • There is a grease nipple or zirk located on the 3 smoothing head centre ball joint swivels. Apply grease to lubricate fittings. RB70 Owners Manual www.truturf.com...
-
Page 14: Pre-Operation Checklist
Grease lightly bearings fitted to drive roller, spiker shaft (if fitted) and Smoothing Head pivot bearings. Replace plastic caps if missing. Oil rod ends, sparingly. Check tire pressure for proper operating pressure (18-24psi). Do not over inflate. RB70 Owners Manual www.truturf.com... -
Page 15: Standard Operation Procedures
You should be able to to ensure there are no crease lines produced on complete the rolling of 18 greens in the same the surface. time or quicker than by mowing using a triplex mower on a single charge. RB70 Owners Manual www.truturf.com... - Page 16 When towing forwards or reversing, be sure that the roller is not put into a jack- knifed position, if it is, then damage to the pin hitch will occur. RB70 Owners Manual www.truturf.com...
-
Page 17: Points To Remember
• Roll in straight lines. • Move off the green when rolling is complete before putting the trailer in the down position. RB70 Owners Manual www.truturf.com... -
Page 18: Maintenance Schedule
Check smoothing roller bearing √ √ √ Check drive roller bearings √ √ √ Check for loose nuts and bolts √ √ Renew smoothing roller bearings √ Renew drive roller bearings √ Replace trailer strut as required RB70 Owners Manual www.truturf.com... -
Page 19: Maintenance
• It is important to store this roller in the towing position. This ensures the trailer strut is in the closed position, protecting the shaft from corrosion, then failure and also the weight is taken Sling here off the roller and bearings. (around pivot axle) RB70 Owners Manual www.truturf.com... - Page 20 (b) Remove roller shaft bolts from end plates, remove rollers from the heads. RB70 Owners Manual www.truturf.com...
-
Page 21: Safety & Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. www.truturf.com RB70 Golf Greens Roller Model: Serial No. Manufactured date ##/#### RB70-##### Revision •... -
Page 22: Operating Positions
Operating Positions Towing position Rolling position RB70 Owners Manual www.truturf.com... -
Page 23: Components
E7175 WELDMENT, RUBBER DRIVE ROLLER HALF R8051 WASHER, SPRING, ZP - 5/16" R8064 BOLT, HEX, ZP - 5/16" UNF x 1" LG PART NUMBER: E7034 REVISION: N DATE: 10/06/2020 BY: SP PART NUMBER: E7034 REVISION: N RB70 Owners Manual www.truturf.com... - Page 24 BOLT, HEX, ZP - 3/8" UNF x 2" LG R8208 SCREW, GRUB, CUP POINT - M8 x 16 R9112 KEY, STEEL, 8x8x47 PART NUMBER: E7285 REVISION: B DATE: 01/09/2020 BY: SP PART NUMBER: E7285 REVISION: B RB70 Owners Manual www.truturf.com...
- Page 25 CIRCLIP INTERNAL D1300-50 R8978 WELDMENT, STEERING BOSS BRACKET R8981 PIN, STEERING BOSS R8982 WELDMENT, PIVOT ARM R9452 BOLT, HEX HD, 1/2" X 2.75 UNC PART NUMBER: R8977 REVISION: E DATE: 02/10/2020 BY: SP PART NUMBER: R8977 REVISION: E RB70 Owners Manual www.truturf.com...
- Page 26 1/4" UNF NYLOC NUT, (TYPE T), ZP R9312 WELDMENT, CENTRAL STEERING HEAD R9421 ASSEMBLY, BEARING HOUSING, NODULE RS2050 SMOOTHING ROLLER, LONG, COMPLETE ASSY RS2055 ASSEMBLY, NODULE SWEEPER PART NUMBER: R9310 REVISION: B DATE: 23/12/2020 BY: SP PART NUMBER: R9310 REVISION: B RB70 Owners Manual www.truturf.com...
- Page 27 1/4" UNF NYLOC NUT, (TYPE T), ZP R9313 WELDMENT, OUTER STEERING HEAD R9421 ASSEMBLY, BEARING HOUSING, NODULE RS2050 SMOOTHING ROLLER, LONG, COMPLETE ASSY RS2055 ASSEMBLY, NODULE SWEEPER PART NUMBER: R9311 REVISION: B DATE: 23/12/2020 BY: SP PART NUMBER: R9311 REVISION: B RB70 Owners Manual www.truturf.com...
- Page 28 ITEM PART NUMBER DESCRIPTION R8287 LINK, ROD END - 1/2" UNF x 137 CRS R8987 ROD, THREADED, STEERING, 1/2" UNF RB70 Owners Manual R8285 ROD END, FEMALE - 1/2"UNF (ALINABAL) www.truturf.com R9330 - PARTS LIST R9316 - PARTS LIST R8101 1/2"...
- Page 29 MUST BE CORRECTLY TIGHTENED TO 47 ft-lbs OR 63.7 Nm. IF NOT THE DRAWBAR CAN BECOME LOOSE AND THE HOLES WILL WEAR MAKING IT DANGEROUS WHEN TOWING OR RAISING / LOWERING THE TRAILER. PART NUMBER: R9342 REVISION: A RB70 Owners Manual www.truturf.com...
- Page 30 ENGINE, HONDA, GX200, 2:1 REDUCTION R9155 J-CLIP, VINYL, 5/16" X 9/32" R9156 DOUBLE TUBE CLAMP, 5/16" X 13/32" X 11/16" T39072 SHIM, ADJUSTING, ENGINE MOUNT PART NUMBER: R9427 REVISION: A DATE: 28/12/2020 BY: SP PART NUMBER: R9427 REVISION: A RB70 Owners Manual www.truturf.com...
- Page 31 M8 NYLOC NUT, ZP R9085 KEY, OUTPUT SHAFT, EATON 11 R9358 ASSEMBLY, GAS STRUT T39478 SPACER, PEDAL STRUT, YOKE TRANSMISSION PART NUMBER: RS2061 REVISION: F DATE: 29/12/2020 BY: SP PART NUMBER: RS2061 REVISION: F PART NUMBER: RS2061 REVISION: F RB70 Owners Manual www.truturf.com...
- Page 32 R8048 3/8" X 3/4" FLAT WASHER, ZP R8055 3/8" UNF NYLOC NUT, ZP R8293 PIN, ROLL, SPRING, ZP - M5 x 24 LG PART NUMBER: R5251_1 REVISION: B DATE: BY: SP RB70 Owners Manual www.truturf.com PART NUMBER: R5251_1 REVISION: B...
- Page 33 3/8" X 3/4" FLAT WASHER, ZP R8055 3/8" UNF NYLOC NUT, ZP R8293 PIN, ROLL, SPRING, ZP - M5 x 24 LG PART NUMBER: R5251 REVISION: B DATE: 28/12/2020 BY: SP PART NUMBER: R5251 REVISION: B RB70 Owners Manual www.truturf.com...
- Page 34 BOLT, HEX, ZP, 3/8" UNF x 2.75" LG. PART NUMBER: RS2401 RS2402 WELDMENT, DECK R8260 RIVET, BLK, 5-4 REVISION: D RS2413 PLATE, SERIAL NUMBER, RB70 R8677 FLAT HEAD SOCKET SCREW, 5/16" UNF x 1/2" LG, ZP DATE: 28/12/2020 RS2414 DECAL, MODEL ID BY: SP R8833 FLAT HEAD SOCKET SCREW, 1/2"...
- Page 35 PART NUMBER DESCRIPTION R9427 ASSEMBLY, ENGINE MOUNT, GX200 RS2155 DRAIN HOSE - HONDA ENGINE GX200 RS2418 ASSEMBLY, HYDRAULIC DRIVE RS2419 ASSEMBLY, DRIVE COUPLING PART NUMBER: RS2410 REVISION: C DATE: 02/10/2020 BY: SP PART NUMBER: RS2410 REVISION: C RB70 Owners Manual www.truturf.com...
- Page 36 TUBE, DRIVE OUT - TANK IN R8930 OIL LEVEL SITE GLASS RS2061 ASSEMBLY,TRANSMISSION UNIT RS2417 WELDMENT, HYD TANK PART NUMBER: RS2418 REVISION: C DATE: 28/12/2020 BY: SP PART NUMBER: RS2418 REVISION: C PART NUMBER: RS2418 REVISION: C RB70 Owners Manual www.truturf.com...
- Page 37 5/16" UNF NYLOC NUT, ZP R8065 5/16" UNF X 1-1/2" BOLT, ZP R8079 5/16" UNF X 5/16" GRUB SCREW, BLK R8134 6-6 RIVET, ALUMINIUM PART NUMBER: RS2419 REVISION: A DATE: 28/12/2020 BY: SP PART NUMBER: RS2419 REVISION: A RB70 Owners Manual www.truturf.com...
- Page 38 M8 NYLOC NUT, ZP R8365 MISCO SEAT ALL PVC WITH ARMS MSC R8497 4-8 RIVET, ALUMINIUM RS2421 WELDMENT, FRAME, SEAT RS2422 WELDMENT, SEAT BASE PART NUMBER: RS2420 REVISION: E DATE: 23/12/2020 BY: SP PART NUMBER: RS2420 REVISION: E RB70 Owners Manual www.truturf.com...
- Page 39 R8060 1/2" UNC NYLOC NUT, ZP R8070 3/8" UNF X 1-1/2" SET SCREW, ZP R8989 WELDMENT, STEERING ARM RS2007 JOYSTICK, WELDED, ASSY PART NUMBER: RS2471 REVISION: F DATE: 23/12/2020 BY: SP PART NUMBER: RS2471 REVISION: F RB70 Owners Manual www.truturf.com...
- Page 40 GUARD, PIVOT BEAM, LH R9320 GUARD, PIVOT BEAM, RH R9324 WELDMENT, LINK PLATE, STEERING R9330 ASSEMBLY, STABILISER ROD R9447 WELDMENT, SCRATCH GUARD PART NUMBER: RS2472 REVISION: D DATE: 28/12/2020 BY: SP PART NUMBER: RS2472 REVISION: D RB70 Owners Manual www.truturf.com...
