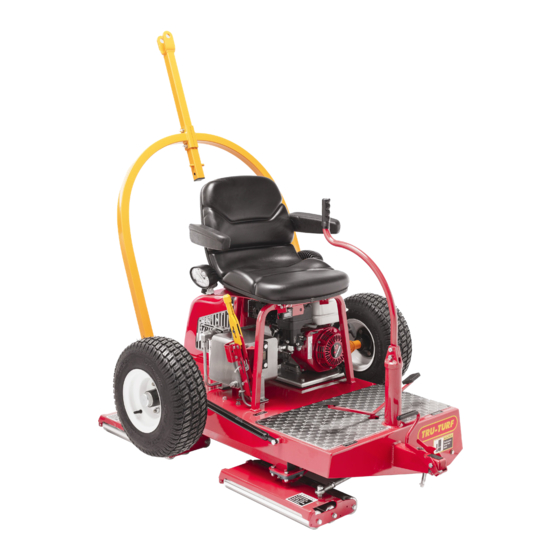

- Page 1 OWNERS MANUAL RC50 GOLF GREENS ROLLER Results through design; not weight. RC50 Owners Manual www.truturf.com...
-
Page 2: Table Of Contents
Assembly .................8 Pre-Operation Checklist ..........12 Standard Operation Procedures ........13 Points To Remember ...........15 Maintenance Schedule ..........16 Separate Engine Owners Manual can be Maintenance ..............17 downloaded from www.truturf.com Safety & Instructional Decals ........19 Operating Positions .............20 Components ..............21 RC50 Owners Manual www.truturf.com... -
Page 3: Machine Information Record
Green Roller and your move to smoother, faster, Distributor Information more consistent putting Greens. Name: Address: The following operation and maintenance manual has been prepared for use with the RC50 Golf Green Telephone: Roller. Fax: Email: It is intended as a guide and supplemental updates to the manual may take place at a future date, without prior notice. -
Page 4: Specifi Cations
Optional Equipment Lights & Drawbar coupling Steering Joystick - Light load, directly connected to smoothing heads Warranty 2 years - Limited manufacturers warranty Vibration Reduced through engine isolation mounts Seat Premium UV protected, with adjustable arm rests RC50 Owners Manual www.truturf.com... -
Page 5: Safety Information
To ensure safe operation of the RC50 Golf Greens Roller, please follow the following safety guidelines. • When transporting the roller or carrying out main- tenance, make sure the trailer lock down mech- •... - Page 6 Always stop engine before opening safety cover. • Never ride on the machine when machine is being towed. Operator: remember it is your responsibility to be aware of your surroundings. To avoid accidents, think safe and operate safe. RC50 Owners Manual www.truturf.com...
-
Page 7: Warranty
Warranty Conditions and Products Covered Tru-Turf Service Department Tru-Turf warrant your Tru-Turf Roller to be free from Tru-Turf Pty Ltd defects in materials or workmanship for two years 6/8 Technology Drive or 1550 operational hours*, whichever occurs fi rst. Arundel, Qld 4214 This warranty is applicable to all products. - Page 8 Tru-Turf. Tru- • Normal noise, vibration, wear and tear, and Turf will make the fi nal decision whether to repair deterioration. any existing part or assembly or replace it. Tru-Turf may use remanufactured parts for warranty repairs. RC50 Owners Manual www.truturf.com...
- Page 9 Note Regarding Deep Cycle Battery Warranty: consequential damages in connection with the use Deep cycle batteries have a specifi ed total number of the Tru-Turf Products covered by this warranty, of kilowatt-hours they can deliver during their including any cost or expense of providing substitute lifetime.
-
Page 10: Assembly
Tires mounted on Wheel Rim Steering Joystick Dampener Strut (attached to main body end) Left-side Trailer Arm Right-side Trailer Arm 30mm External Circlips Drawbar Coupling Assembly 3/8” x 11/2” UNF ZP Bolts 3/8” UNF Nyloc Nuts RC50 Owners Manual www.truturf.com... - Page 11 fi t the circlip, ensuring it is located in the • Locate the trailer arm support axle 30mm in groove correctly. diameter (1 1/4”) which extends out on the left side of the machine, remove the circlip from the support axle. Grease the machined portion. RC50 Owners Manual www.truturf.com...
- Page 12 (do not use excessive force) the low P.S.I. until the trailer arms will travel no further. • Remove wheel nuts from both hubs, slide wheels onto hub with air valves facing outwards. Replace wheel nuts and tighten securely. RC50 Owners Manual www.truturf.com...
- Page 13 Step 8: Lubricate smoothing head pivot bearings. • There is a grease nipple or zirk located on the 3 smoothing head centre ball joint swivels. Apply grease to lubricate fi ttings. RC50 Owners Manual www.truturf.com...
-
Page 14: Pre-Operation Checklist
Grease lightly bearings fi tted to drive roller, spiker shaft (if fi tted) and Smoothing Head pivot bearings. Replace plastic caps if missing. Oil rod ends, sparingly. Check tire pressure for proper operating pressure (18-24psi). Do not over infl ate. RC50 Owners Manual www.truturf.com... -
Page 15: Standard Operation Procedures
You should be able to to ensure there are no crease lines produced on complete the rolling of 18 greens in the same the surface. time or quicker than by mowing using a triplex mower on a single charge. RC50 Owners Manual www.truturf.com... - Page 16 fi tted on the roller draw bar hitch. b). When towing forwards or reversing, be sure that the roller is not put into a jack- knifed position, if it is, then damage to the pin hitch will occur. RC50 Owners Manual www.truturf.com...
-
Page 17: Points To Remember
• Roll in straight lines. • Move off the green when rolling is complete before putting the trailer in the down position. RC50 Owners Manual www.truturf.com... -
Page 18: Maintenance Schedule
Check smoothing roller bearing √ √ √ Check drive roller bearings √ √ √ Check for loose nuts and bolts √ √ Renew smoothing roller bearings √ Renew drive roller bearings √ Replace trailer strut as required RC50 Owners Manual www.truturf.com... -
Page 19: Maintenance
• It is important to store this roller in the towing position. This ensures the trailer strut is in the closed position, protecting the shaft from corrosion, then failure and also the weight is taken Sling here off the roller and bearings. (around pivot axle) RC50 Owners Manual www.truturf.com... - Page 20 (b) Remove roller shaft bolts from end plates, remove rollers from the heads. RC50 Owners Manual www.truturf.com...
-
Page 21: Safety & Instructional Decals
• Read and understand manual • Check roller bearings regularly, before operating roller. replace if worn. R6057 - Tru-Turf Logo Decal • Check belt tension or lubricate • Use recommended oil in the chain if fitted prior to use. transmission. -
Page 22: Operating Positions
Operating Positions Towing position Rolling position RC50 Owners Manual www.truturf.com... -
Page 23: Components
WELDMENT, DECK PART NUMBER: R9520 R9523 PLATE, FOOT PAD REVISION: A R9524 DECAL, MODEL ID R9525 PLATE, SERIAL NUMBER, RC50 RS2025 FOOT PEDAL ASSY RS2078 ROLLER CHAIN 08B-2 RS2117 CATCH, WIDE, FOLDED, TRAILER DRAWBAR RS2123 ASSEMBLY, HANDBRAKE LEVER WITH SWITCH... - Page 24 1/4" UNF X 3/4" FLAT HEAD SOCKET SCREW, ZP RS2050 SMOOTHING ROLLER, LONG, COMPLETE ASSY RS2051 WELDMENT, STEERING HEAD, FRONT RS2055 ASSEMBLY, NODULE SWEEPER PART NUMBER: RS2052 REVISION: H DATE: 12/02/2021 BY: SP PART NUMBER: RS2052 REVISION: H RC50 Owners Manual www.truturf.com...
- Page 25 ASSEMBLY, STEERING HEAD, FRONT RS2054 ASSEMBLY, STEERING HEAD, REAR RS2059 CAP, SHS END, PLASTIC, BLACK - 1.5" SQ. RS2060 ASSEMBLY, TIE ROD ASSY, 1/2" UNF PART NUMBER: RS2062 REVISION: E DATE: 12/02/2021 BY: SP PART NUMBER: RS2062 REVISION: E RC50 Owners Manual www.truturf.com...
- Page 26 ASSEMBLY, BEARING HOUSING, NODULE R9526 1/4" UNF X 3/4" FLAT HEAD SOCKET SCREW, ZP RS2050 SMOOTHING ROLLER, LONG, COMPLETE ASSY RS2053 WELDMENT, STEERING HEAD, REAR PART NUMBER: RS2054 REVISION: J DATE: 12/02/2021 BY: SP PART NUMBER: RS2054 REVISION: J RC50 Owners Manual www.truturf.com...
- Page 27 E7175 WELDMENT, RUBBER DRIVE ROLLER HALF R8051 WASHER, SPRING, ZP - 5/16" R8064 BOLT, HEX, ZP - 5/16" UNF x 1" LG PART NUMBER: E7034 REVISION: N DATE: 10/06/2020 BY: SP PART NUMBER: E7034 REVISION: N RC50 Owners Manual www.truturf.com...
- Page 28 BOLT, HEX, ZP - 3/8" UNF x 2" LG R8208 SCREW, GRUB, CUP POINT - M8 x 16 R9112 KEY, STEEL, 8x8x47 PART NUMBER: E7285 REVISION: B DATE: 01/09/2020 BY: SP PART NUMBER: E7285 REVISION: B RC50 Owners Manual www.truturf.com...
- Page 29 ENGINE, HONDA, GX200, 2:1 REDUCTION R9155 J-CLIP, VINYL, 5/16" X 9/32" R9156 DOUBLE TUBE CLAMP, 5/16" X 13/32" X 11/16" T39072 SHIM, ADJUSTING, ENGINE MOUNT PART NUMBER: R9427 REVISION: A DATE: 28/12/2020 BY: SP PART NUMBER: R9427 REVISION: A RC50 Owners Manual www.truturf.com...
- Page 30 M8 NYLOC NUT, ZP R9085 KEY, OUTPUT SHAFT, EATON 11 R9358 ASSEMBLY, GAS STRUT T39478 SPACER, PEDAL STRUT, YOKE TRANSMISSION PART NUMBER: RS2061 REVISION: F DATE: 29/12/2020 BY: SP PART NUMBER: RS2061 REVISION: F PART NUMBER: RS2061 REVISION: F RC50 Owners Manual www.truturf.com...
- Page 31 ARM, CHAIN TENSION, WELDED, ASSY R8048 3/8" X 3/4" FLAT WASHER, ZP R8055 3/8" UNF NYLOC NUT, ZP R8293 PIN, ROLL, SPRING, ZP - M5 x 24 LG PART NUMBER: R5251_1 REVISION: B DATE: BY: SP RC50 Owners Manual www.truturf.com...
- Page 32 ARM, CHAIN TENSION, WELDED, ASSY R8048 3/8" X 3/4" FLAT WASHER, ZP R8055 3/8" UNF NYLOC NUT, ZP R8293 PIN, ROLL, SPRING, ZP - M5 x 24 LG PART NUMBER: R5251 REVISION: B DATE: 28/12/2020 BY: SP RC50 Owners Manual www.truturf.com...
- Page 33 PART NUMBER DESCRIPTION R9427 ASSEMBLY, ENGINE MOUNT, GX200 RS2155 DRAIN HOSE - HONDA ENGINE GX200 RS2418 ASSEMBLY, HYDRAULIC DRIVE RS2419 ASSEMBLY, DRIVE COUPLING PART NUMBER: RS2410 REVISION: C DATE: 02/10/2020 BY: SP PART NUMBER: RS2410 REVISION: C RC50 Owners Manual www.truturf.com...
- Page 34 TUBE, DRIVE OUT - TANK IN R8930 OIL LEVEL SITE GLASS RS2061 ASSEMBLY,TRANSMISSION UNIT RS2417 WELDMENT, HYD TANK PART NUMBER: RS2418 REVISION: C DATE: 28/12/2020 BY: SP PART NUMBER: RS2418 REVISION: C PART NUMBER: RS2418 REVISION: C RC50 Owners Manual www.truturf.com...
- Page 35 5/16" UNF NYLOC NUT, ZP R8065 5/16" UNF X 1-1/2" BOLT, ZP R8079 5/16" UNF X 5/16" GRUB SCREW, BLK R8134 6-6 RIVET, ALUMINIUM PART NUMBER: RS2419 REVISION: A DATE: 28/12/2020 BY: SP PART NUMBER: RS2419 REVISION: A RC50 Owners Manual www.truturf.com...
- Page 36 1/2" UNC NYLOC NUT, ZP R8070 3/8" UNF X 1-1/2" SET SCREW, ZP R8101 1/2" UNF NYLOC NUT, ZP RS2007 JOYSTICK, WELDED, ASSY RS2019 ARM, STEERING, WELDED, ASSY - 1/2" UNF PART NUMBER: RS2020 REVISION: B DATE: 11/02/2021 BY: SP RC50 Owners Manual www.truturf.com...
- Page 37 3/8" UNF X 1-1/4" SET SCREW, ZP RS2027 ARM, WELDED, TRANS SELECTOR, FOOT PEDAL RS2196 PEDAL, FOOT PEDAL, SHORT, WELDED, ASSY TRI608 SHAFT, FOOT PEDAL PART NUMBER: RS2025 REVISION: D DATE: 11/08/2021 BY: SP PART NUMBER: RS2025 REVISION: D RC50 Owners Manual www.truturf.com...
- Page 38 M8 NYLOC NUT, ZP R8365 MISCO SEAT ALL PVC WITH ARMS MSC R8497 4-8 RIVET, ALUMINIUM RS2421 WELDMENT, FRAME, SEAT RS2422 WELDMENT, SEAT BASE PART NUMBER: RS2420 REVISION: E DATE: 23/12/2020 BY: SP PART NUMBER: RS2420 REVISION: E RC50 Owners Manual www.truturf.com...
- Page 39 MUST BE CORRECTLY TIGHTENED TO 47 ft-lbs OR 63.7 Nm. IF NOT THE PART NUMBER: R9590 DRAWBAR CAN BECOME LOOSE AND THE HOLES WILL WEAR REVISION: A MAKING IT DANGEROUS WHEN TOWING OR RAISING / LOWERING THE TRAILER. RC50 Owners Manual www.truturf.com...
