Quick Card

FiberChek Sidewinder™ Fiber Microscope

LC Fiber Inspection with the FCPT-LC tip

This quick card describes how to use the FiberChek Sidewinder Fiber Inspection Probe Microscope to

inspect a Ribbon MPO fiber end face.

Equipment Requirements:

• FiberChek Sidewinder Probe Fiber Inspection Microscope

• FCPT-LC Inspection Tip

• LC Coupler/Mating Adapter

• Fiber optic cleaning tools

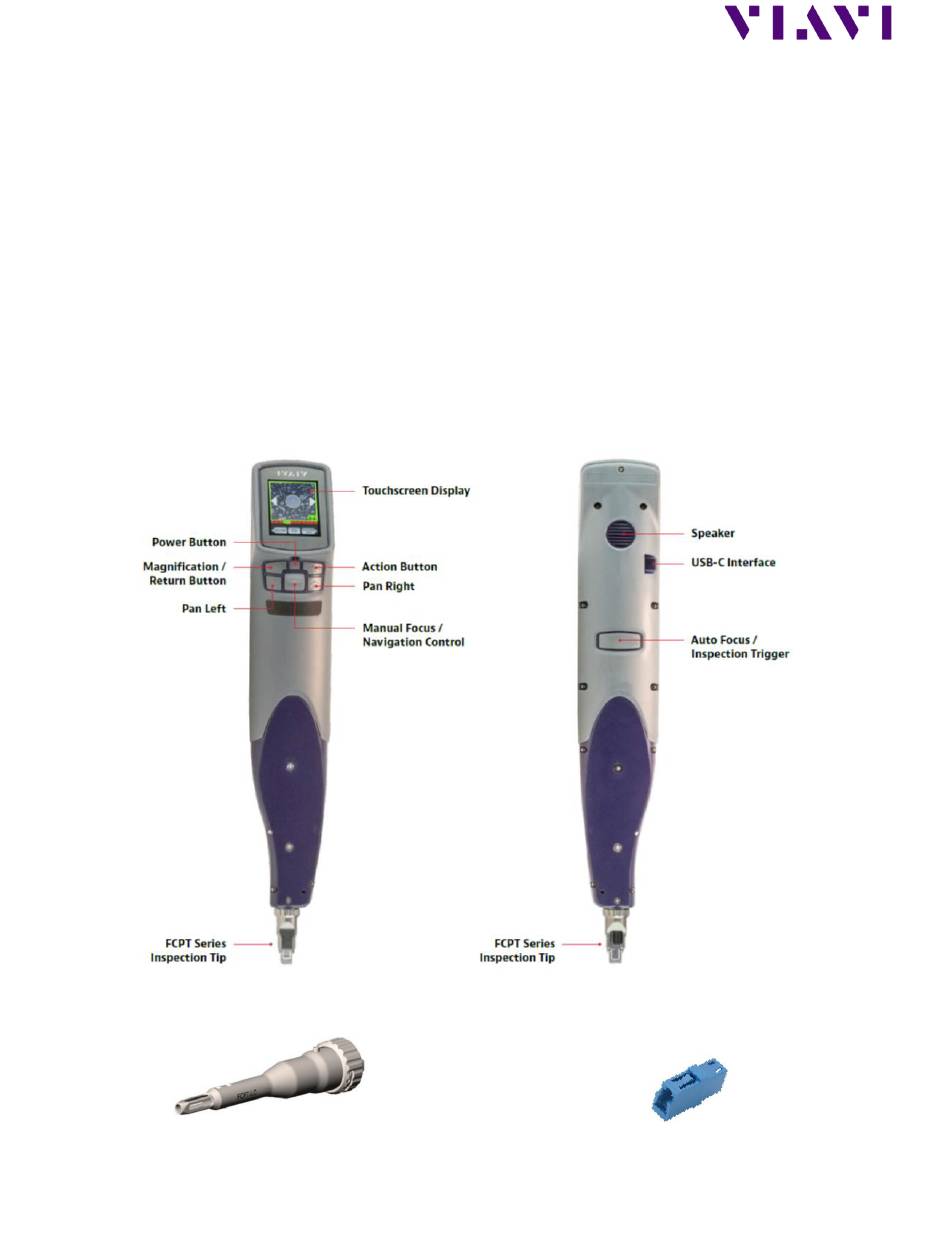

Figure 2: MPO Tip, Multimode

(VIAVI Part# FCPT-LC)

Figure 1: FiberChek Sidewinder Fiber Inspection Probe Microscope

VIAVI Solutions

Figure 3: LC Coupler

Need help?

Do you have a question about the FiberChek Sidewinder and is the answer not in the manual?

Page 1 Quick Card FiberChek Sidewinder™ Fiber Microscope LC Fiber Inspection with the FCPT-LC tip This quick card describes how to use the FiberChek Sidewinder Fiber Inspection Probe Microscope to inspect a Ribbon MPO fiber end face. Equipment Requirements: • FiberChek Sidewinder Probe Fiber Inspection Microscope •...
Page 2 VIAVI Solutions Set up the FiberChek Sidewinder Microscope for PASS/FAIL analysis: 1. Press the Power Button to turn on the FiberChek Sidewinder. 2. From the Live Inspection View, tap the Touchscreen Display to enter the Settings Menu. 3. Select CONNECTOR SETUP using the Navigation Control 4.
Page 3 VIAVI Solutions Swap Tips: If a different tip is currently installed on the Sidewinder: • Press the Power Button to turn off the unit. • Swap the tip by loosening the retaining nut at the base of the tip. • Press the Power Button to turn on the unit.
Page 4 Figure 18: Saving Results Figure 19: Saved Results © 2021 VIAVI Solutions Inc. Contact Us +1 844 GO VIAVI To reach the VIAVI office nearest you, Product specifications and descriptions in this (+1 844 468 4284) visit viavisolutions.com/contacts. document are subject to change without notice.
