Quick Card
P5000i Fiber Microscope
Fiber Inspection on the T-BERD®/MTS-2000 Test Set
This quick card describes how to use the VIAVI P5000i Fiber Inspection Microscope to inspect a simplex
fiber end face.

Equipment Requirements:

•
T-BERD/MTS-2000 or SmartOTDR with Fiber Optics Software
Release V16.22
or greater
• P5000i Probe Fiber Inspection Microscope
• Bulkhead and Patch Cord Tips matching the Fiber Under Test.
•
Fiber optic cleaning tools
•
The following information is required to complete the test:
o Type of Fiber (Multimode or Single Mode)
• Type of Connectors (
• Type of Inspection Tips (See Figure 1):
o Standard Patch Cord Tip (FBPT-U12M, FBPT-U25M, FBPT-U25MA, etc.)
o Standard Bulkhead tip (FBPT-SC, FBPT-SC-APC, FBPT-LC, etc.)
o Long Reach Bulkhead tip (FBPT-LC-L, FBPT-SC-L, etc.)
o Angled Bulkhead Tip (FBPT-LC-A6S, FBPT-SC-A6, etc.)
SC UPC, SC APC, LC UPC, etc.)

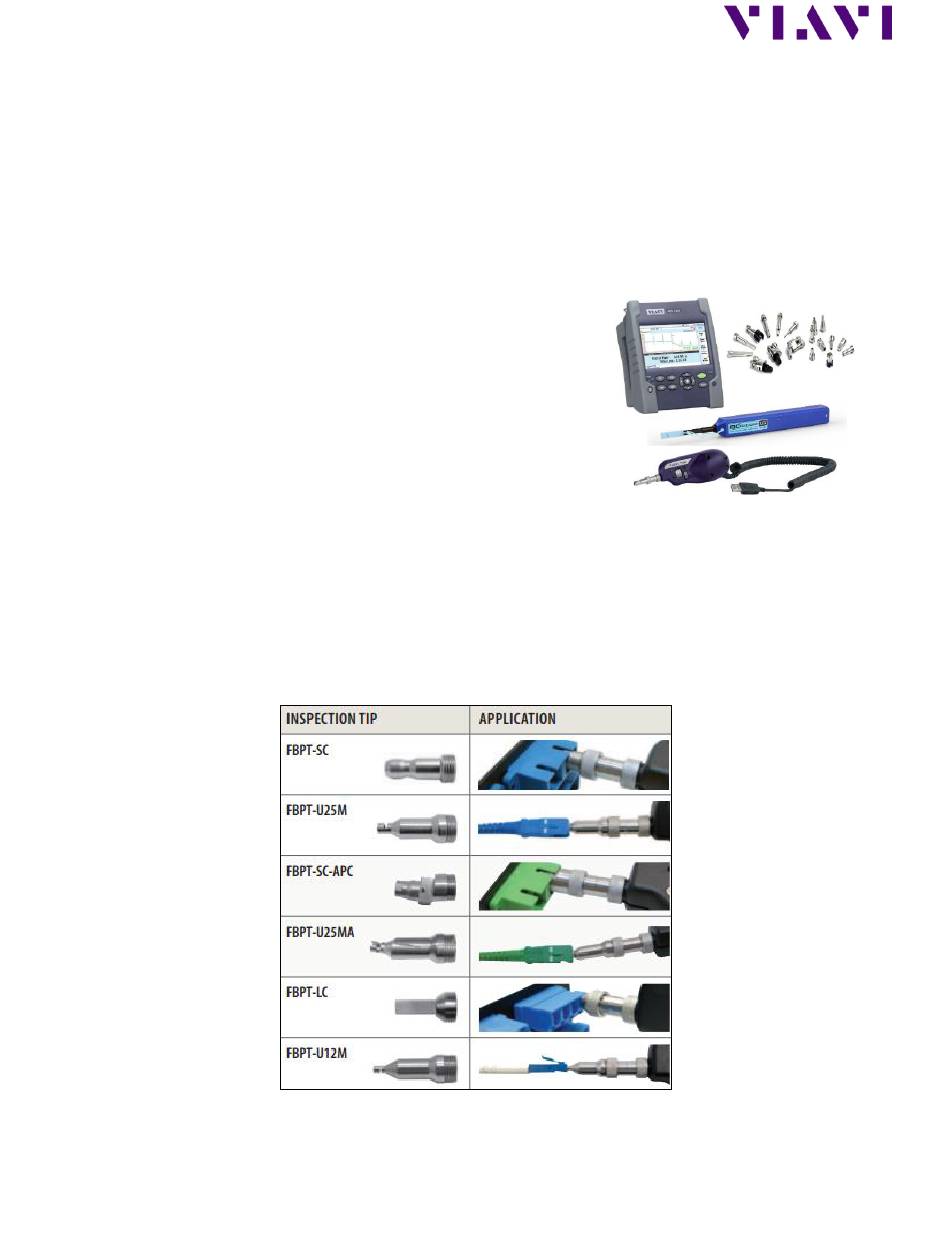

Figure 1: Commonly Used "Standard" Inspection Tips
VIAVI Solutions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P5000i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viavi P5000i

Summary of Contents for Viavi P5000i

  • Page 1 VIAVI Solutions Quick Card P5000i Fiber Microscope Fiber Inspection on the T-BERD®/MTS-2000 Test Set This quick card describes how to use the VIAVI P5000i Fiber Inspection Microscope to inspect a simplex fiber end face. Equipment Requirements: • T-BERD/MTS-2000 or SmartOTDR with Fiber Optics Software Release V16.22...
  • Page 2 Figure 3: T-BERD/MTS-2000 Top View Setting Up Pass/Fail Analysis: 1. Connect the P5000i USB Connector to a USB port on the top of the test set. 2. Connect the appropriate patch cord or bulkhead Inspection Tip to the P5000i Fiber Inspection Microscope by loosening and tightening the Retaining Nut on the P5000i Fiber Probe Barrel Assembly.
  • Page 3 ▪ Simplex Long Reach (-L) Tips for Long Reach Inspection Tips (i.e. FBPT-LC-L, FBPT-SC-L) ▪ For other types of inspection tips, connect the P5000i to FiberChekPRO™ on a PC and move the appropriate tip setting onto the probe microscope. For more information, consult the FiberChekPRO user manual. To download FiberChekPRO to your PC, visit http://fcpro.updatemyunit.net/.
  • Page 4 1. Insert the Bulkhead Inspection Tip into the bulkhead or insert the Patch Cord ferrule into the Patch Cord Inspection tip on the P5000i Microscope Probe. Adjust the Focus Control wheel of the P5000i microscope to focus the optical fiber. The left vertical bar on the screen indicates the level of focus adjustment. The higher the level, the better the focus.
