Quick Card
FiberChek™ Probe
Fiber Inspection with Pass/Fail Analysis

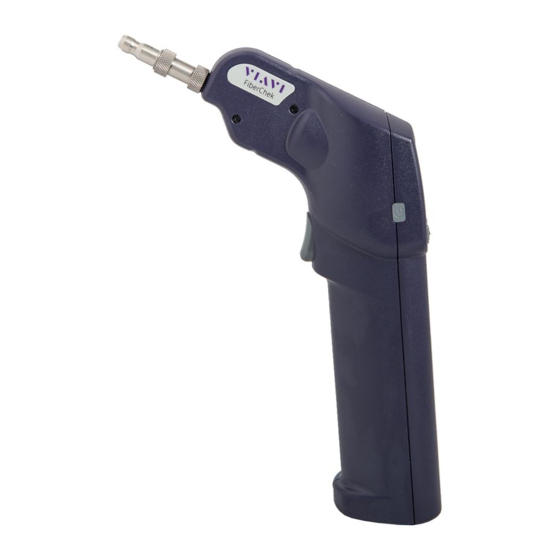

The following procedure outlines how to use the VIAVI FiberChek Probe Fiber Inspection Microscope to
inspect a simplex fiber end face.

Equipment Requirements:

• FiberChek Probe Fiber Inspection Microscope
• Bulkhead and Patch Cord Tips matching the fiber under test
• Fiber optic cleaning tools
The following information is required to complete the test:
• Type of Fiber:
o Multimode or Single Mode
• Type of Connectors:
o SC UPC, SC APC, LC UPC, etc.
• Type of Inspection Tip(s):
o Standard Patch Cord tip
(FBPT-U12M, FBPT-U25M, FBPT-U25MA, etc.)
o Standard Bulkhead tip
(FBPT-SC, FBPT-SC-APC, FBPT-LC, etc.)
o Long Reach Bulkhead tip
(FBPT-LC-L, FBPT-SC-L, etc.)
o Angled Bulkhead Tip
(FBPT-LC-A6S, FBPT-SC-A6, etc.)

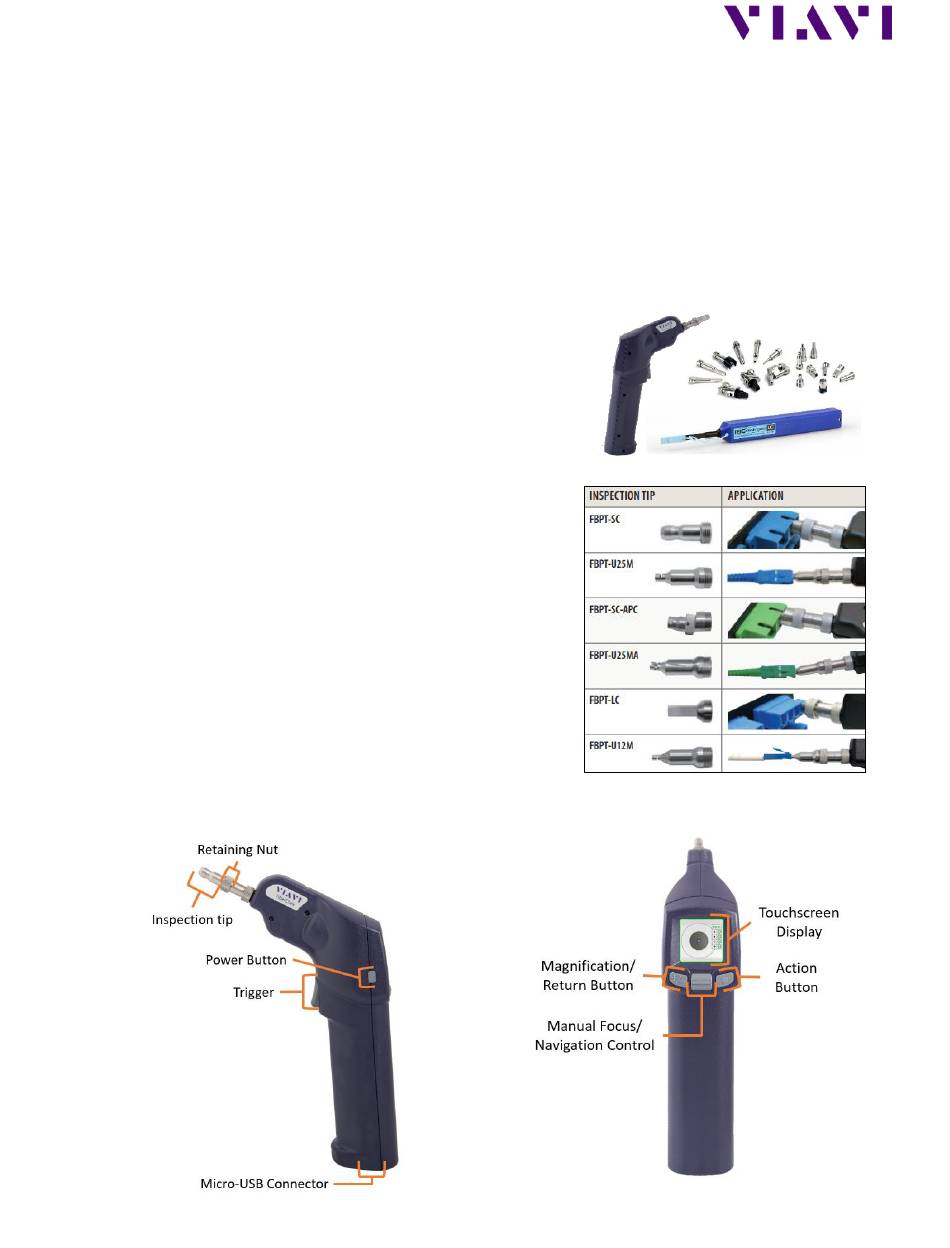

Figure 2: FiberChek Probe, Side view
Figure 1: Commonly Used "Standard" Inspection Tips
Figure 3: FiberChek Probe, Front view
VIAVI Solutions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FiberChek and is the answer not in the manual?

Questions and answers

Summary of Contents for Viavi FiberChek

  • Page 1 VIAVI Solutions Quick Card FiberChek™ Probe Fiber Inspection with Pass/Fail Analysis The following procedure outlines how to use the VIAVI FiberChek Probe Fiber Inspection Microscope to inspect a simplex fiber end face. Equipment Requirements: • FiberChek Probe Fiber Inspection Microscope •...
  • Page 2 1. Insert the Bulkhead Inspection tip into the bulkhead or insert the Patch Cord ferrule into the Patch Cord Inspection tip on the FiberChek Probe. 2. Press the Trigger of the FiberChek microscope to auto-focus the fiber under test. Press the Trigger again and hold for 2 seconds to perform PASS/FAIL analysis. FiberChek will briefly display the analysis result and enter the Analysis Result View.
